ceramic rotary disc gatPneumatic Ceramic Rotary Gate Valve,Pneumatic Ceramic Lined Rotary Gate Valve
Price: | US$ 1200 / Set |
---|---|
Minimum Order: | 1 |
Payment Terms: | TT,LC |
Port of Export: | Shanghai |
Product Details
Model No.: | FRZ643TC | Brand Name: | FREE-VALVE |
---|
Certification: | |
---|---|
Specification: |
1) Size Range: NPS4~NPS12,DN100~DN300 2) Pressure Range: Class 150 /PN6 /PN10 3) Applicable Temperature: 0~200℃ 4) Connection Type: Flange 5) Sealing material: engineering ceramics 6) Pressure test:GB/T13927, API598 7) Face to Face: GB/T12221, API609 8) Valve body : GB/T12224,ASME B16.34 Operating Mode: Pneumatic |
Packaging & Delivery
Packaging: | wooden box |
---|---|
Delivery/Lead Time: | 30 DAYS |
Production Capacity: | 150set/month |
Product Description

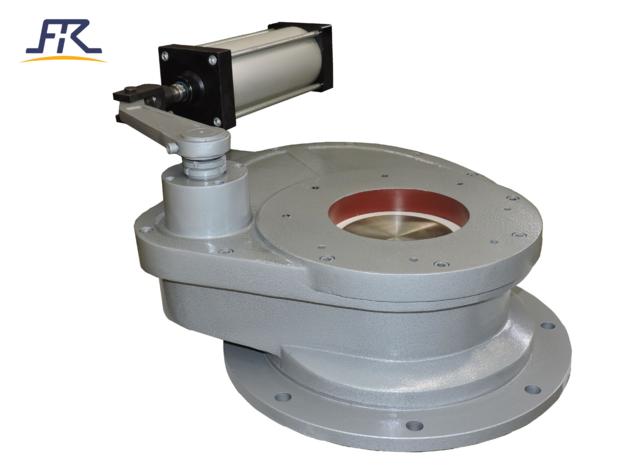

FREE-Valve’s Pneumatic Rotating Type Ceramic Gate Valves are designed for pressurized and vacuum systems including dense and dilute phase pneumatic conveying systems, discharge and vent applications in steel plant and coal power. The whole of ceramic sealing faces of the valves are well ground and polished, which is ensure a reliable sealing performance of the valve. Features
1. The valves are sturdy and maintenance free enough to withstand the most severe conditions.
2.The sealing faces of the valve are made of toughened engineering ceramics with good abrasion resistance and prolonged service life.
3.Product with customized structural length and connection size is available.
4.The valve plate rotational motion of the valve disc can avoid the ash deposition on the sealing surface, so the valves have much longer service.
5.The rotation structure with shorter stroke makes and the whole of ceramic sealing faces of the valves, which are ensure a reliable sealing performance of the valve.
Application:

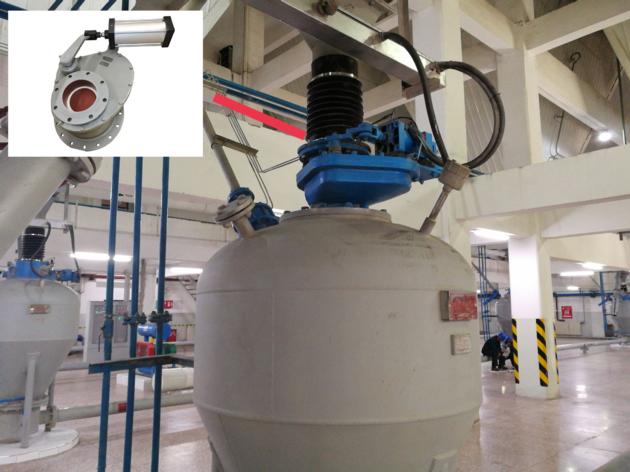

FREE-Valve’s Pneumatic Rotating Type Ceramic Gate Valves is suitable for coal fired power plant, steel plant, cereals transport system, cement transport systems. In these applications, pneumatic conveying method is used to reduce manpower demand, and improve system efficiency and reliability, and is easy to realize automation.
