adjustable temperature switch 12v
| Price: | US$ 0.5 / Piece |
|---|---|
| Minimum Order: | 1000 |
| Payment Terms: | TT |
| Port of Export: | Shen zhen |
Product Details
| Model No.: | OEM | Brand Name: | KST |
|---|
| Certification: | UL,VDE |
|---|---|
| Specification: |
1. Electrical parameters: 16A 250V ~; 20A 125V ~;
2. Operating temperature range: 0 ℃ ~ 250 ℃ optional; 3. Electrical strength: 2000V ~ 1min no breakdown, reliable product action altogether, do not pull the arc, long life, low radio interference, temperature control accurate; 4. Contact resistance: ≤50mΩ; 5. Insulation resistance: ≥5MΩ; 6. Leakage current: ≤0.25mA; 7. Rotary axis: torque 1.5N · m or more, the initial value of the test temperature within ¯ 1 ℃; 7. Life: 100,000 cycles; 8. Thermostat axis rotation angle: 0 ® to 310 ® optional; 9. Terminals: according to the actual needs of the customer ac households have 0.8 and 6.3 * 4.8 * 0.8, etc. in line with the national standard selection of terminals. 10. The UL.CUL, VDE, CE, TUV, CEMC, ROHS |
Packaging & Delivery
| Packaging: | Carton |
|---|---|
| Delivery/Lead Time: | 7 DAY |
| Production Capacity: | 1000000000 |
Product Description
certification

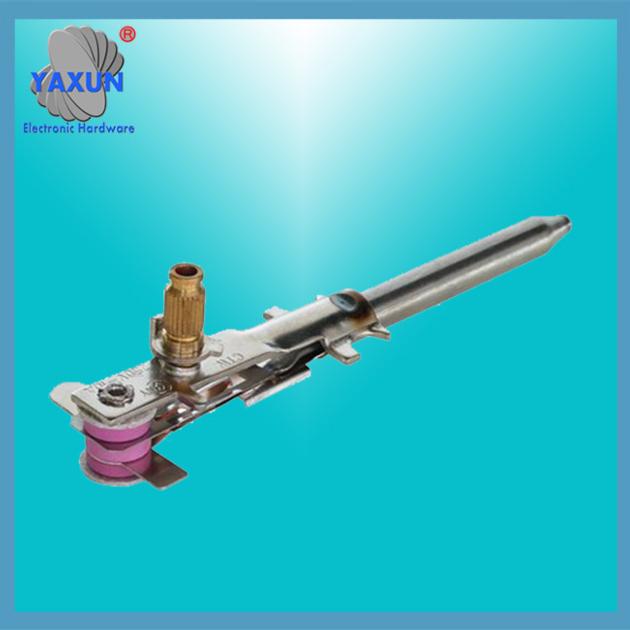

Probe type thermostat Explanation:
1. Disconnect the thermostat and the temperature characteristic curve of the finished product and by customer thermostat matching test may be;
2. This product can be designed with an induction current to achieve the purpose of temperature control, and can greatly reduce the web temperature, remote temperature control, thermal compensation;
3. Installation according to customer requirements and design;
4. For the convenience of customers to install thermostat, thermostat while also staking a fixed mounting block (chip), but also has the function of heat conduction effect.
Probe type thermostat Precautions:
Ceramics, bimetal thermostats and other physical health should not be the role of external forces intact 1. Install;
2. The thermostat stacking layers stored in strict accordance with requirements and do affect product quality and other details of dust and moisture;
|
