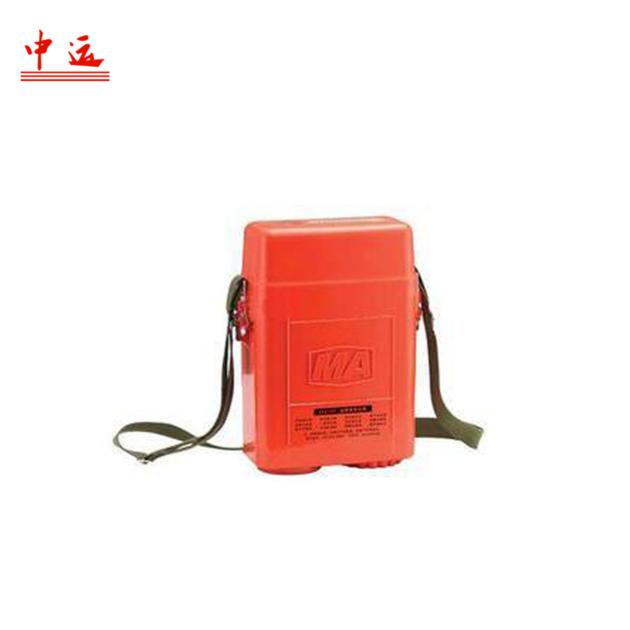

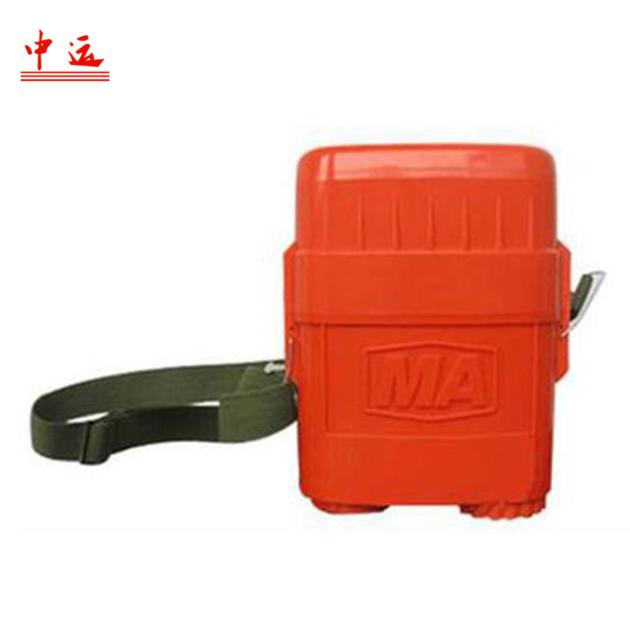

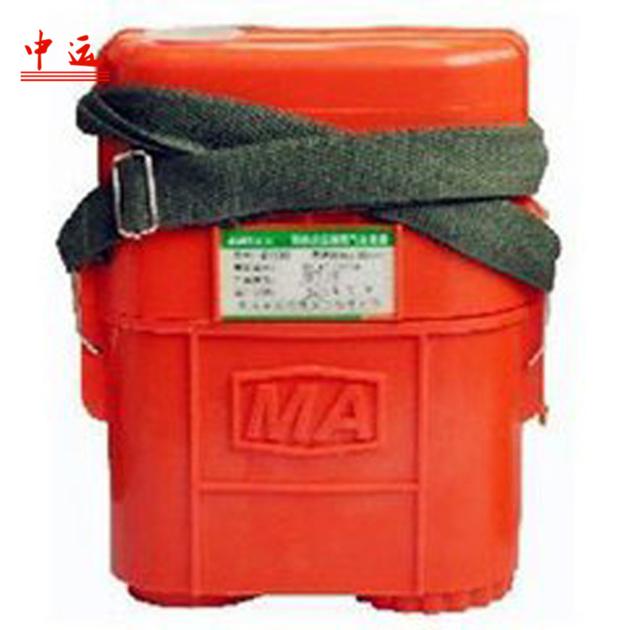

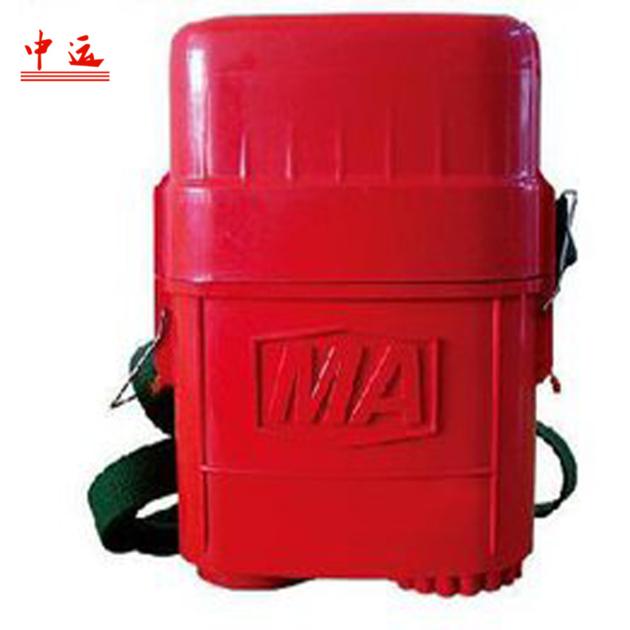

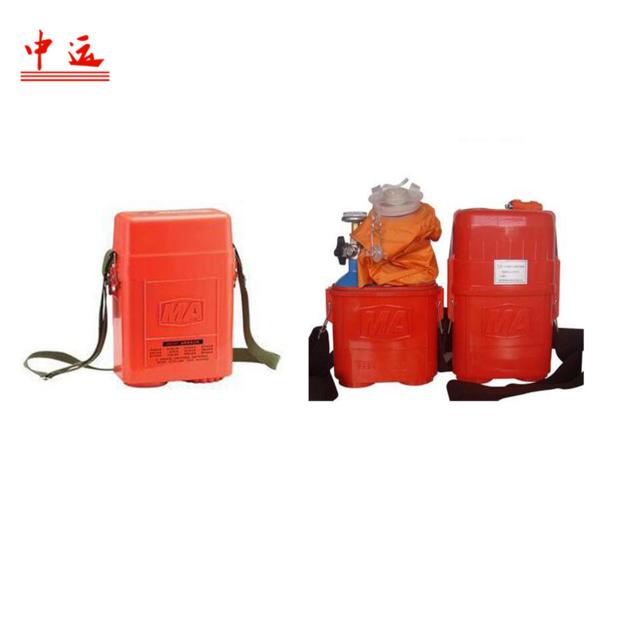

ZYX30 Compressed Oxygen Self Rescuer Breathing Apparatus

• ZYX30 Compressed Oxygen Self Rescuer Breathing Apparatus is designed and produced strictly
according to the industry standard ‘Isolated Compressed Oxygen Self rescuer’. It is safe and reliable.
• ZYX30 Compressed Oxygen Self Rescuer applies the high-pressure oxygen tank filled by medical
oxygen. It can supply enough oxygen.
• The oxygen tank is equipped with relief valve and security valve, which makes it safe to use.
• There is carbon dioxide absorbers in the cleaning tank of the self-rescuer which can absorb the carbon
dioxide the user breathe out, so this reduces the carbon dioxide in the breathing bag.
• There are manual or automatic supplying equipment in the self-rescuer. When the breathing bag is
empty or the oxygen supply is not sufficient, the user can press the supplying valve to fill the breathing bagwith oxygen automatically or manually.
Application of ZYX30 Compressed Oxygen Self Rescuer Breathing Apparatus
Miners use them to self-rescue when it is oxygen-poor or toxic gas threats their life in coal mine.
It can be also applied by the first aiders or workers from other enterprises or public institutions who
works under the condition of oxygen deficit or toxic gas.
Parameter of ZYX30 Compressed Oxygen Self Rescuer Breathing Apparatus

Model ZYX30
Protect time ≥30min
Capacity of oxygen bottle 0.3L
Oxygen storage capacity 56L
Inspiratory oxygen concentration 25%
Inhaled carbon dioxide concentration 2%
Quantitative supply of oxygen 1.2L/min
Manual supply of oxygen supply 60L/min
Cylinder filling pressure 20Mpa
Period of validity 3-5 years
Outline dimensions 210*167*80mm
weight
