ZYX Series Isolated Compressed Oxygen Self-Rescuer
Price: | US$ 60 |
---|---|
Minimum Order: | 10 |
Payment Terms: | LC,TT |
Port of Export: | qingdao,shanghai |
Product Details
Model No.: | ZYX Series | Brand Name: | ZHONGYUN |
---|
Certification: | CE |
---|---|
Specification: | mainly used in coal mine or environmental air pollution of poisonous gas and asphyxia hazards |
Packaging & Delivery
Packaging: | wooden case |
---|---|
Delivery/Lead Time: | 15-20 days after payment |
Production Capacity: |
Product Description
field personnel quickly wear,the protection of human normal breathing to flee coal mine workers in the event of gas outburst,fire and explosion disaster accident,as well as rescue workers in respiratory failure using rapid evacuation.

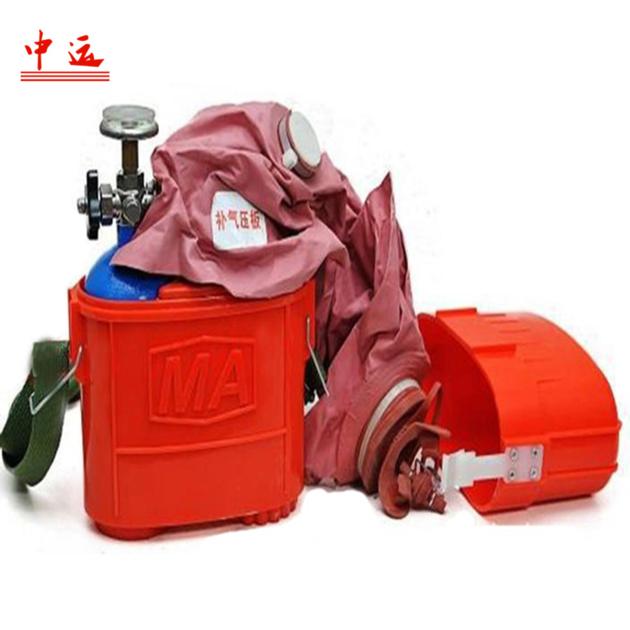

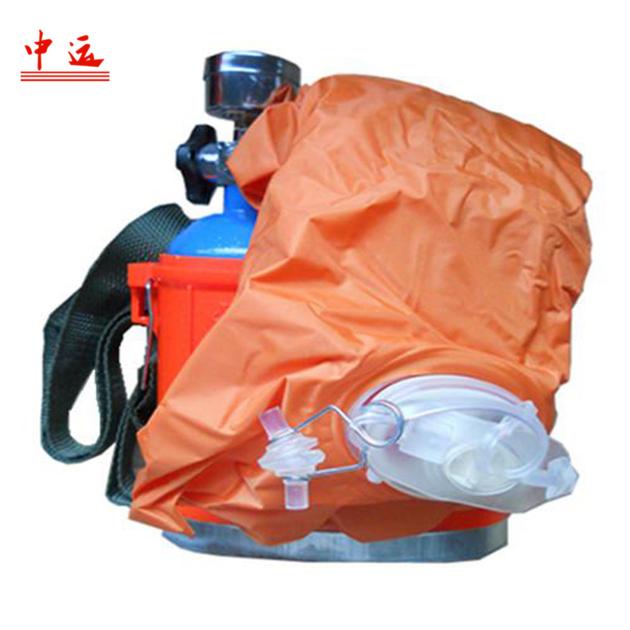

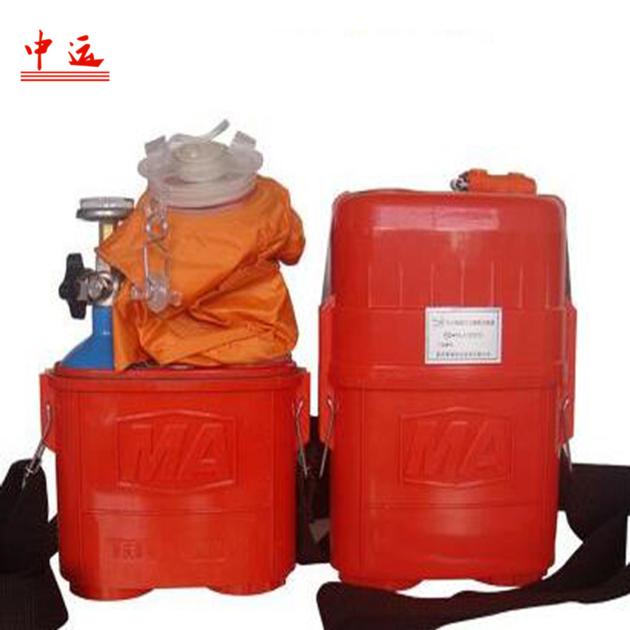

ZYX Series Isolated Compressed Oxygen Self- Rescuer is mainly composed of the respiratory system and the CO2 filter system of high pressure system,consisting of high pressure system including oxygen bottles,oxygen bottle switch,pressure regulator,automatic and manual supply valve and pressure gauge.
Respiratory system consists of mouth,nose clip,breathing hose,air,exhaust valve and breathing valve.

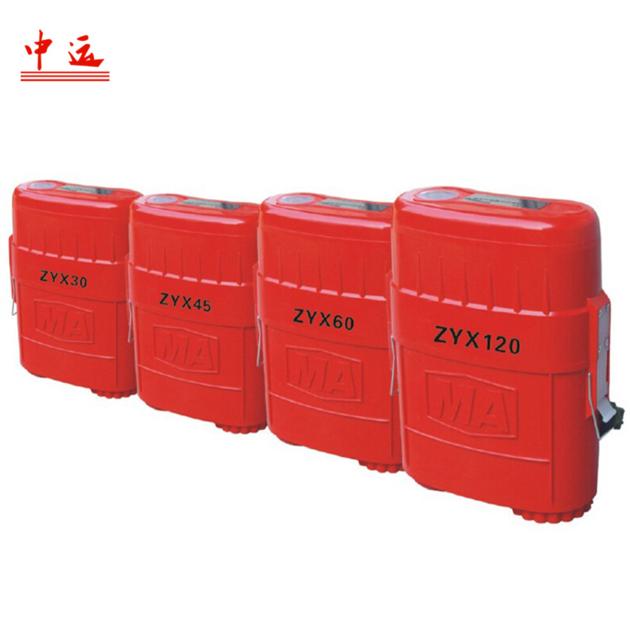

Parameter of Series Isolated Compressed Oxygen Self-Rescuer
Model ZYX30 ZYX45 ZYX60 ZYX120
Protect time ≥30min ≥40min ≥60min ≥120min
Capacity of oxygen bottle 0.3L 0.38L 0.4L 1.0L
Oxygen storage capacity 56L 80L 140L 240L
Inspiratory oxygen concentration 25% 25% 25% 25%
Inhaled carbon dioxide concentration 2% 2% 2% 2%
Quantitative supply of oxygen 1.2L/min 1.2L/min 1.2L/min 1.2L/min
Manual supply of oxygen supply 60L/min 60L/min 60L/min 60L/min
Cylinder filling pressure 20Mpa 20Mpa 20Mpa 20Mpa
Period of validity 3-5 years 3-5 years 3-5 years 3-5 years
Outline dimensions 210*167*80mm 225*177*90mm 235*180*92mm 285*205*100mm
weight 1.8kg 2.1kg 2.4kg 4.3kg
