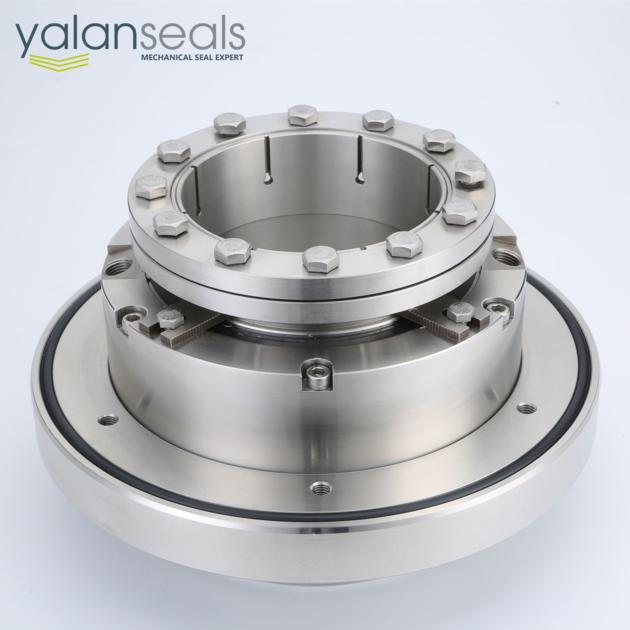

ZWJ Mechanical Seals for Paper-making Equipment, Alumina Plants, Flue Gas Desulphurization

Basic Features
Structure: Single-End
Pressure: High Pressure Mechanical Seals
Speed: General Speed Mechanical Seal
Temperature: Poor Temperature Mechanical Seal
Performance: Wear
Standard: Standard
Model NO.: ZWJ
Balance: Balanced
Specification: Inner Diameter: 20 mm to 220 mm
Product Detailed Description
ZWJ Mechanical Seals for Paper-making Equipment, Alumina Plants, Flue Gas Desulphurization, Deashing System and Slurry Pumps

Structural Features: single end, multiple springs, with spring protector, balanced, independent direction of rotation, external seal flush. The component is cartridge seal with easy installation. The springs are not touching the subjects so that there will be no jam caused by the high viscosity and crystallization active content. This makes sure the flexibility of the compensation ring and as a result, it lasts the lifetime of the whole component. The stationary and rotary rings are palletized with L style pad so that they can have higher flexibility for temperature changes. Easy installation, no need to disassemble the seal cavity for the installation.

Industrial Standards: Not available right now.

Scopes of Application: mainly used in paper-making equipment, alumina plants, flue gas desulphurization (AKA FGD), deashing system (for power plants) and slurry pumps. Comparing to ZGJ, this component works with devices that do not have or do not need to have a cooling system.

Operation Parameters:
Pressure: 0 ~ 2.4 MPa or less
Temperature: - 20 ~ 100 ºC
Linear Speed: 15 m/s or less
Solid Capacity: 15% or less
Mediums: paper pulp, coal cinder, slag, ash and other fluids with solid powder.

Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
