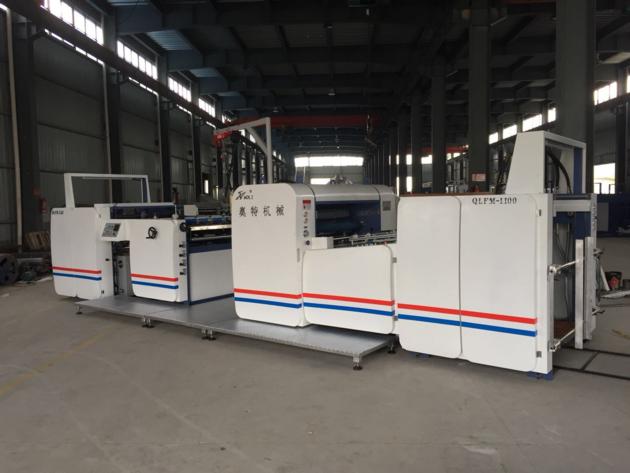

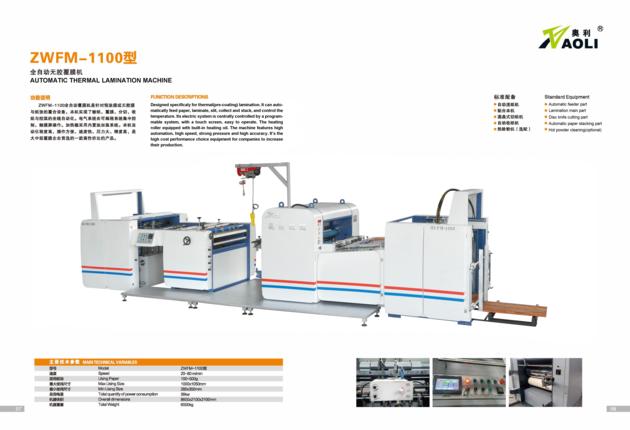

ZWFM-1100 automatic hot thermal laminating machine

ZWFM-1100 fully automatic thermal lamination machine is designed for thermal (pre-coated) lamination, easy to use without glue coating unit. Features high automation, high laminating speed, high accuracy, electrical appliance is centralized by programmable system, touch screen easy to operate, with high cost-performance.
Configuration & Functions:

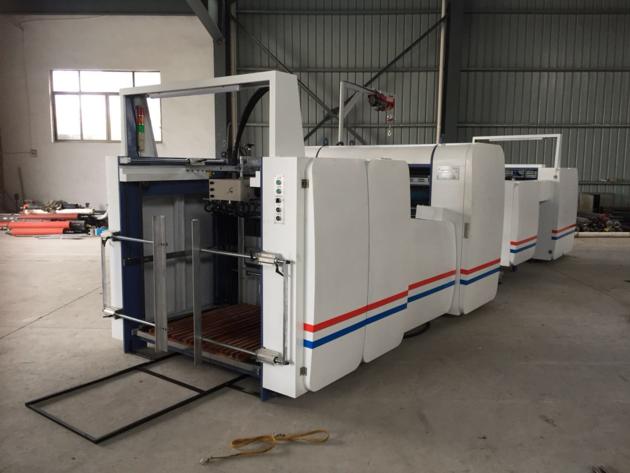

1. Automatic High Speed Feeder: Adopt high speed pneumatic offset feeder, speed up to 100m/min. Pre-stacking system can realize non-stop feeding, obviously improving work efficiency.

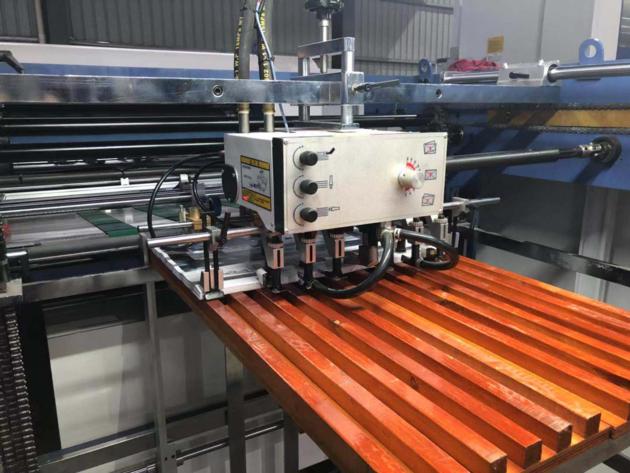

2. High Accuracy Lap Control: Servo-controlled lap within ¯2mm, synchronizes with feeder, high accuracy front lay and pnuematic side lay regulator ensure accurate and stable position.
3. Automatic Shutdown Protection System: Equipped with photoelectrically controlled automatic shutdown protection devices, in case of paper shortage, paper broken and paper overlap.

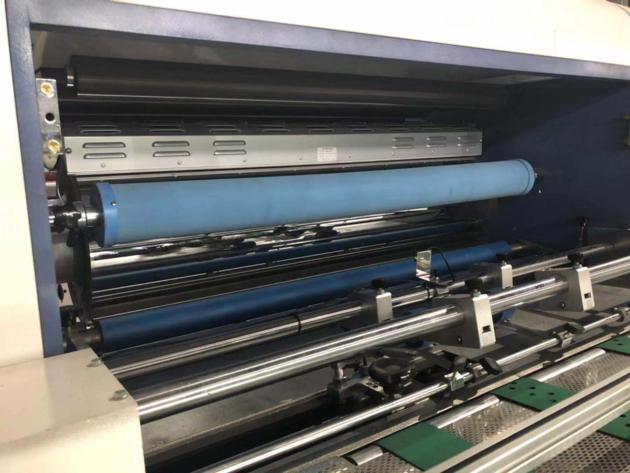

4. Thermal Laminating System:The 360mm diameter mirror laminating roller is equipped with Electromagnetic Heating Device, at the same time supported with Built-in Oil Conduction Heating System, can realize high speed booting and heating, 2 times heating performance than traditional heating device meanwhile save much power consumption.
5. Automatic Hydraulic System: The hydraulic system automatically provides stable and large pressure to ensure high quality of lamination.
6. Man-machine Interface System:Equipped with color touch screen, easy and convenient to operate. The operator can view the machine's working status at any time from the touch screen.
7. Air Shaft and Tension Control System:Adopt air shaft, easy to load film, accurate film position by the graduation of the air shaft. At the same time the intelligent tention system easy to control the tention of film, increase laminating performance.
8. Slitting System:Adopt disc knife, coordinated with pneumatic pull and separating device, can slit BOPP and OPP film perfectly.(If you use PET or thin foil, we have Chain knife slitting machine optional.)
9. Anti-Curvature System: Adopt corrugrated delivery and anti-curvature system, especially designed for thin paper, avoid paper curvature.
10. Automatic Stacker:Equipped with IR sensor, automatically count the sheets. Three-direction high speed pneumatic stacker can collect the sheets automatically and flat without stopping.
