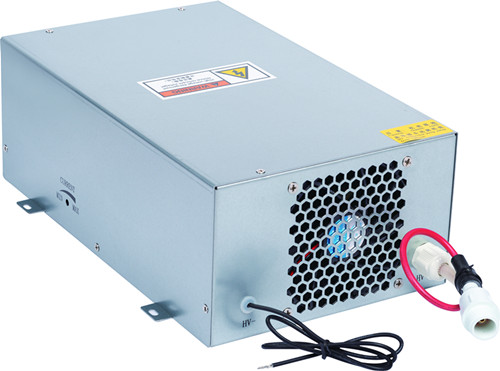

ZRsuns 80W CO2 laser power source for 6090 CO2 laser engraver

ZR-80WE CO2 POWER SUPPLIES
Feature
1. This high voltage laser power supplies’s control interface is applicable to high/low level signal. TTL level is to control the on/off of the laser power with a protective switch to check water-flow and ventilation.
2. Each 80Watt laser power supplies before selling will go through the aging check:
(1) sustain 10 hours at temperature 60 Degrees Celsius under full-load condition;
(2) 500 times on/off check for 7 seconds.
3. Input analog signal(0~5V) or PWM is used to control the output laser power on this 80Watt laser power supplies.
4. This 80Watt laser power supplies is used to drive most brands 1200-1450mm CO2 laser tube. The two fans laser power supplies use zero-current half-bridge soft-switch circuit to make sure the CO2 laser power supplies have high efficiency and fast response speed.
5.This two fans laser power supplies has RED TEST button to easily figure out CO2 power supplies or CO2 laser tube’s failure. It is very easy and simple to remove trouble.
6. Aging check before stored in warehouse:
7. The CO2 laser power supplies have H/L/P/G/IN/5V control signal interface，The upper cover and bottom shell are made of aluminum Casing is galvanized sheet.
