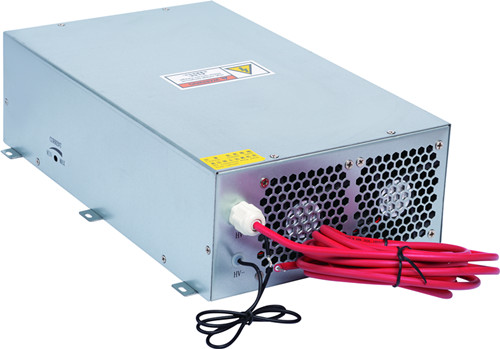

.ZR-150WH HV laser PSU for 1850/2000mm glass CO2 laser tube
| Price: | US$ 149 / Piece |
|---|---|
| Minimum Order: | 30 |
| Payment Terms: | western union t/t |
| Port of Export: | qingdao china |
Product Details
| Model No.: | .ZR-150WH CO2 laser power supply | Brand Name: | ZRSUNS |
|---|
| Certification: | ce |
|---|---|
| Specification: |
Specification Input Input voltage AC220V¯10% (AC110V specified while order) AC frequency 47~440HZ Maximum input power 1000W Maximum input current 4.5A Output Maximum output voltage 40KV Maximum output current 40mA (depending on the laser tubes of different manufacturers) Efficiency More than 90% (Full load) Response speed Not more than 1ms Control lnterace TTL multilevel switching control,effective level can be high and low selection (see control wining diagram) Insulation lnput-output AC 1500V 1 minutes not more than 10mA lnput-shell AC 1500V 1 minutes not more than10mA Output-shell Connection Open Circuit Protection Can be short circuit (requires a good grounding shell,while avoiding the positive electrode and the shell between the arc) Environmental Requested Working temperature -10℃~50℃ Storage of temperature -20℃~75℃ Relative Humidity Maximum 85%RH (non-condensing) Altitude 100,000 feet of work 200,000 feet of storage,dose not work Cooling methods Forced air cooling (fan cooling) Dimensions (LxWxH) 350mmx221mmx105mm |
Packaging & Delivery
| Packaging: | carton and foam |
|---|---|
| Delivery/Lead Time: | 3-4 working days after payment received |
| Production Capacity: | 4000pcs each month |
Product Description
ZR-150WH HV laser PSU Feature:
1. The analog signal power supply box has good compatibility : The power supply box for 185cm tube can match with most brand 1850mm or 20000mm 150W or 180W glass laser tube,besides this feature, the analog signal power supply box also has strong adaptability and fast response, engraving or cutting benefits good effect.
2. The laser power control is simple, the power supply for 185cm tube can use 0-5V signal to control the laser power. Also this analog signal power supply box uses the PWM (pulse width modulation) signal for laser power control too.
3. This analog signal power supply box has easy and simple control method which uses high and low level for laser power control. The use of TTL-level control can realize start and stop. At the same time the 150w power supply box has a protection switch, testing is made by external water and ventilation.
4. This 150w power supply box have stable working performance: Each power supply box for 185cm tube has been much more testing procedures and under full load high temperature (52~55 degrees celsius) 24 hours of aging, which ensure the stability of each analog signal power supply box.
5. The power supply box for 185cm tube adopts ordinary H/L/P/G/IN/5V to receive laser control signal. And it uses black steel case
6. The 150w power supply box has good protection function: The analog signal power supply box have open circuit protection to make this 150W power supply work for a short time in the open state, so as to make it avoid the laser tube damage.
|
