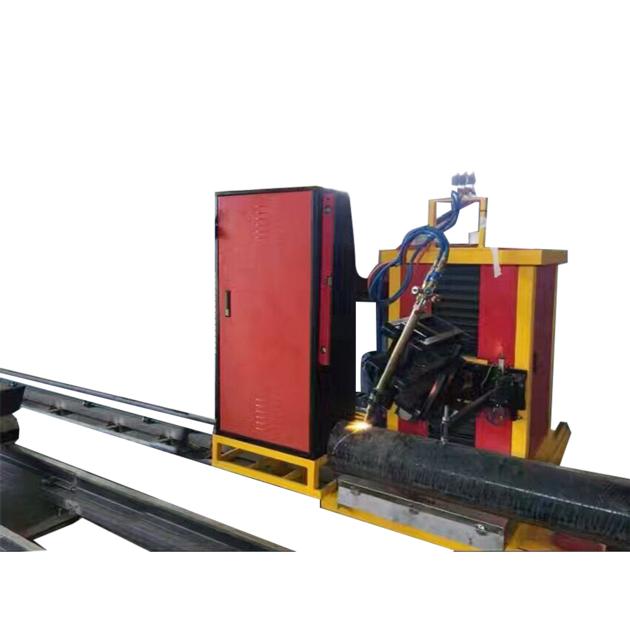

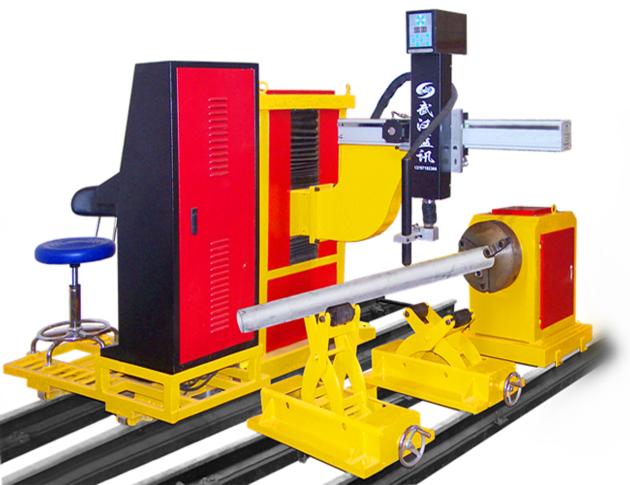

ZLQ-54 5 axis bevel cnc cutting machine for pipe
| Price: | US$ 47000.00 / Unit |
|---|---|
| Minimum Order: | 1 SET |
| Payment Terms: | 30% deposit,70% payment clear before shipment |
| Port of Export: | Shanghai |
Product Details
| Model No.: | ZLQ-54 | Brand Name: | LANCNC |
|---|
| Certification: | CE & ISO |
|---|---|
| Specification: |
Equipment basic configuration
Number Part Name Specification Manufacturer Quantity 1 Electrical control cabinet ZLQ-XGEC Wuhan Lansun 1 2 Intersecting line CNC system F6400 Domestic 1 3 Intersection line programming software Round tube nesting (standard version) with groove Domestic 1 4 Servo drive and motor Panasonic 4 5 Servo drive and motor Domestic 1 6 reducer Domestic 5 7 Chuck support Wuhan Lansun 2 8 Adjustable steel tube bracket Wuhan Lansun 3 9 Head assembly Wuhan Lansun 1 10 Y direction 24kg rail Wuhan Lansun 11 Flame cutting power is 8kw,Plasma cutting power depends on supply |
Packaging & Delivery
| Packaging: | standard export wooden box |
|---|---|
| Delivery/Lead Time: | 7 days after receiving payment |
| Production Capacity: | 100 sets per month |

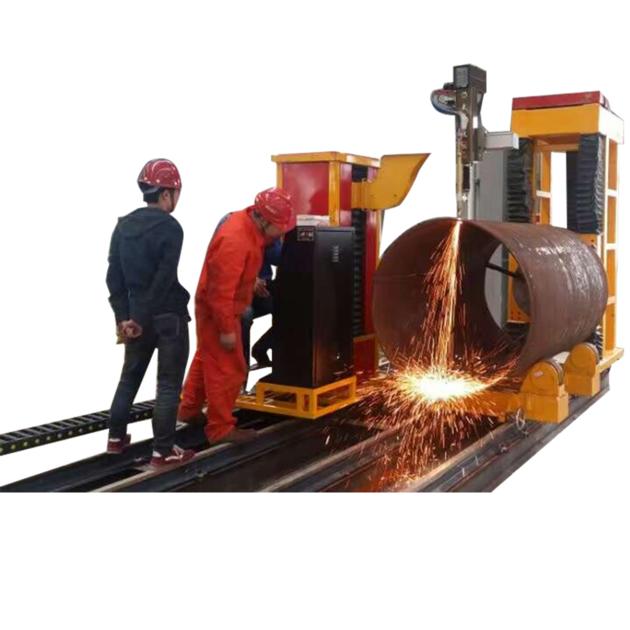

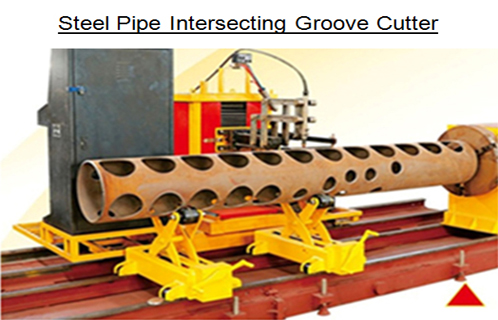

Product Description
1.Cutting steel pipe specification
Parameter
5 axis 4 linkage
3 axis 2 linkage
outer diameter of the tube
60-600mm
80-600mm
Flame cutting tube wall thickness
6-60mm
6-60mm
Plasma cutting tube wall thickness
<40mm (depends on plasma power )
<40mm (depends on plasma power )
Cutting tube length
<9000mm
<6000mm
Tube load
<3500kg
<2000kg
2.Number and range of moving axis of equipment
5 axis 4 linkage
3 axis 2 linkage
Motion axis
Axis choice
Motion range
Axis choice
Motion range
X axis
Pipe rotation axis
360 degree free rotation
Pipe rotation axis
360 degree free rotation
Y axis
The torch moves horizontally along the axial direction of the pipe
The torch moves horizontally along the axial direction of the pipe
Maximum travel 2000mm
Z axis
Torch vertical lifting shaft
Maximum stroke 160mm
Torch vertical lifting shaft
Maximum stroke 200mm
A axis
The torch oscillates along the axial direction of the pipe
A=+/-60 degree
NO
NO
B axis
The torch oscillates along the radial plane of the tube
B=+/-45 degree
NO
NO
3.Steel pipe cutting speed and accuracy
Performances
5 axis 4 linkage
3 axis 2 linkage
Flame cutting speed
100-750mm/min
Plasma cutting speed
1000-6000mm/min
1000-6000mm/min
Moving speed
10-6000 mm/min
10-10000 mm/min
Repeatability
<=+/-0.5mm/1000mm
<=+/-0.5mm/1000mm
Busbar positioning accuracy
<=+/-0.5mm
<=+/-0.5mm
Groove positioning accuracy
<=+/-0.5 degree
<=+/-0.5 degree
|
