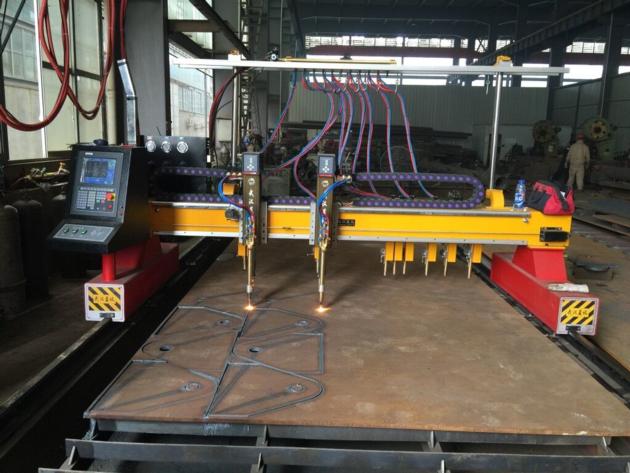

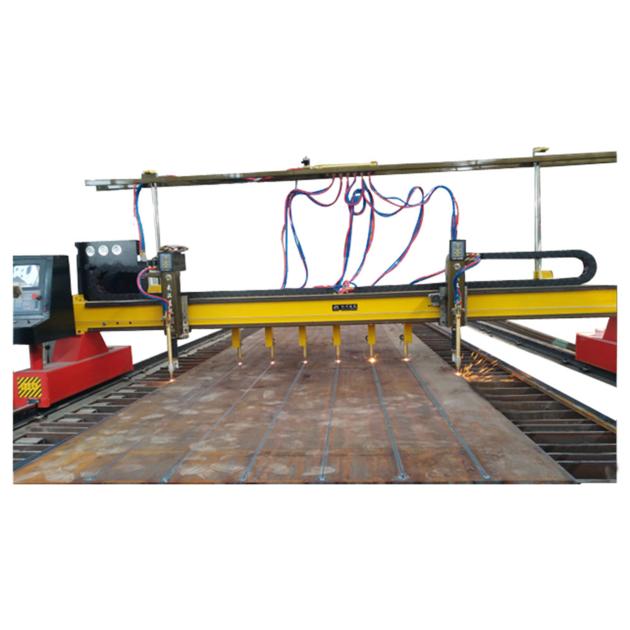

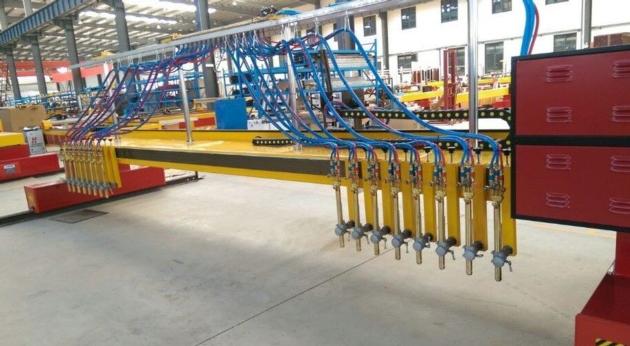

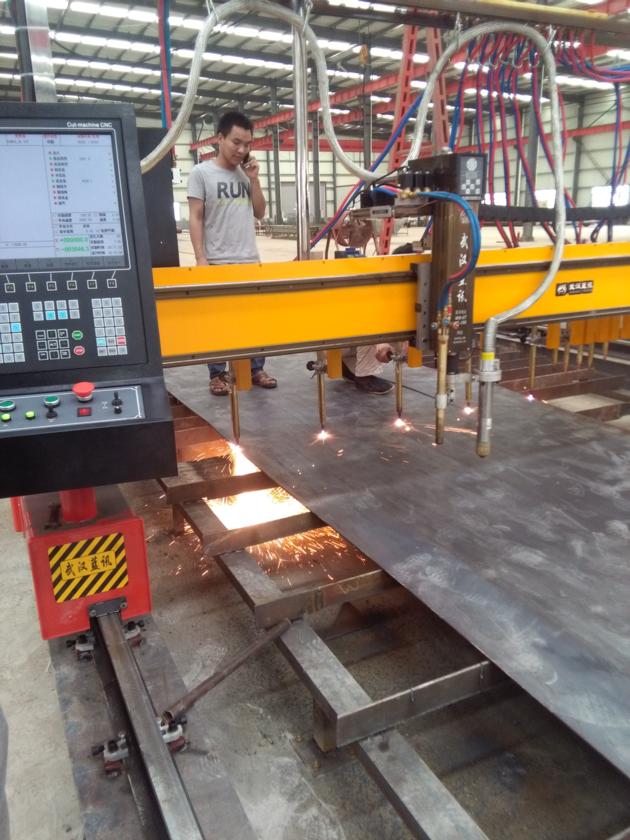

ZLQ-4AS Gantry CNC and Strip Cutting Machine
| Price: | US$ 14500.00 / Unit |
|---|---|
| Minimum Order: | 1 SET |
| Payment Terms: | 30% deposit,70% payment clear before shipment |
| Port of Export: | Shanghai |
Product Details
| Model No.: | ZLQ-4AS | Brand Name: | LANCNC |
|---|
| Certification: | CE & ISO |
|---|---|
| Specification: |
Model
ZLQ-4AS Cutting Mode Plasma Flame Flame and Plasma Driving Mode Servo motor or stepper motor, Dual-side Cross beam Width(m) stardard 4m,Customized 4.5 to 7m. effective Working Width(m) 1m less than track width Guide rail Length (m) stardard 6m,Customized 30m. effective working length (m) 2m less than guide rail length Flame Cutting thickness(mm) 5-200 (specific type up to 300) Plasma Cutting thickness(mm) According to the plasma generator, common 1-30mm Number of Cutting Torch Standard CNC cutting : 1pc , Strip cutting : 4 pcs, or customized. Cutting Speed (mm/min) 50-8800 Running speed (mm/min) 12000 NC Controller Beijing Start or Shanghai System or you want Plasma Power 100A ,120A , 200A ,300A ect . China , USA brand Programming software China or Australia professional nesting software Operation language English or Chinese or Russian Working temperature - 10C - +45C Humidity < 90%, no condensation Surroundings Ventilation, no big shake Power voltage 3*380V(p/m 10%) or up by user local condition |
Packaging & Delivery
| Packaging: | standard export wooden box |
|---|---|
| Delivery/Lead Time: | 7 days after receiving payment |
| Production Capacity: | 100 sets per month |
Product Description
Parameters
LGK-120IGBT
LGK-200IGBT
Power supply
3 phases 380V, 50/60 HZ
3 phases 380V, 50/60 HZ
Rated power
22.4KW
38.8KW
Rated cutting current
120A
200A
Rated duty cycle
100%
100%
Current adjusting range
30A-120A
40A-200A
Optimum cutting parameters
carbon steel 16mm (900mm/min)
Stainless steel 20mm(200mm/min)
Applying plasma gas
Compressed air
Compressed air
Work plasma gas pressure
0.4-0.6MPA
0.4-0.6MPA
Dimension(L*W*H)
675*320*605
800*380*810
Weight(KG)
47KG
82KG
|
