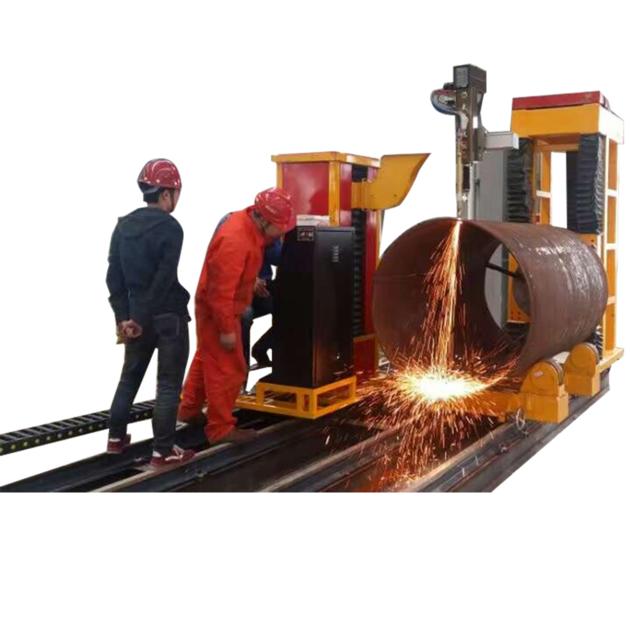

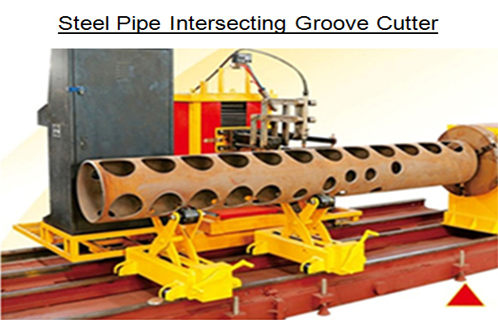

ZLQ-32 Intersecting line 3 axis pipe cutting machine
| Price: | US$ 14590.00 |
|---|---|
| Minimum Order: | 1 SET |
| Payment Terms: | 30% deposit,70% payment clear before shipment |
| Port of Export: | Shanghai |
Product Details
| Model No.: | ZLQ-32 | Brand Name: | LANCNC |
|---|
| Certification: | CE & ISO |
|---|---|
| Specification: |
Number
Product name Specification Quantity Memo 1 3-axis 2 linkage CNC intersecting wire cutting machine ZLQG-32 1 Cutting pipe diameter 60-600mm, effective pipe length 4 meters, pipe maximum load 3 tons, cutting method: flame plasma 2 CNC system 1 Wuhan Lansun 3 Servo drive 1 Domestic 4 Servo drive 1 Panasonic 5 Reducer 2 Domestic 6 Electrical parts 1 Taiwan 7 Mechanical part 1 Wuhan Lansun 8 Arc voltage automatic height controller 1 With plasma cutting, including front and rear, left and right direction fine adjustment, torch lift adjustment, arc pressure parameter display, setting and cutting remote operation panel, control cable, etc. 9 Plasma torch matching components 1 Includes height-adjusting lifter, three-phase AC stepper motor, torch initial positioning sensor, torch anti-collision device, drag chain and TRVVP grade flexible control cable, plasma torch hanger, plasma arc start control line, arc pressure sampling line 10 Three-axis two linkage programming software 1 Wuhan Lansun Flame cutting power is 8kw,Plasma cutting power depends on supply |
Packaging & Delivery
| Packaging: | standard export wooden box |
|---|---|
| Delivery/Lead Time: | 7 days after receiving payment |
| Production Capacity: | 100 sets per month |
Product Description

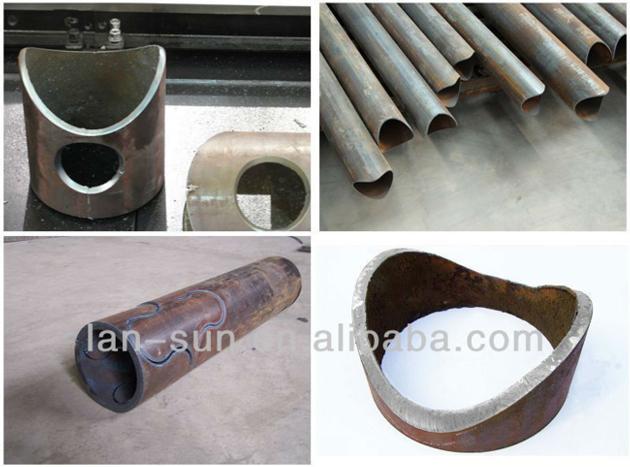

1.Cutting steel pipe specification
Parameter
5 axis 4 linkage
3 axis 2 linkage
outer diameter of the tube
60-600mm
80-600mm
Flame cutting tube wall thickness
6-60mm
6-60mm
Plasma cutting tube wall thickness
<40mm (depends on plasma power )
<40mm (depends on plasma power )
Cutting tube length
<9000mm
<6000mm
Tube load
<3500kg
<2000kg
2.Number and range of moving axis of equipment
5 axis 4 linkage
3 axis 2 linkage
Motion axis
Axis choice
Motion range
Axis choice
Motion range
X axis
Pipe rotation axis
360 degree free rotation
Pipe rotation axis
360 degree free rotation
Y axis
The torch moves horizontally along the axial direction of the pipe
The torch moves horizontally along the axial direction of the pipe
Maximum travel 2000mm
Z axis
Torch vertical lifting shaft
Maximum stroke 160mm
Torch vertical lifting shaft
Maximum stroke 200mm
A axis
The torch oscillates along the axial direction of the pipe
A=+/-60 degree
NO
NO
B axis
The torch oscillates along the radial plane of the tube
B=+/-45 degree
NO
NO
3.Steel pipe cutting speed and accuracy
Performances
5 axis 4 linkage
3 axis 2 linkage
Flame cutting speed
100-750mm/min
Plasma cutting speed
1000-6000mm/min
1000-6000mm/min
Moving speed
10-6000 mm/min
10-10000 mm/min
Repeatability
<=+/-0.5mm/1000mm
<=+/-0.5mm/1000mm
Busbar positioning accuracy
<=+/-0.5mm
<=+/-0.5mm
Groove positioning accuracy
<=+/-0.5 degree
<=+/-0.5 degree
|
