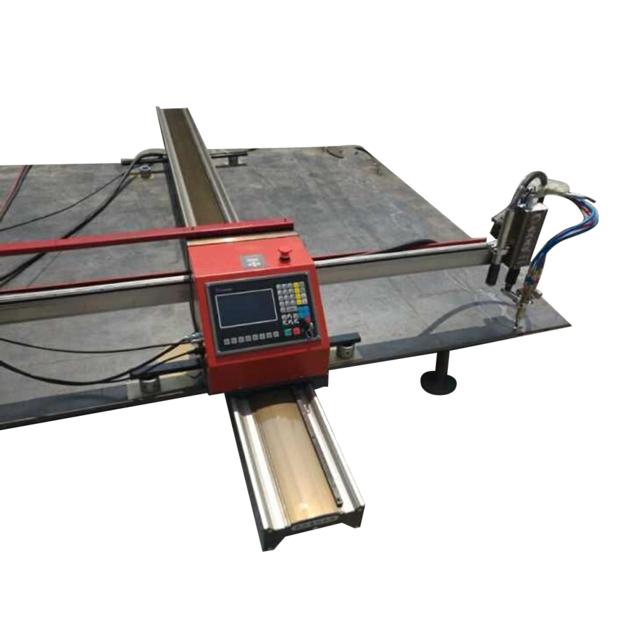

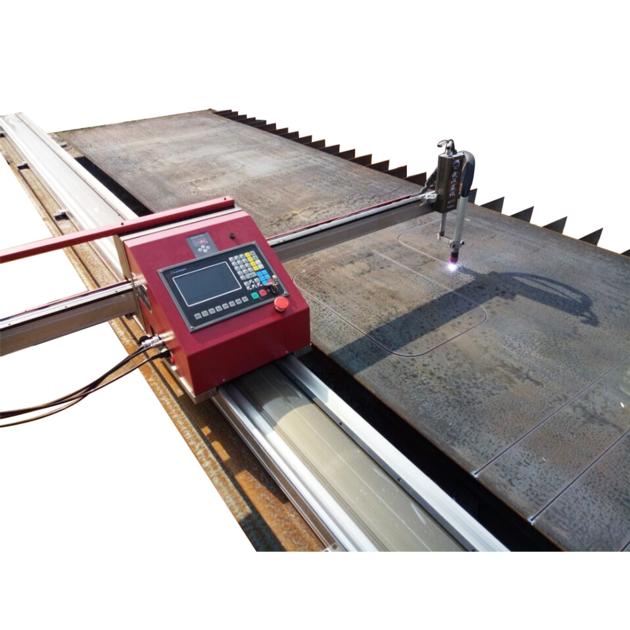

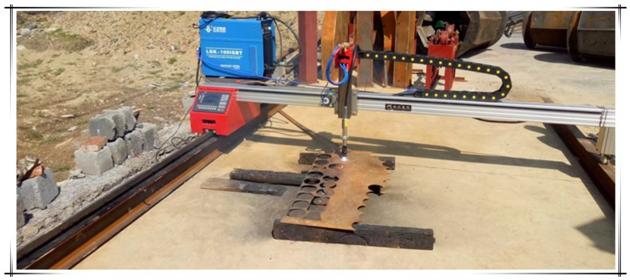

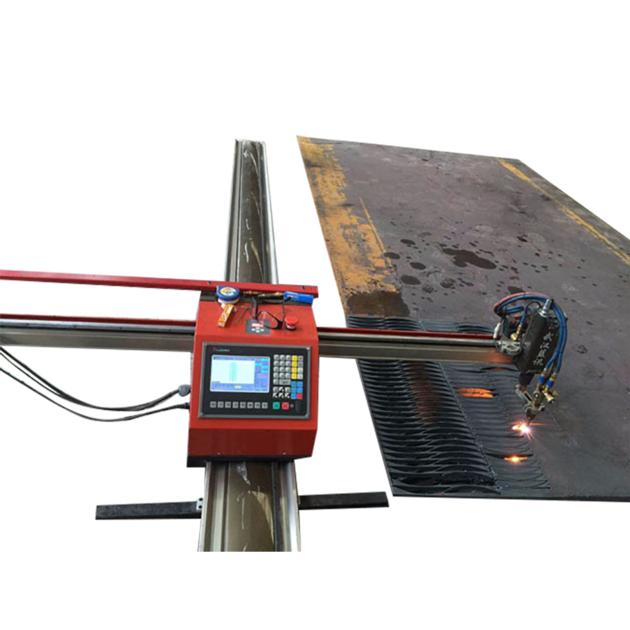

ZLQ-15B Portable cnc flame and plasma cutting machine

Price:	US$ 1980.00 / Unit
Minimum Order:	1 SET
Payment Terms:	100% T/T before shipment of machine
Port of Export:	Shanghai

Product Details

Model No.:	ZLQ-15B	Brand Name:	LANCNC

Certification:	CE & ISO
Specification:	Cutting method Guide: 1,Flame cutting: Suitable for cutting carbon steel larger than 20mm; 2,Plasma cutting: Plasma cutting cost is 1/3~1/2 of flame cutting;So the plasma is suitable for cutting carbon steel within 20mm;Stainless steel, aluminum or galvanized sheet etc materials suitable for plasma cutting. Main Features 1. Gantry structure, large cutting width: the horizontal width is 3M, the effective cutting width is 2.5m, the longitudinal track is 5 m, effective cutting length is 4m. 2. The cross beam with oblique braces and distal support, good stiffness, high precision.Installation is direct insertion, it is portable and convenient to move. 3.It can be configured as flame cutting, plasma cutting or flame and plasma dual function. 4. flame cutting is automatic ignition, plasma cutting adjust height automatically by arc presure. 5. After disassembling, the whole machine is only two packages,Easy to transportation and storage. 6. Providing detailed videos of installation, operation and maintenance of machines

Certification:

CE & ISO

Specification:

Cutting method Guide:
1,Flame cutting: Suitable for cutting carbon steel larger than 20mm;

2,Plasma cutting: Plasma cutting cost is 1/3~1/2 of flame cutting;So the plasma is suitable for cutting carbon steel within 20mm;Stainless steel, aluminum or galvanized sheet etc materials suitable for plasma cutting.

Main Features
1. Gantry structure, large cutting width: the horizontal width is 3M, the effective cutting width is 2.5m, the longitudinal track is 5 m, effective cutting length is 4m.

2. The cross beam with oblique braces and distal support, good stiffness, high precision.Installation is direct insertion, it is portable and convenient to move.
3.It can be configured as flame cutting, plasma cutting or flame and plasma dual function.

4. flame cutting is automatic ignition, plasma cutting adjust height automatically by arc presure.
5. After disassembling, the whole machine is only two packages,Easy to transportation and storage.
6. Providing detailed videos of installation, operation and maintenance of machines

Packaging & Delivery

Packaging:	standard export wooden box
Delivery/Lead Time:	5 days after receiving payment
Production Capacity:	200 pcs/month

Product Description

Mechanical Components
Description

Horizontal rail Width
3m

Effective cutting width
2.5m

Longitudinal rail Length
5m

Effective cutting length
4m

CNC Cutting torch
Flame, Plasma, Flame & Plasma

CNC Oxy-fuel cutting torch
Wuhan lansun

Auto-ignitiondevice
Wuhan lansun

Torch height controller
Automatci height controller

Plasma source
China brand LGK100A LGK120A or USA brand .

CNC plasma cutting torch
According to plasma power source

Plasma cutting speed
50-6500mm/min

Oxy-fuel cutting thickness
5-120mm

Oxy-fuel cutting speed
50-3500mm/min

Cutting torch lifting distance
120mm

Drive Mode
Single side drive

Interface
7 inch True color Display with Spanish language

CNC control system
Beijing Start control system

Programming and nestling software
Fastcam or startcam

Driving motor
Stepper Motor

ZLQ-15B Portable cnc flame and plasma cutting machine
