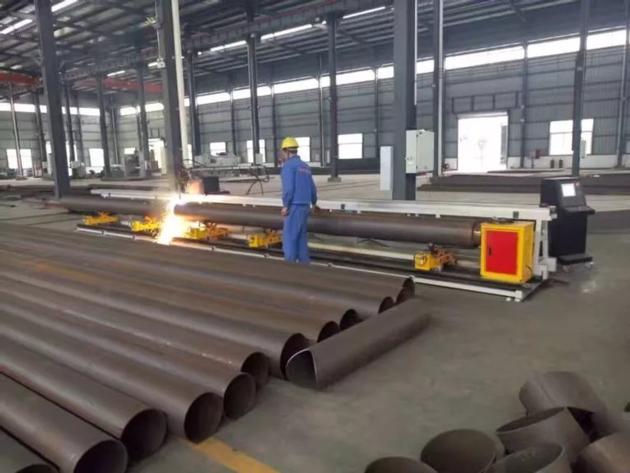

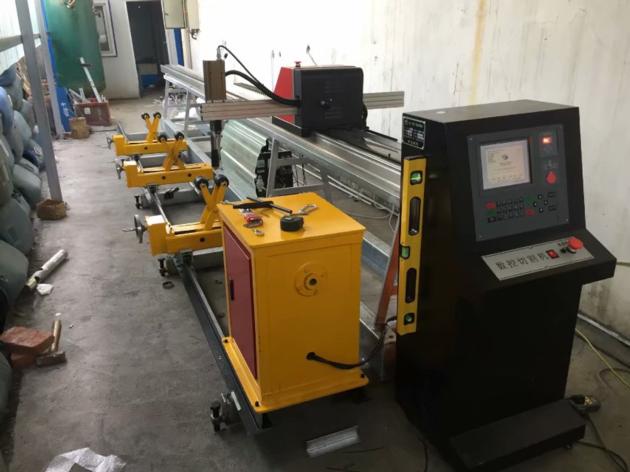

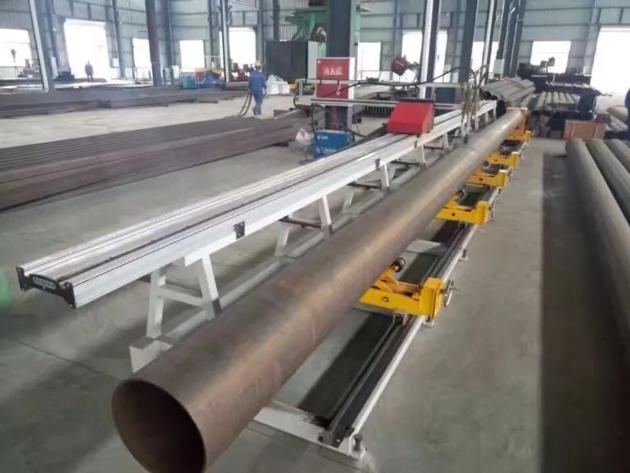

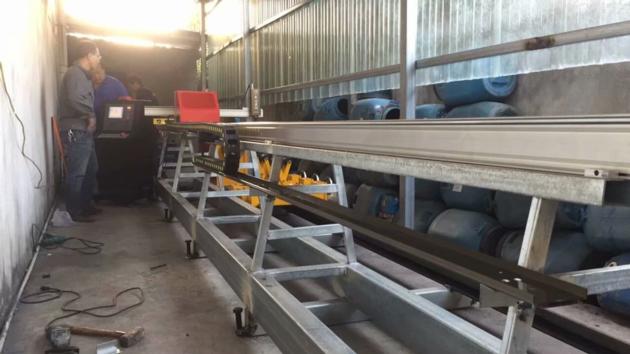

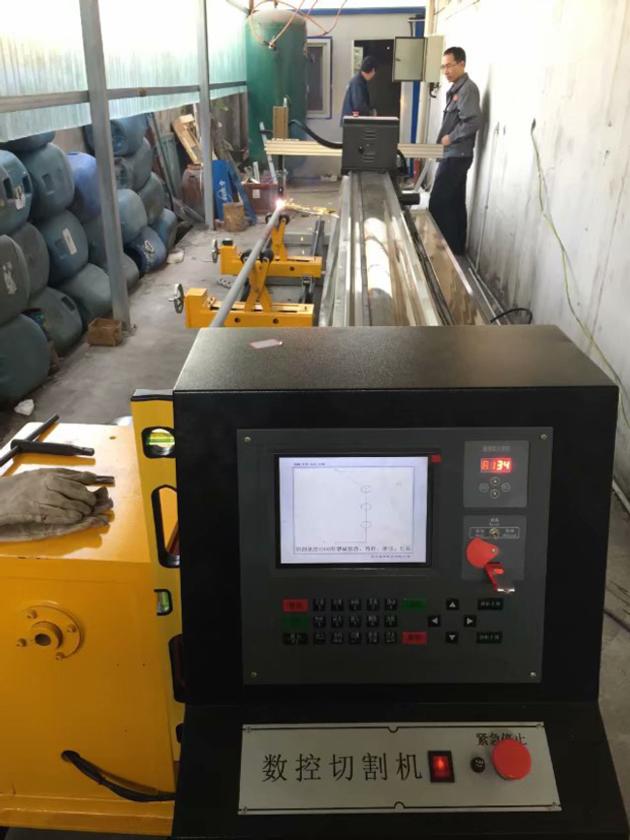

ZLQ-14G Small intersecting line cutting machine
| Price: | US$ 7990.00 / Unit |
|---|---|
| Minimum Order: | 1 SET |
| Payment Terms: | 30% deposit,70% payment clear before shipment |
| Port of Export: | Shanghai |
Product Details
| Model No.: | ZLQ-14G | Brand Name: | LANCNC |
|---|
| Certification: | CE & ISO |
|---|---|
| Specification: |
Equipment basic configuration
No. Product name Memo 1. Small NC intersecting Line cutting Machine Cutting pipe diameter 30-250 mm, effective tube length 3 meters, tube maximum load 1 ton, cutting mode: plasma 2. numerical control system Research and Development of Special CNC system for intersecting Line in Wuhan Lancnc 3. servo drive Easton servo motor, drive 1 set each 4. step drive Domestic brand motor, drive 1 set each 5. reduction box planetary reduction gear 6. Intersecting line support Intersecting line support 7. Automatic height adjustment of arc pressure Plasma cutting, including cutting gun lift adjustment and control cable, etc. 8. Plasma torch kit With high lift, cutting torch anti-collision device, towing chain and TRVVP flexible control cable, plasma cutting gun hangers, plasma arc starting control line, arc voltage sampling line, etc. 9. Intersecting line programming software Wuhan Lancnc independent research and development of dedicated intersecting line programming software, can well solve the problem of wall thickness interference . |
Packaging & Delivery
| Packaging: | standard export wooden box |
|---|---|
| Delivery/Lead Time: | 7 days after receiving payment |
| Production Capacity: | 100 sets per month |
Product Description
1.Cutting steel pipe accuracy
The precision of repeated positioning of cutting torch is +/-0.5mm/1000mm, the precision of busbar positioning is +/-0.5mm groove positioning accuracy = +/-0.5mm. the cumulative error of relative position between different cutting areas is +/-1mm.
2.Number and range of moving axes of equipment
kinematic axis
Selection of cutting Machine Shaft numbe
range of motion
X axis
Tube shaft
360 degree free rotation
Y axis
Cutting torch moving axis horizontally along pipe fittings
Stroke 3000mm
Z axis
Cutting torch lifting body upper and lower moving shaft
Maximum stroke 150mm
3.Steel pipe loading mode of cutting machine
The tube adopts a 3-claw chuck structure, multi-long shaft roller frame
4.cutting speed
Plasma cutting speed
1000- 6000mm/min
moving speed
10-10000 mm/min
|
