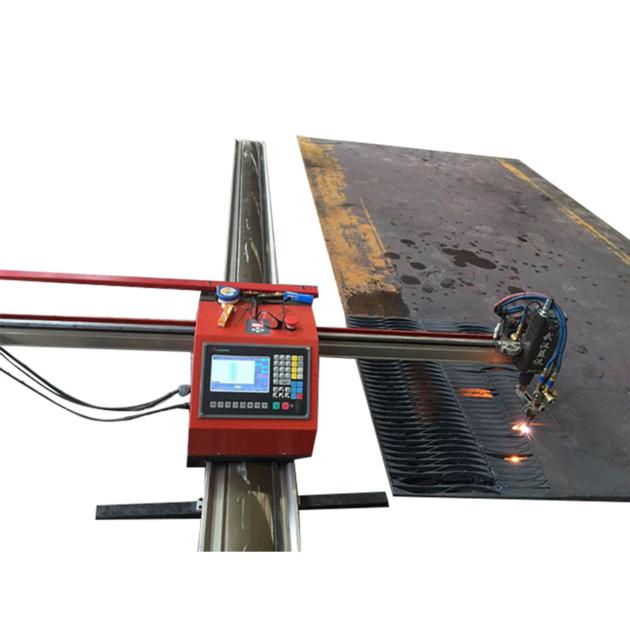

ZLQ-14B3 portable plasma/flame cutting machine
| Price: | US$ 2900 |
|---|---|
| Minimum Order: | 1 SET |
| Payment Terms: | 100% T/T before shipment of machine |
| Port of Export: | Shanghai |
Product Details
| Model No.: | ZLQ-14B3 | Brand Name: | LANCNC |
|---|
| Certification: | CE & ISO |
|---|---|
| Specification: |
Parameters
LGK-120IGBT(Plasma generator standard part) Power supply 3 phases 380V, 50/60 HZ Rated power 22.4KW Rated cutting current 120A Rated duty cycle 100% Current adjusting range 30A-120A Optimum cutting parameters carbon steel 16mm (900mm/min) Stainless steel 20mm(1200mm/min) Applying plasma gas Compressed air Work plasma gas pressure 0.4-0.6MPA Dimension(L*W*H) 675*320*605 Weight(KG) 47KG |
Packaging & Delivery
| Packaging: | standard export wooden box |
|---|---|
| Delivery/Lead Time: | 5 days after receiving payment |
| Production Capacity: | 200 pcs/month |
Product Description
Main Technical Performance Indexes of products
Model
ZLQ-14B3
Effective Cutting area (mm)
1500x3000
1500x4000
1500x6000
Cutting Thickness(mm)
Flame:5-60mm, Plasma:1-25mm
Cutting Speed (mm/min)
50-3800
Running speed (mm/min)
12000
Cutting Mode
flame
plasma
flame and plasma
Drive Motor Number
stepper motor , single-side
Cutting Torch Number
Customize according to user need
NC Controller
Shanghai Or Beijing
Programming software
Startcam or Fastcam
Operation language
English or Chinese or Russian
Voltage
220V/380V
Plasma generator
63A,100A ,120A , 200A etc . China , USA brand
Power voltage
3*380V(p/m 10%) or up by user local condition
Surroundings
Ventilation, no big shake
Humidity
<90%, no condensation
Working temperature
- 10C - +45C
|
