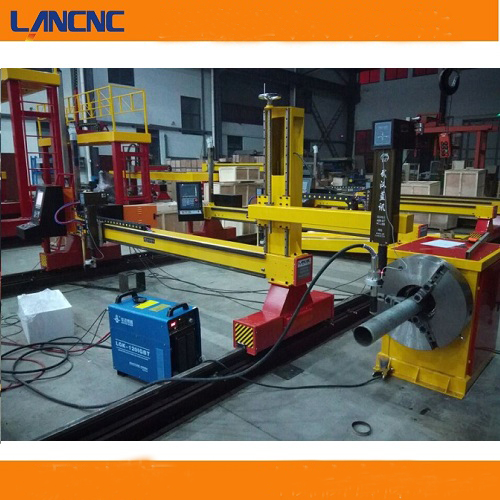

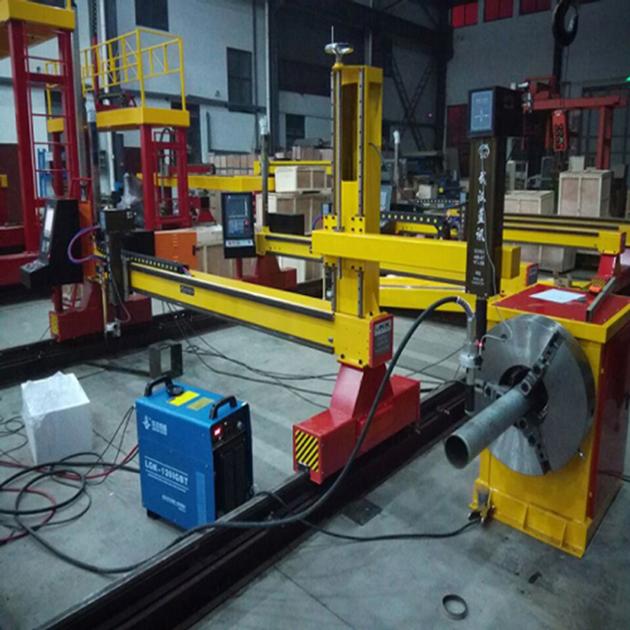

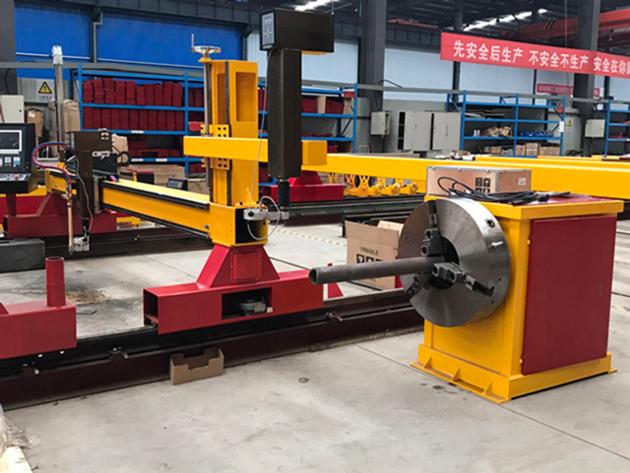

ZLQ-10AG Gantry cnc plasma cutting machine for plate and pipe
| Price: | US$ 13900.00 / Unit |
|---|---|
| Minimum Order: | 1 SET |
| Payment Terms: | 30% deposit,70% payment clear before shipment |
| Port of Export: | Shanghai |
Product Details
| Model No.: | ZLQ-10AG | Brand Name: | LANCNC |
|---|
| Certification: | CE & ISO |
|---|---|
| Specification: |
No.
Qty&Spec. Description 1 ZLQ-10AG Bilateral synchronous servo drive, bilateral 24kg track, beam annealed to eliminate stress 2 3000mm Effective cutting width 2000mm 3 8000mm Effective cutting length 6000mm 4 1 set 2300BX 5 1 set A group of plasma + flame 7 1 set High lift, DC motor, automatic ignition device, solenoid valve set, matching air supply, towing chain and TRVVP flexible cable, etc. Intersecting line cutting part 8 8000mm Effective cutting length 6000mm 9 1 set Special chuck, chuck box, etc. 10 1 set Servo matching special reducer 11 1 set Three axes and two linkage 12 1 pc 10.4 Lcd Screen yellow and red(Standard color of factory delivery) |
Packaging & Delivery
| Packaging: | standard export wooden box |
|---|---|
| Delivery/Lead Time: | 7 days after receiving payment |
| Production Capacity: | 100 sets per month |
Product Description
1.Cutting steel pipe specification
Cutting pipe outer diamete
30-300mm
Plasma cutting tube wall thickness
2-25mm
Maximum length of cut pipe
6000mm
Maximum load of circular tube
1500Kg
2.Number and range of moving axes of equipment
kinematic axis
Selection of cutting Machine Shaft numbe
range of motion
X axis
Tube shaft
360 degree free rotation
Y axis
Cutting torch moving axis horizontally along pipe fittings
Stroke 13000mm
Z axis
Cutting torch lifting body upper and lower moving shaft
Maximum stroke 150mm
3.Steel pipe loading mode of cutting machine
The tube adopts a 3-claw chuck structure, multi-long shaft roller frame, the active frame drives the maximum pipe weight of 1.5 tons, and the minimum distance between the rolling wheels of the roller frame is 1: 400mm (the end part is partial, which can support the tube with the smallest 500mm length and the smallest straight section).
|
