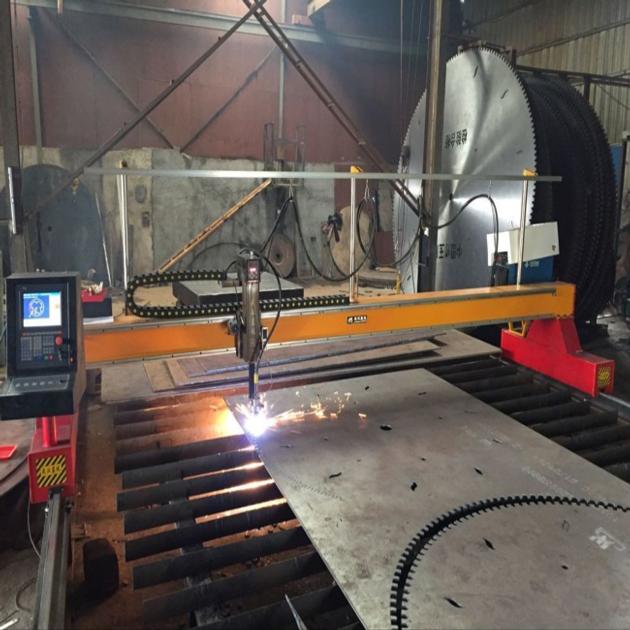

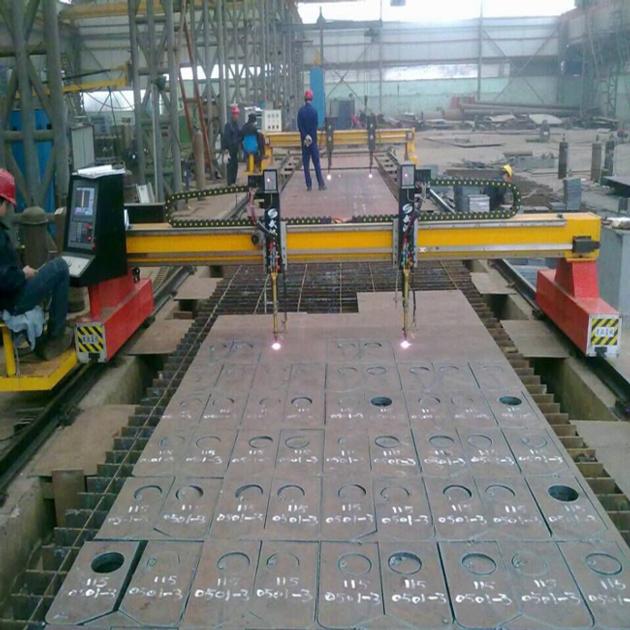

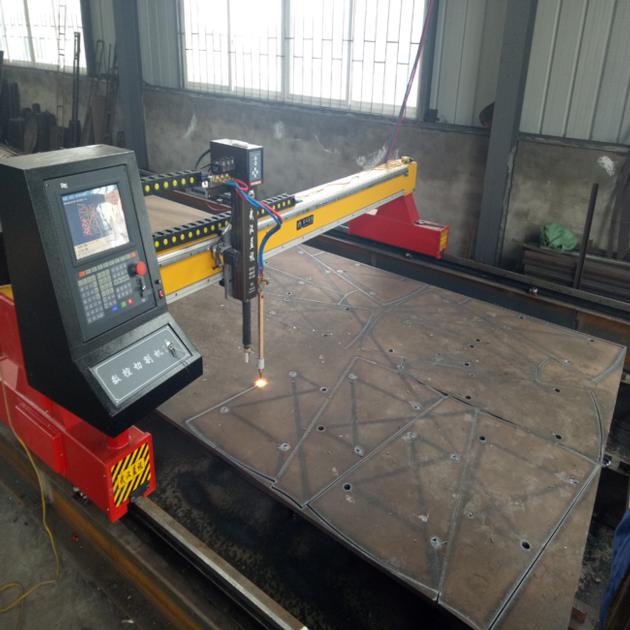

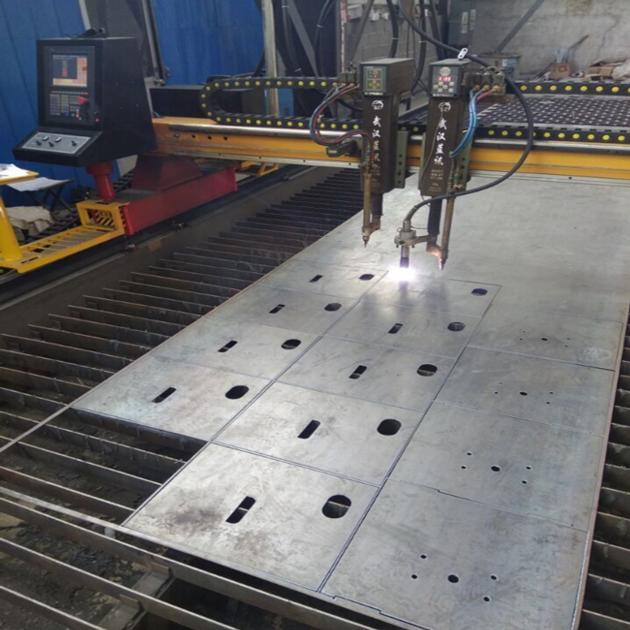

ZLQ-10A1 Small gantry flame cutting machine
| Price: | US$ 6000.00 / Unit |
|---|---|
| Minimum Order: | 1 SET |
| Payment Terms: | 30% deposit,70% payment clear before shipment |
| Port of Export: | Shanghai |
Product Details
| Model No.: | ZLQ-10A3 | Brand Name: | LANCNC |
|---|
| Certification: | CE & ISO |
|---|---|
| Specification: |
Model
ZLQ-10A1 Cutting Mode Plasma Flame Flame and Plasma Driving Mode Servo motor or stepper motor, Dual-side Cross beam Width(m) 3m or 3.5m effective Working Width(m) 1m less than track width Guide rail Length (m) According to your cutting demands effective working length (m) 2m less than guide rail length Flame Cutting thickness(mm) 5-200 (specific type up to 300) Plasma Cutting thickness(mm) According to the plasma generator, common 1-30mm Number of Cutting Torch At customer requests Cutting Speed (mm/min) 50-8800 Running speed (mm/min) 12000 NC Controller Beijing Start or Shanghai System or you want Plasma Power 100A ,120A , 200A ,300A ect . China , USA brand Programming software China or Australia professional nesting software Operation language English or Chinese or Russian Working temperature - 10C - +45C Humidity < 90%, no condensation Surroundings Ventilation, no big shake Power voltage 3*380V(p/m 10%) or up by user local condition |
Packaging & Delivery
| Packaging: | standard export wooden box |
|---|---|
| Delivery/Lead Time: | 7 days after receiving payment |
| Production Capacity: | 100 sets per month |
Product Description
Our product sells well for good quality and high cost-effective in the world market.
Cutting method Guide:
Flame cutting: Suitable for cutting carbon steel larger than 20mm.
Plasma cutting: Plasma cutting cost is 1/3~1/2 of flame cutting;So the Plasma is suitable for cutting carbon steel within 20mm.Stainless steel, aluminum or galvanized sheet etc materials suitable for plasma cutting.
If need Plasma,it could be optional.
|
