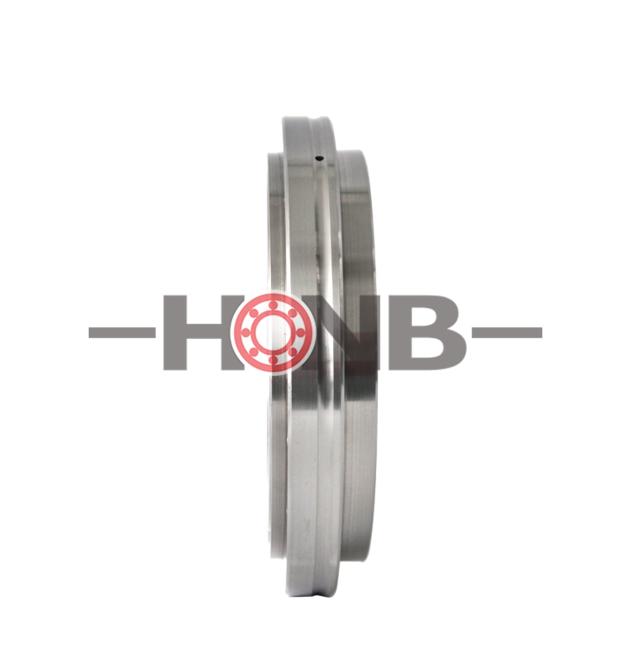

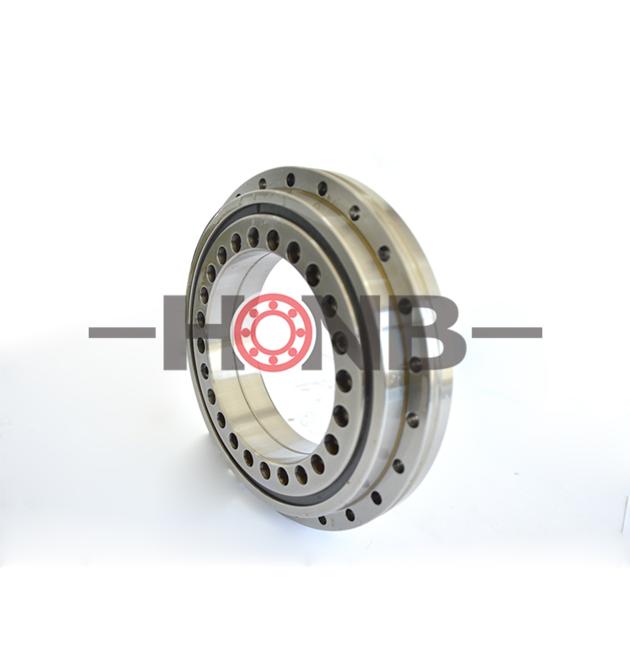

ZKLDF200 axial angular contact ball bearing

HYZF axial angular contact ball bearing series have a unity outer ring, two inner ring, two rows of ball rollers and cage assembly, and contact angle is 60®. The outer rings and inner rings have fitting holes and easy to fit by joint bolt. The unit is located by means of retaining screws for the safety of transport and handling.

HYZF axial angular contact ball bearing series have double side sealing covers which can against dirt, impurities and avoid grease leak. ZKLDF axial angular contact ball bearing series using complex barium-base grease, you can add the grease through grease hole.

HYZF axial angular contact ball bearing series are designed with 60®contact angle and two rows of ball rollers, which can support radial load, double axial loads and tilting moments. Due to the special design with copper cages, the bearing has higher strength and lower friction torque. So this kind of bearings is especially applied to the situation with super speed, long time running, high stiffness and high precision. At the same time it can ensure high rotary precision. HYZF bearings can be applied to high speed rotary worktable, milling, grinding，honing head and precision measuring instruments.
