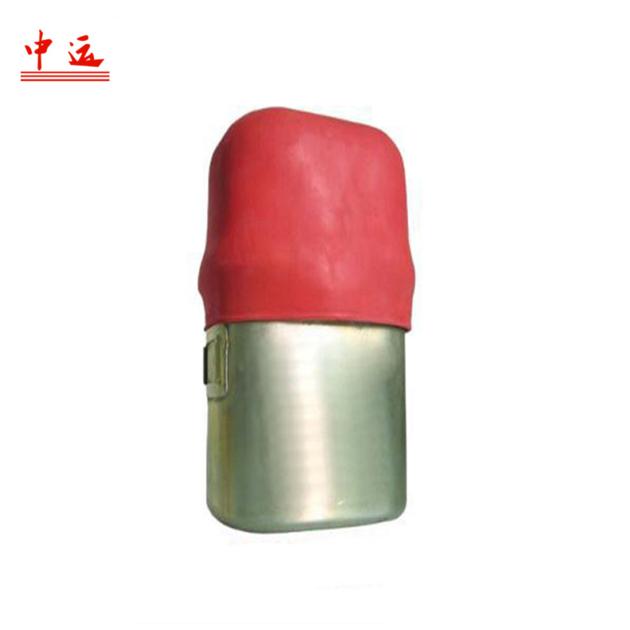

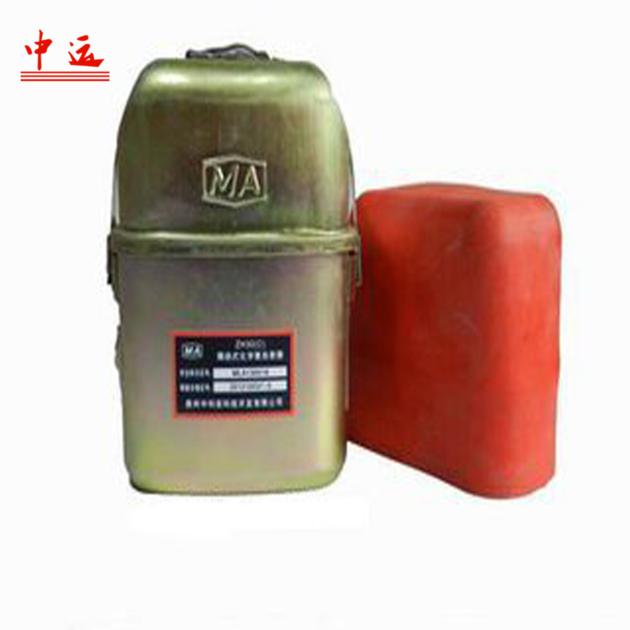

ZH Series Isolated Chemical Oxygen Self Rescuer

Mainly used in coal mines or ambient air pollution and toxic gases occurring hypoxic choking hazard, the site quickly worn to protect people fleeing the disaster area normal breathing.
chemical oxygen self-rescuer respiratory protection for the respiratory gas reciprocating,
using KO2 flaky oxygen oxygen enerating agent, candles starter. Breath by mouth with oxygen bottles of medicine into the raw produce oxygen absorb carbon dioxide, oxygen-containing gas into the airbag. Inhale, airbag gas purification by re-entering the mouth with bottles of medicine, oral inhalation,
because oxygen generating agent in oxygen uptake than raw speed of the body consumes oxygen, respiratory protection when the gas is greater than the exhaust valve opening pressure, exhaust automatically open the exhaust valve, lower than the exhaust pressure, exhaust valve automatically shut down to protect the respiratory isolation with the outside atmosphere.
Oxygen generating process main reaction equation is:
2KO2+H2O→2KOH+1.5 O2+heat
2KOH+CO2→K2CO3+H2O+heat
Parameter of ZH Series Isolated Chemical Oxygen Self Rescuer
Item ZH15 ZH30 ZH45

other models available;

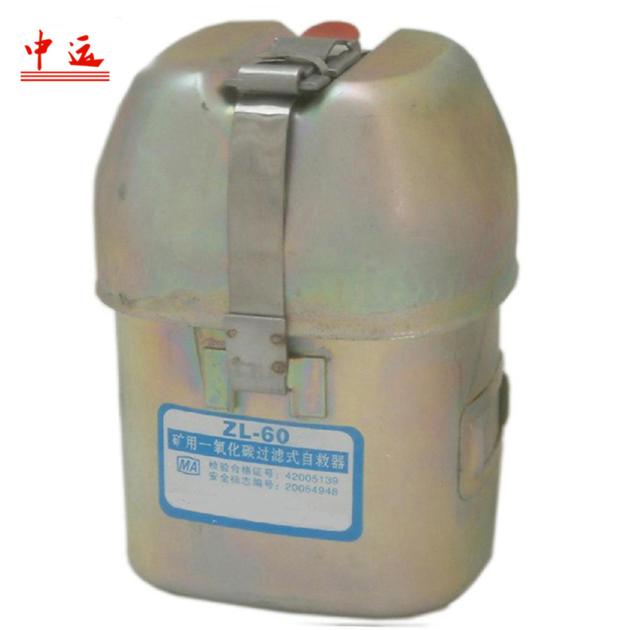

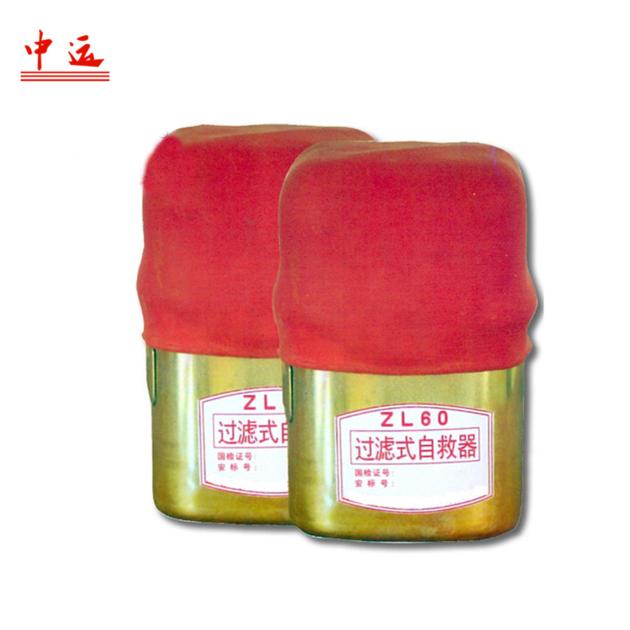

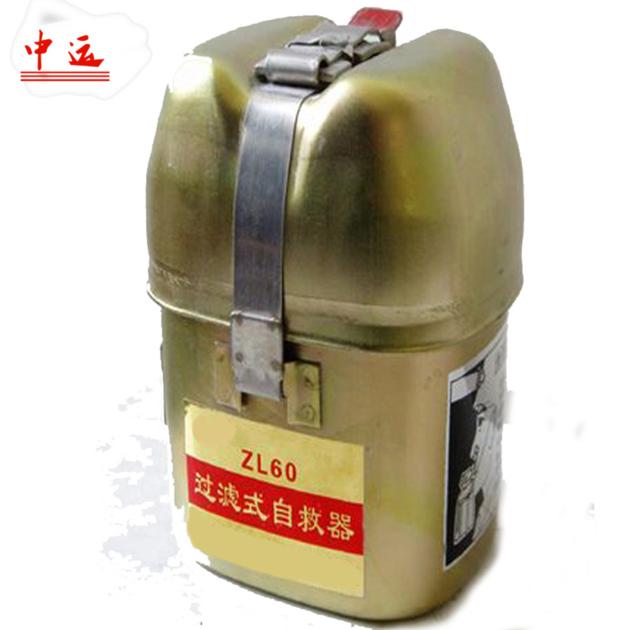

ZYX-30,ZYX-45,ZYX60,ZL60 etc.



Protection time >15min >30min >45min
Suction pressure ≤1200Pa ≤1200Pa ≤1200Pa
Temperature ≤60℃
Dimension 138×89×185mm 140×90×175mm 100×93×133mm
Weight 1.6kg 1.5kg 2kg

Valid
Storage 5years
carry 3years
