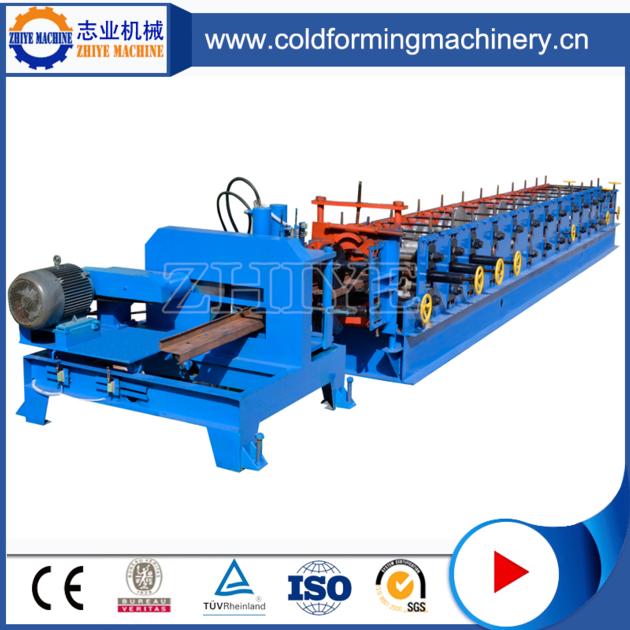

Z Purlin Roll Forming Machine And Cold Roll Forming Machine
| Price: | US$ 19500 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | TT |
| Port of Export: | Tianjin |
Product Details
| Model No.: | ZY | Brand Name: | ZY |
|---|
| Certification: | ISO9001 |
|---|---|
| Specification: |
Terms
Payment type 35% T/T prepaid and balance should be paid before loading Delivery time 30days after receving advance payment Guarantee period 18monthes free service/ pay service all the machine life Installation and training If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face. Without visiting, we will send you user manual and video to teach you to install and operate. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things. |
Packaging & Delivery
| Packaging: | nude |
|---|---|
| Delivery/Lead Time: | 35 days |
| Production Capacity: | 70 sets/month |
Product Description
Working flow:

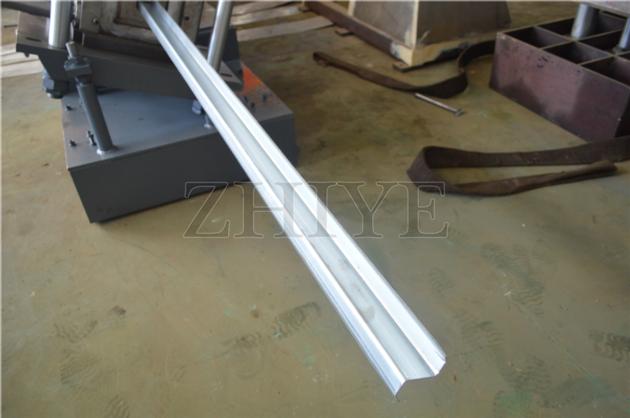

Decoiler-------feeding and leveling------roll forming------punching-------cutting-------finshed product
Component
Technical description
No. Name Qty
1. De-coiler 1 Set
2. Feeding and Guiding Device 1 Set
3. Roll Forming Machine 1 Set
4. Punching device 1Set
5. Hydraulic Cutting Device 1 Set
6. PLC Control Box 1 Set
7. Output table 1 Set
Techical description:
1)Decoiler
Decoiler Type: Manual decoiler
Weight capacity of decoiler: 5.0T
Inner diameter: 350-550mm
Outer diameter: 1200mm
2)Feeding and Leveling Device
It used for making the material flat before feeding into the roll forming machine.
Roller: 7rollers, 4up, 5down

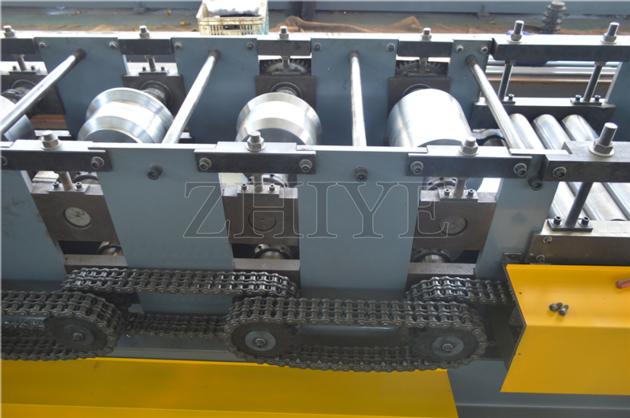

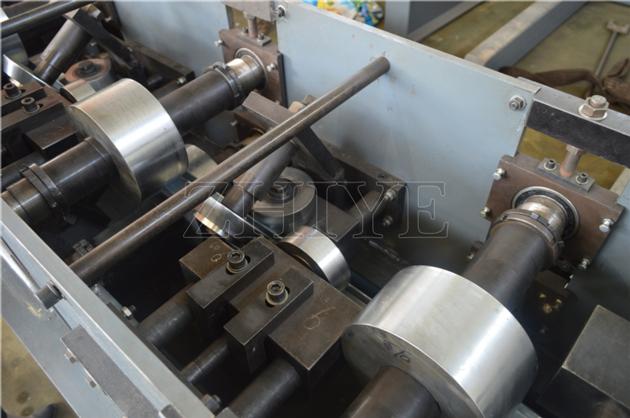

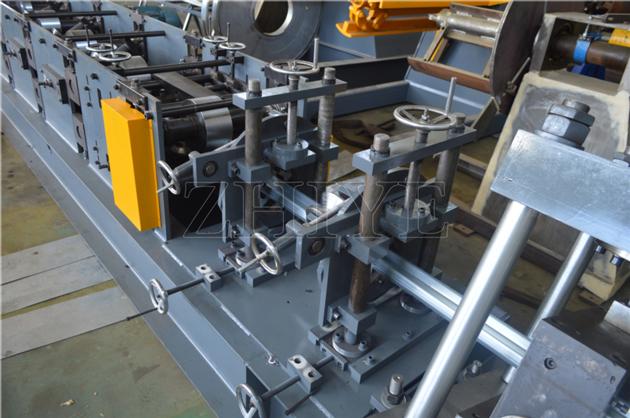

3)Rolling Forming System
It can change C Z shape automaticly and different size you just input data in PLC.
Main motor power: 11KW
Speed of forming: 8-12m/min
Material of roller: 45# steel polished and coated with chrome HRC55-60¦
Roller: 15 groups rollers
Material of main shaft: High grade No. 45 steel after treatment
Diameter of main shaft: ð 80mm
Driven: 1''chain
4) Hydraulic Punching & Cutting
Punching Type: Hydraulic Punching
Punching material: Cr12 steel after treatment
Punching die: Cr12 steel after treament
Cutting material: Cr12 steel after treatment
Hydraulic motor power: 5.5KW
5)Control system
Type: PLC Frequency Control System with touch screen
PLC Brand: Japan Panasonic
Encoder Brand: Omron
Length Error: § 2mm
