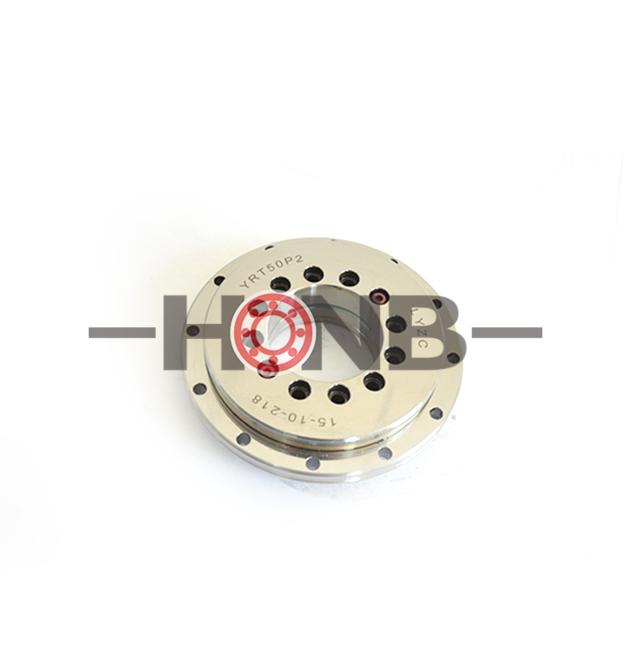

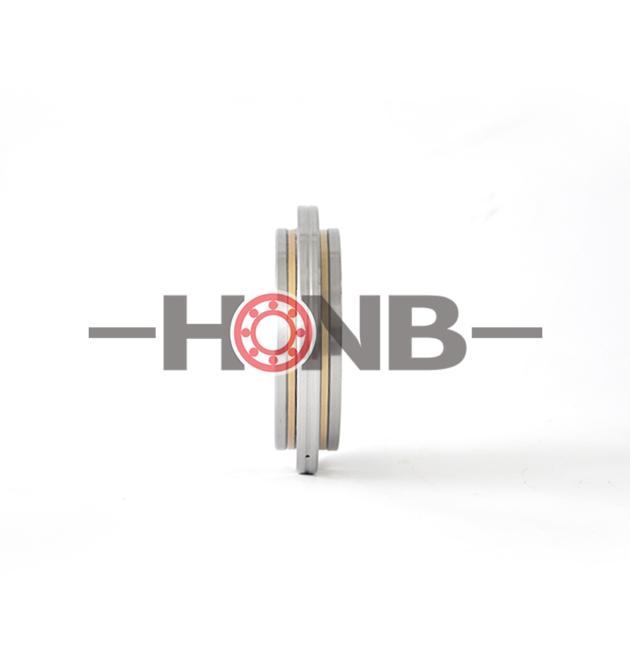

YRT50 rotary table bearing 50X126X30mm

YRT50 basic rotary table bearings are designed with a radial full roller, two groups of axial needle roller, cage assembly, an out ring, an L-section inner and the second ring. The out ring and inner ring have fixing holes, so the bolt can fix the bearings directly. YRT50 rotary table bearing structure can bear double-direction axial load, radial load and tilting moment. This series bearing have preload before leaving factory, no need to adjust clearance when installed. This series bearing is particularly suitable for the situation of high precision, high stiffness, low speed, and short rotate period such as rotary table, index heads and revolving milling heads. (HONBbearing06)
This kind of bearing has axial and radial running precision for your chosen.
Bearing characteristics:
1. High precision: P4 precision, P2 precision
2. High rigidity: This series bearing have preload
3. High load:This series bearing can bear double-direction axial load, radial load and tilting moment
4. High speed: YRTS series bearing can be applied to the situation of high rotating speed
Type size fixing hole

d D H H1 H2 C d1 dn dm inner ring outer ring
unit：mm do ds Ts QTY 4) dL QTY 4)
mm mm
YRT50 50 126 30 20 10 10 105 63 116 5.6 9 4.2 10 5.6 12
YRT80 80 146 35 23.35 11.65 12 130 92 138 5.6 10 4.2 10 4.6 12
YRT100 100 185 38 25 13 12 160 112 170 5.6 10 5.4 16 5.6 15
YRT120 120 210 40 26 14 12 184 135 195 7 11 6.2 22 7 21
YRT150 150 240 40 26 14 12 214 165 225 7 11 6.2 34 7 33
YRT180 180 280 43 29 14 15 244 194 260 7 11 6.2 46 7 45
YRT200 200 300 45 30 15 15 274 215 285 7 11 6.2 46 7 45
YRT260 260 385 55 36.5 18.5 18 345 280 365 9.3 15 8.2 34 9.3 33
YRT325 325 450 60 40 20 20 415 342 430 9.3 15 8.2 34 9.3 33
YRT395 395 525 65 42.5 22.5 20 486 415 505 9.3 15 8.2 46 9.3 45
YRT460 460 600 70 46 24 22 560 482 580 10 15 8.2 46 10 45
YRT580 580 750 90 60 30 30 700 610 720 11.4 18 11 46 11.4 42
YRT650 650 870 122 78 44 34 800 680 830 14 20 13 45 14 42
YRT850 850 1095 124 80.5 43.5 37 1018 890 1055 18.5 26 17 57 18.5 54
YRT950 950 1200 132 86 46 40 1130 990 1160 18.5 26 17 57 18.5 54
YRT1030 1030 1300 145 92.5 52.5 40 1215 1075 1255 18.5 26 17 66 18.5 66
YRT1200 1200 1490 164 108 56 52 1410 1240 1445 18.5 26 17 66 18.5 66
