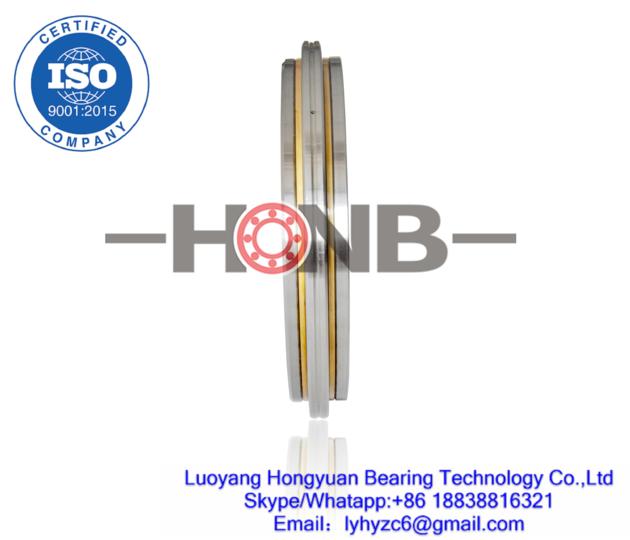

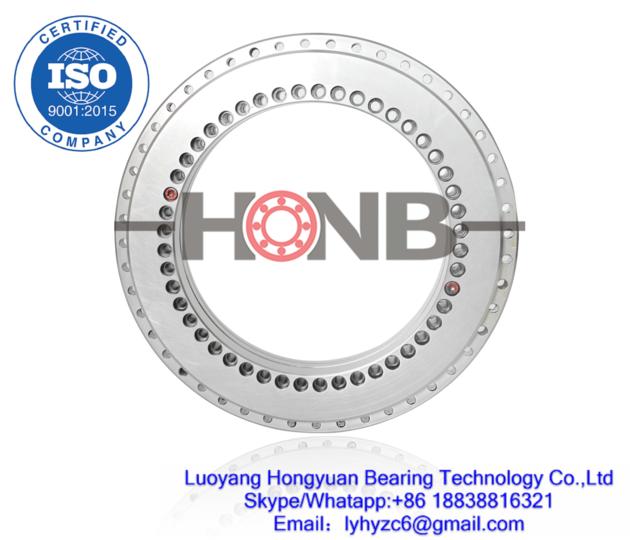

YRT395 rotary table bearing

YRT basic rotary table bearings are designed with a radial full roller, two groups of axial needle roller, cage assembly, an out ring, an L-section inner and the second ring. The out ring and inner ring have fixing holes, so the bolt can fix the bearings directly. YRT rotary table bearing structure can bear double-direction axial load, radial load and tilting moment. This series bearing have preload before leaving factory, no need to adjust clearance when installed. This series bearing is particularly suitable for the situation of high precision, high stiffness, low speed, and short rotate period such as rotary table, index heads and revolving milling heads.(HONBbearing06)
This kind of bearing has axial and radial running precision for your chosen.
Bearing characteristics:
1. High precision: P4 precision, P2 precision
2. High rigidity: This series bearing have preload
3. High load：This series bearing can bear double-direction axial load, radial load and tilting moment
4. High speed: YRTS series bearing can be applied to the situation of high rotating speed
