YCL125' DOUBLE SKINNED Roller Shutter Forming Machine,Shutter Door Forming Machine,

Price:	US$ 40000 / Set
Minimum Order:	1
Payment Terms:	30% advance payement; 70% by delivery
Port of Export:	Izmir - Turkey

Product Details

Model No.:	YCL DOUBLE SKİNNED 125	Brand Name:	YUCESAN

Certification:	CE, ISO 9001, ISO 14001, ISO 2001
Specification:	TECHNICAL SPECIFICATION • Number of stations/ press rollers sets: 12, • The gear shafts, bearing the press rollers, are fixed with ball bearings on both sides, • Diameter of the gear shaft: 45mm, • Profiling press rollers are made out of 4140 Special crack-proof steel and given a hardness of 55-58 HRC, • Characteristics of the steel sheets to be used: Sheet Width: Min. 143 mm Max. 145 mm, • The main motor and the reduction gear are connected to the lower chassis to control the press rollers from the center, • Power Transmission: with the main motor and reduction gear, • Motor = SIEMENS, • Reduction Gear= Finex, • Ball Bearings: SKF-ORS, • Different steel profiles and shapes can be produced by replacing the press rollers manually, • Profile Setting Time: 5-10 minutes, • Lenght Tracking= ENCODER, • Voltage = 220/ 380 Volt, • Remote Controlled, Mini Fire Extinguisher, High Safety standards with a Wire Mesh Upper Lid and Emergency Stop Button, a Pressure Indicator and an Oil Level Gauge, Calibration Unit: The finished profiles can be cut, by the special hydraulic cutting unit, to the desired length after passing through the shape calibrator; this unit is designed to be easily removable. The main cutting device is designed for a single cut shape for a single blade shape and for easy assembly and disassembly. Automation: PLC-Drive Group, Delta Electronic component = Telemechanic, SİEMENS AUTOMATIC INDUSTRIAL ROLL FORMING LINE: • The produced steel profiles are used in the industrial building sector, • The produced steel profiles are of high quality and robust and meet all the performance criteria of the European standard, • A profiling line consists of a decoiler, a roller forming machine, a Calibration Block, a Cutting / Guillotine block and a conveyor. FIELDS OF USE • Steel profiles for industrial buildings • Appropriate profiles according to order and demand

Certification:

CE, ISO 9001, ISO 14001, ISO 2001

Specification:

TECHNICAL SPECIFICATION
• Number of stations/ press rollers sets: 12,
• The gear shafts, bearing the press rollers, are fixed with ball bearings on both sides,
• Diameter of the gear shaft: 45mm,
• Profiling press rollers are made out of 4140 Special crack-proof steel and given a hardness of 55-58 HRC,
• Characteristics of the steel sheets to be used: Sheet Width: Min. 143 mm Max. 145 mm,
• The main motor and the reduction gear are connected to the lower chassis to control the press rollers from the center,
• Power Transmission: with the main motor and reduction gear,
• Motor = SIEMENS,
• Reduction Gear= Finex,
• Ball Bearings: SKF-ORS,
• Different steel profiles and shapes can be produced by replacing the press rollers manually,
• Profile Setting Time: 5-10 minutes,
• Lenght Tracking= ENCODER,
• Voltage = 220/ 380 Volt,

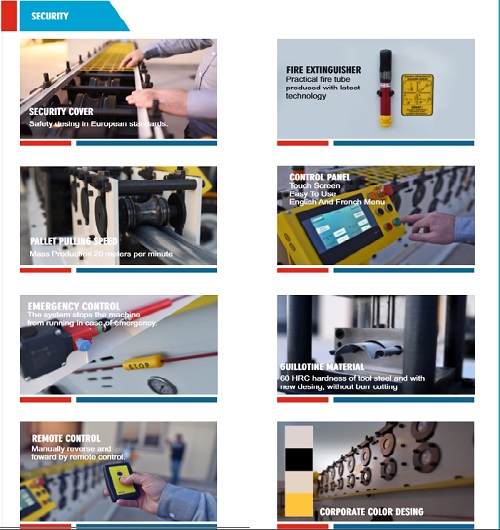

• Remote Controlled, Mini Fire Extinguisher, High Safety standards with a Wire Mesh Upper Lid and Emergency Stop Button, a Pressure Indicator and an Oil Level Gauge,
Calibration Unit: The finished profiles can be cut, by the special hydraulic cutting unit, to the desired length after passing through the shape calibrator; this unit is designed to be easily removable. The main cutting device is designed for a single cut shape for a single blade shape and for easy assembly and disassembly.
Automation: PLC-Drive Group, Delta
Electronic component = Telemechanic, SİEMENS
AUTOMATIC INDUSTRIAL ROLL FORMING LINE:
• The produced steel profiles are used in the industrial building sector,
• The produced steel profiles are of high quality and robust and meet all the performance criteria of the European standard,

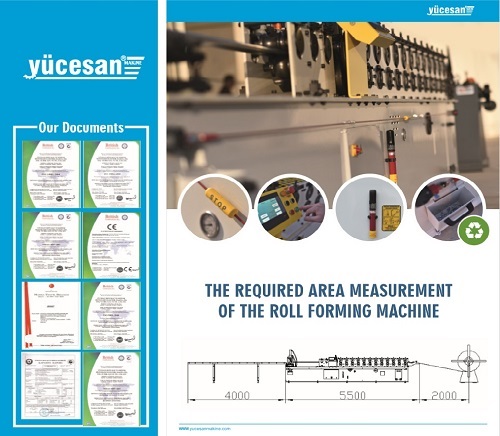

• A profiling line consists of a decoiler, a roller forming machine, a Calibration Block, a Cutting / Guillotine block and a conveyor.
FIELDS OF USE
• Steel profiles for industrial buildings
• Appropriate profiles according to order and demand

Packaging & Delivery

Packaging:	Standart
Delivery/Lead Time:	60 working days after receiving down payement
Production Capacity:	30 Machines/ Month

Product Description

STANDART CHARACTERISTICS
• Production Speed: 20 m/ Minutes (for the solid laths)
• Raw Material to be used: Galvanized Steel, Aluminium, Stainless Steel Black Steel
• Sheet Width:Min 181mm- Max. 184mm
• Sheet Thickness: Min. 0,50mm- Max. 1,00mm.
DECOILER
• Outer diameter of the coil: 1.200 mm
• Width of the coil: Max. 300 mm
• Load capacity: 1,000 kg
• Options: Mechanical Handling: Hand Brake- Electric Handling: Electric Motor

YCL125' DOUBLE SKINNED Roller Shutter Forming Machine,Shutter Door Forming Machine,

YCL125 DOUBLE SKINNED Roller Shutter Forming
