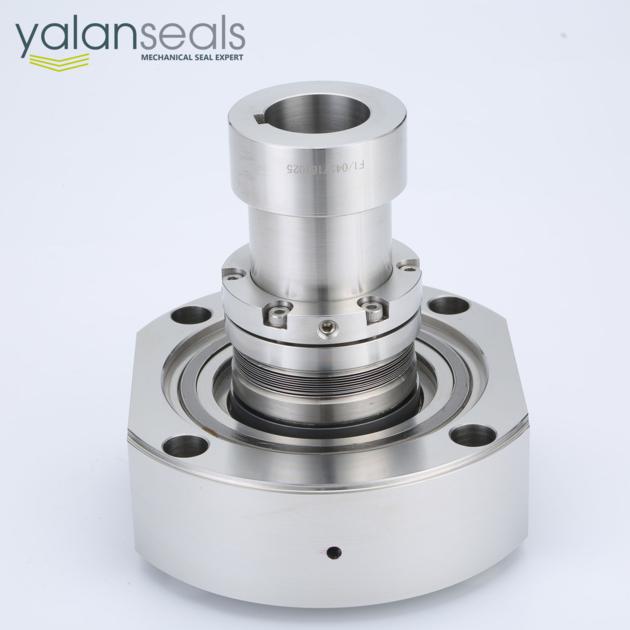

YALAN C65 Mechanical Seal for High-temperature Oil Pumps

Basic Features
Structure: Single-End
Pressure: Medium Pressure Mechanical Seals
Speed: High Speed Mechanical Seal
Temperature: High Temperature Mechanical Seal
Performance: Temperature
Standard: Standard
Model NO.: C65
Balance: Balanced
Specification: Inner Diameter: 20 mm to 100 mm
Product Detailed Description
C65 Mechanical Seal for High-temperature Oil Pumps

Structural Features: single end, balanced, independent direction of rotation, metal bellow, cartridge seal. the auxiliary seal ring is made of expanded graphite.

Industrial Standards: DIN24960

Scopes of Application: mainly used in high-temperature oil pumps. With the change of materials, such kind of seals can work with other types of high-temperature subjects as well such as corrosive ones.

Operation Parameters:
Pressure: 2.0 MPa or less
Temperature: - 40 ~ 350 ºC
Linear Speed: 15 m/s or less
Mediums: high-temperature mediums, such as high-temperature oil.

Customization: Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
