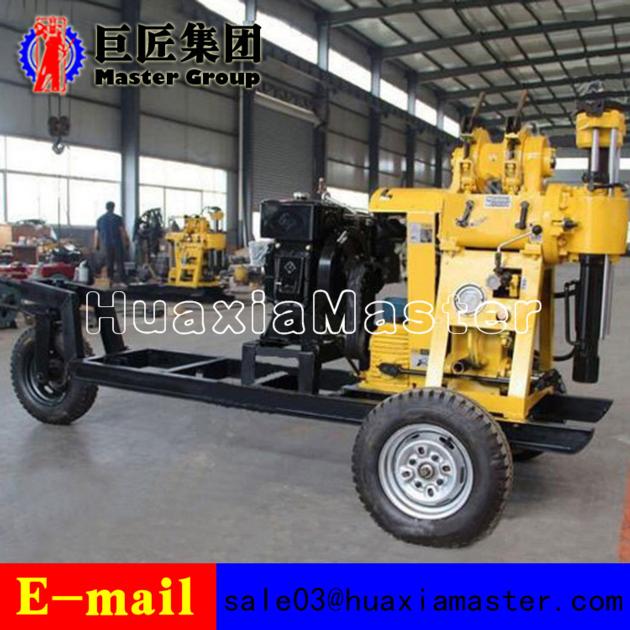

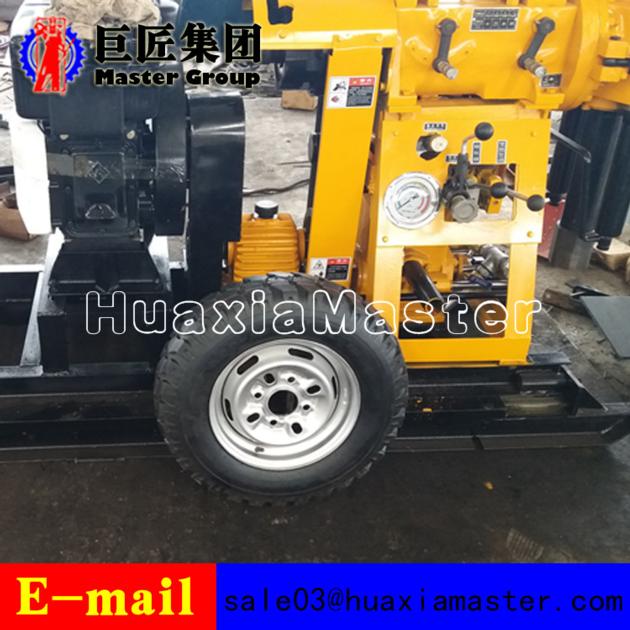

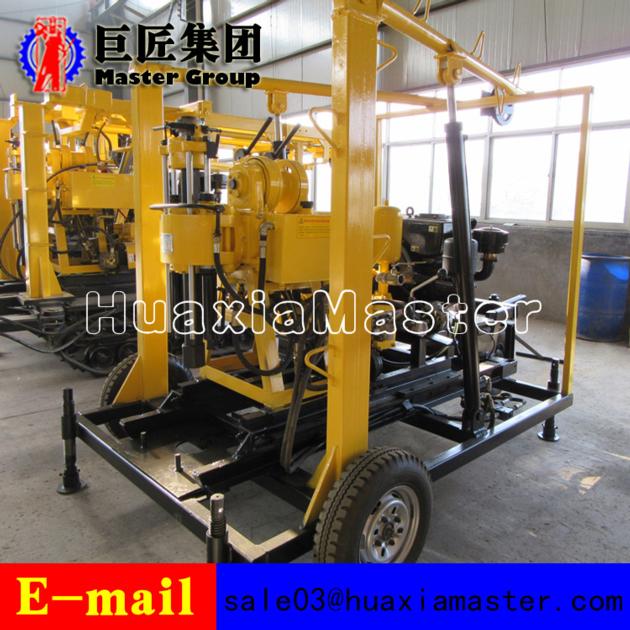

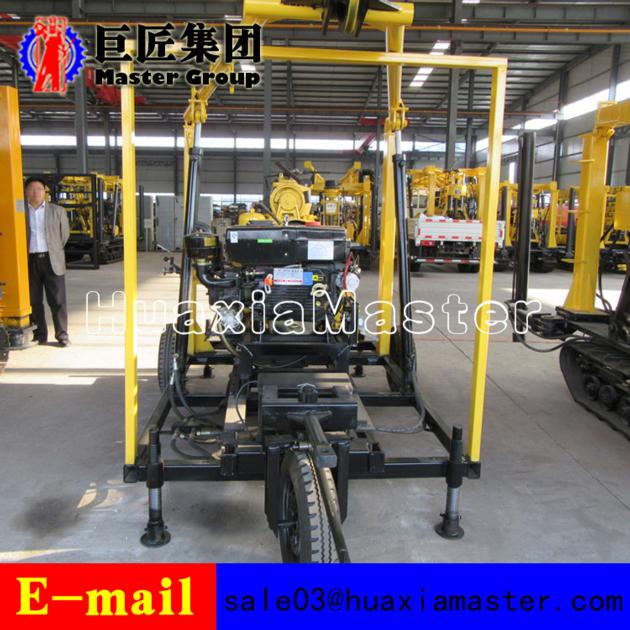

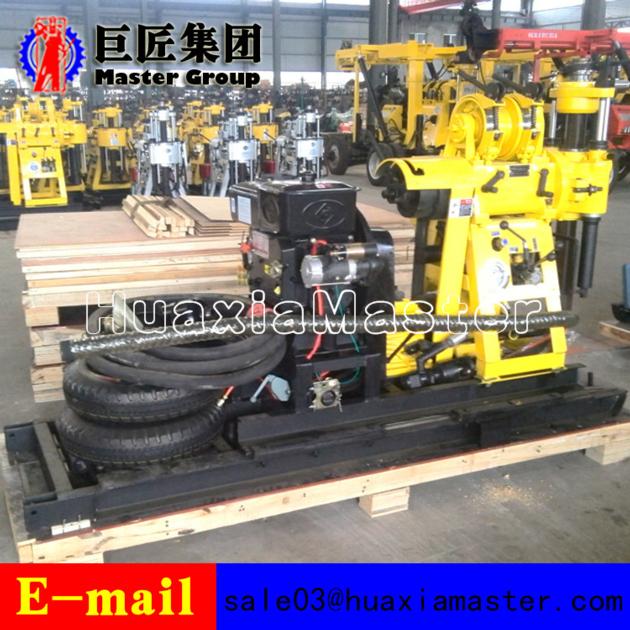

XYX-130 Water Well Drilling Rig For Sale
| Price: | US$ 4000 |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | xyx-130 | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
XYX-130 wheeled drilling rig Drilling depth 130m Maximum open hole diameter 220mm End hole diameter 75mm Drilling pipe diameter 50mm Drilling angle 90®-75® Drill rig weight 950kg Vertical Spindle Spindle rotating speed 142 285 570r/min Spindle stroke 450mm Windlass Maximum lifting weight of single rope 1600kg Maximum lifting speed of single rope 0.41/ 0.82/1.64m/s Drum diameter 140mm Wire rope diameter 13mm Drum capacity 27m Mud pump Model Horizontal single cylinder double action Displacement (diesel and electric engine, respectively) 95/77 l/min Maximum pressure 1.2mpa Working pressure 0.7mpa Water inlet pipe diameter 30mm Water outlet pipe diameter 20mm Triangular belt diameter B1575mm |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Keywords: wheel well drilling machine, water well drilling rig, hydraulic press machine 1.The applications of XYX-130 wheeled drilling rig
Field irrigation well, civil uses water well and so on; geological survey and exploration, basic exploration for roads and high-rise buildings, inspection holes for various concrete structures, river embankments, subgrade grouting holes.
2.The features of XYX-130 wheeled drilling rig
The rig is equipped with a wheeled walking mechanism, which is convenient for the whole machine to move
With oil pressure feeding mechanism to improve drilling efficiency.
The drill rig is equipped with a ball card holding mechanism instead of chuck, and it can be operated without stopping the rod. The working efficiency is high and the operation is convenient and safe and reliable.
Pressure gauges with hole bottom indicate pressure, so as to facilitate the control of the situation in the hole.
