XYC-3 Vehicle-mounted Hydraulic Core Drilling Rig
| Price: | US$ 4000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | xyc-3 | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
XYC-3 vehicle-mounted drilling rig
Drill depth 30-600 Drill hole diameter 300-75 Diameter of the end hole 75 Drill angle 90-75 Spindle forward rotary speed 30-1050 Spindle reverse rotary speed 29-137 Spindle stroke 600 Main winch lifting force (with single line) 3000 Main winch rope capacity 65 Lifting speed 0.3-1.9 Rope diameter 12.5 Drill mast height 7000 Drill effective height 6500 Driving drilling rod 59*53、70*63、79*89 Drilling rod diameter 42/50/60 Weight 3500 Engine Model:Yunnei YN27 BW-250 mud pump Rated flow (l/min) 250 Rated power(mpa) 7 Driving power(kw) 15 Host weight(kg) 500 Dimension(mm) 1110*994*665 Chassis Model The liberation of Qingdao truck 180 HP 4X2 truck Driving form 4*2 Engine Model BF4M2012-16E4 Emission standard GB17691-2005 Rated power (kw) 121 Rotary speed (r/min) 2200 External dimension (mm) 8998*2496*2900 |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Keywords: Vehicle-mounted drilling machine, core drilling rig machine, hydraulic machinery press
1.Main features of XYC-3 vehicle-mounted drilling rig

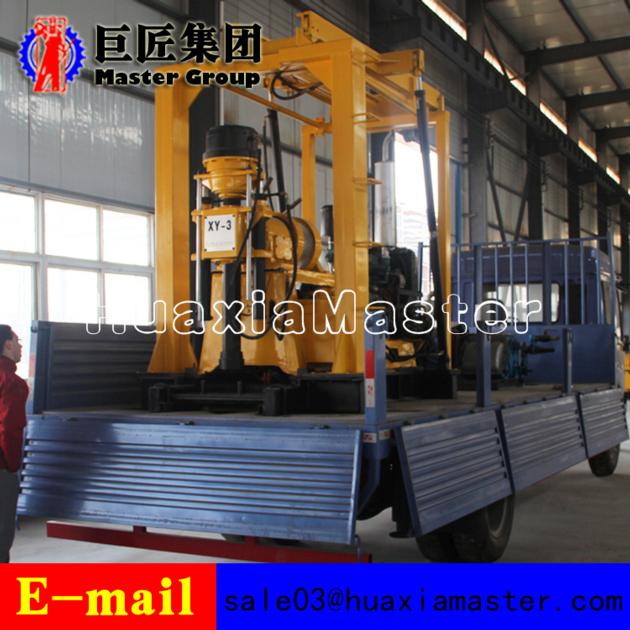

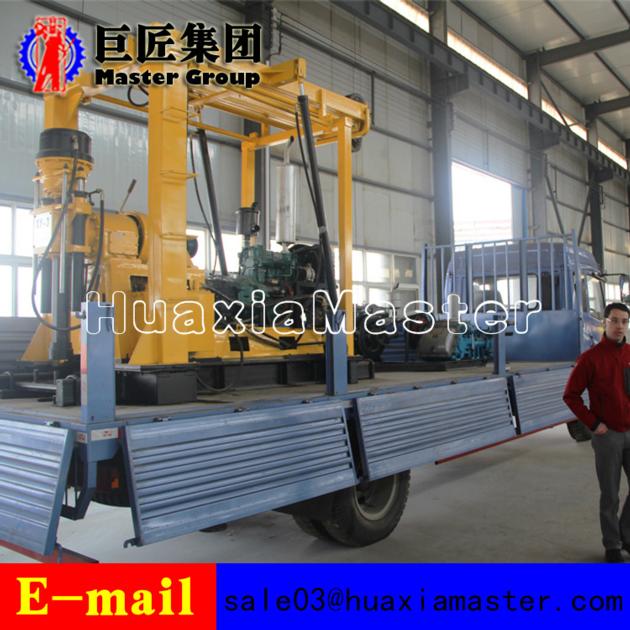

XYC-3 vehicle-mounted core drilling rig is a multi-function hydraulic vertical shaft rotary drilling rig.
The car chassis adopts Qingdao liberation truck chassis. The drilling rig transmission system and hoist, mud pump and other important accessories are all installed on the chassis. The layout is reasonable and compact. And the operation is simple.
The rig is equipped with high pressure and large flow BW-250 pump, which ensures the drilling depth and borehole diameter.
2. Applications of XYC-3 vehicle-mounted drilling rig
geological survey and exploration
road and high-rise building foundation exploration
all kinds of concrete structure inspection holes
river embankments
subgrade grouting holes
drilling and direct grouting
civil use water wells
ground temperature central air conditioners
|
