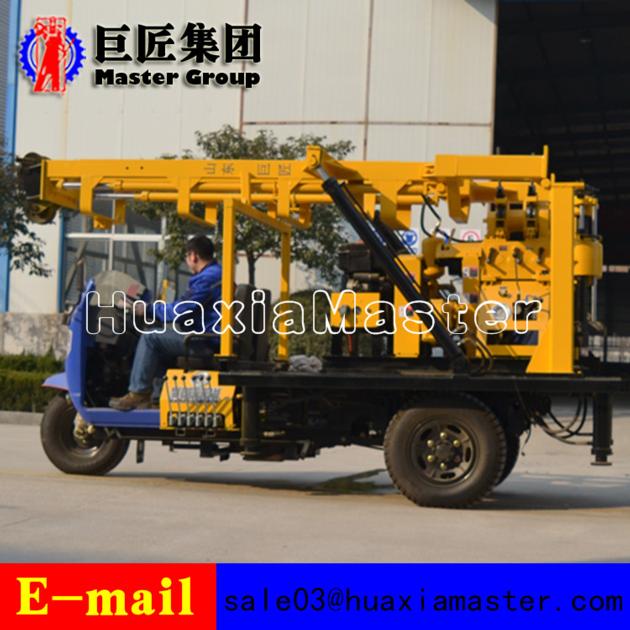

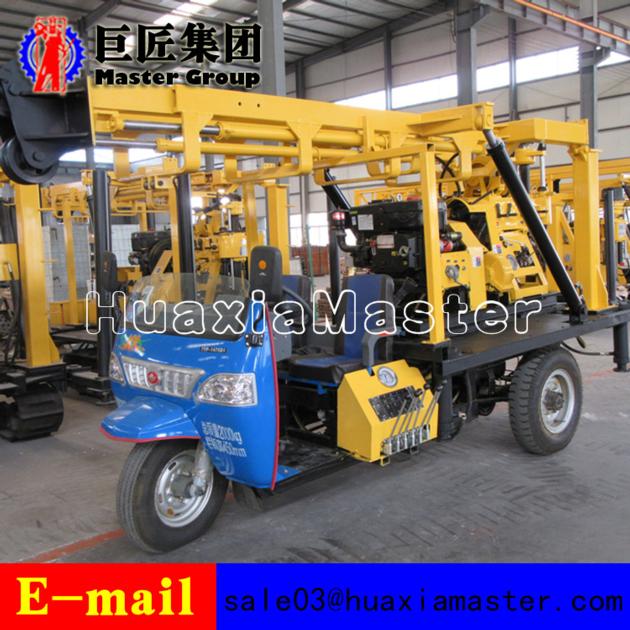

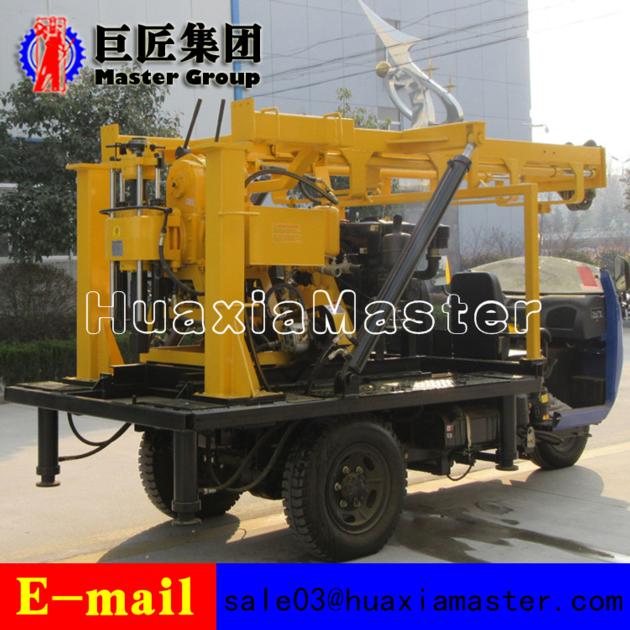

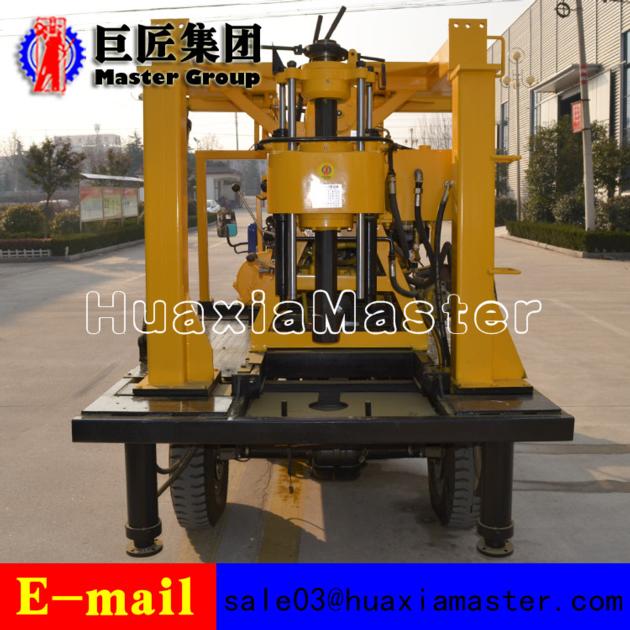

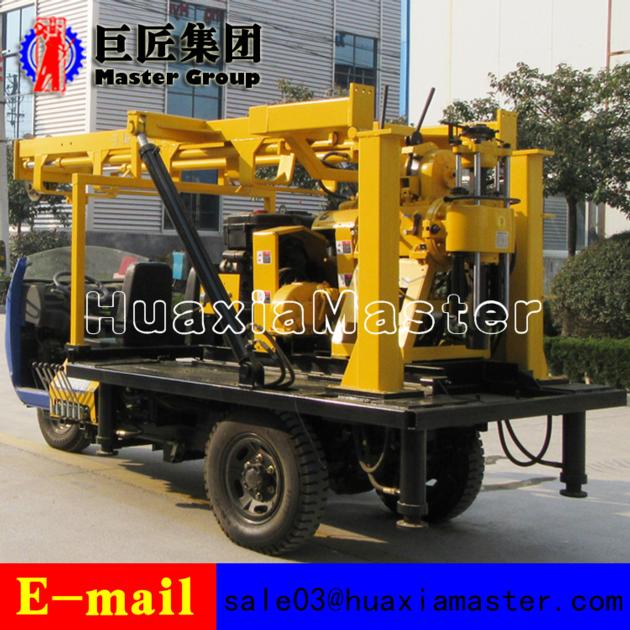

XYC-200A Tricycle Water Well Drilling Rig For Sale

Price: US$ 4000
Minimum Order: 1 set
Payment Terms: tt, lc
Port of Export: qingdao
Skype Me
Product Details
Model No.: xyc-200a Brand Name: Master Machinery
Certification: iso-9001
Specification: Drilling depth 200m
Maximum open hole diameter 75-260mm
End hole diameter(mm) 75
Drilling pipe diameter 50mm
Drilling tower height 6500mm
Drilling angle 90-75
Effective height of drilling tower (mm) 6500mm
Rig weight 1150kg
Spindle
Spindle rotating speed 64/128/287/557r/min
Spindle stroke 450mm
Windlass
Lifting power (single rope) 1600kg
Lifting speed (single rope) 17/35/75/151r/min
Tightrope diameter 12.5mm
Tightrope cubic Measure 35mm
Hug floodgate belt width 70mm
Mud pump
Type BW160
Discharge/displacement 170l/min.
Diesel S1115 22HP
Electric motor 15kw,1440r/min
Max. pressure 1.5mpa
Work pressure 0.7mpa
Water inlet diameter 30mm
Water outlet diameter 25mm
Triangle conveyre belt B1728mm
Chassis
Chassis model tricar 7YP-1475D1
Drive mode Rear wheel drive
Engine brand Changchai ZS1115E2.
Rated power 16.2kw/2200rpm
Packaging & Delivery
Packaging: wooden box
Delivery/Lead Time: 3 days
Production Capacity: 100 sets per month
Product Description
Keyword: tricycle water well drilling rig,water well drilling rig portable, water drilling rig machine
1.The applications of XYC-200A tricycle water well drilling rig
XYC-200A tricycle water well drilling rig mainly used for Made in China water well,field irrigation well, engineering water well,precipitation well and so on; geological general investigation and exploration, road and tall building foundation exploration, holes in concrete structure, river levees.
2.The features of XYC-200A tricycle water well drilling rig
XYC-200A tricycle water well drilling rigs is Multi-function hydraulic vehicle-mounted shaft rotary drilling machine .
The chassis of the vehicle is equipped with 7YD-1475DI, drilling rig drive system and important accessories such as hoisting and mud pump, which are reasonably compact and easy to operate.
XYC-200A drilling rig adopts BW160 pump, with high pressure and high flux, protectthe depth and hole diameter.
The tricycle drilling rig is equiped with shift unit,drilling rig can back and forward.
The highest speed can reach 1045r/min with 5 gears, improved drill efficiency
Adopted 53 x 59 drilling rod, high rigidity and strong delivery torque
Equipped with national patent technology---taper clutch, make the machine easy to operate and free maintenance.
Use large module planetary gear and add supporting frame, highly increased hoisting and braking ability of the winch.
Vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions.
