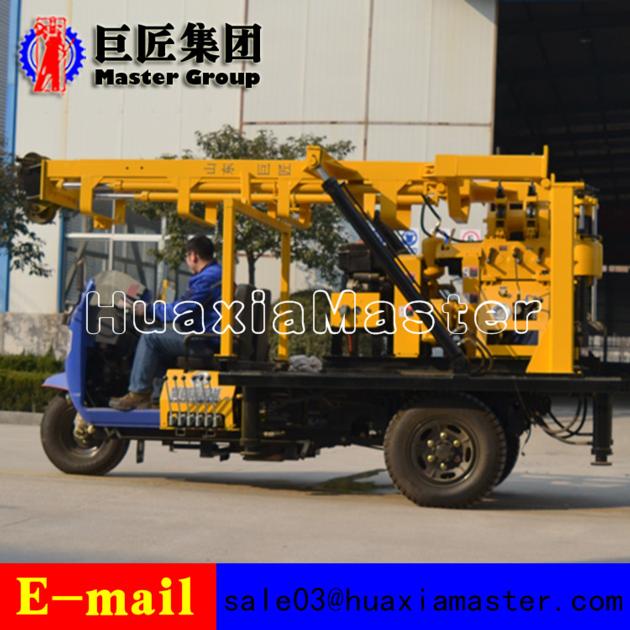

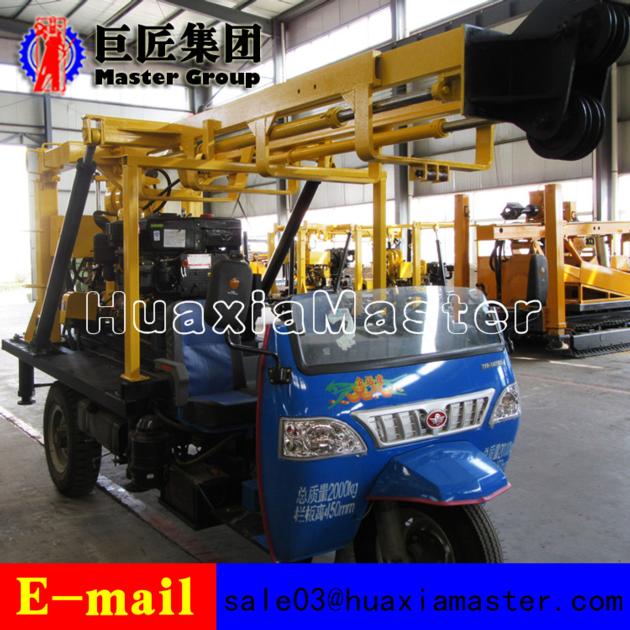

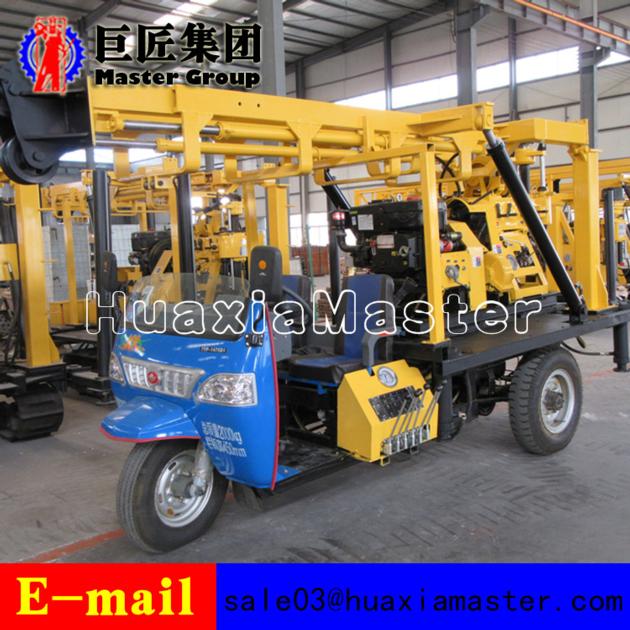

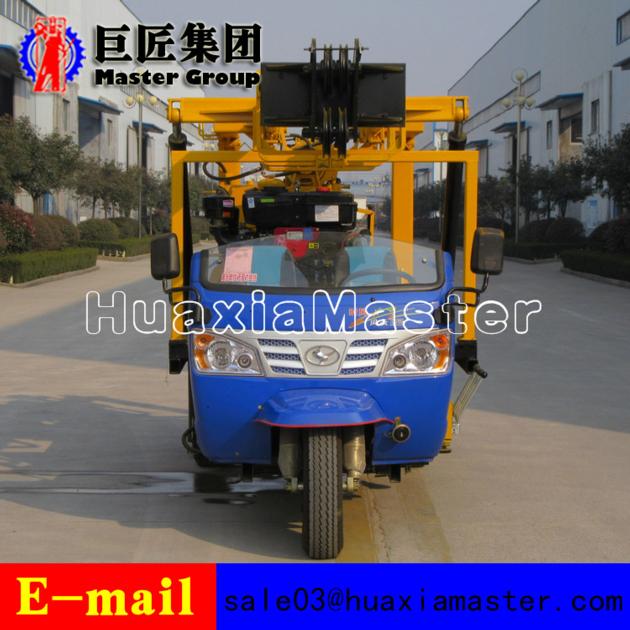

XYC-200A Tricycle-Mounted Hydraulic Rotary Drilling Rig
| Price: | US$ 4000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | xyc-200a | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
Drilling depth 200m
Max. open hole diameter 75-260mm End hole diameter(mm) 75 Drill rod diameter 50mm Drilling tower height 6500mm Drilling angle 90-75 Spindle Spindle speed 64/128/287/557r/min Spindle stroke 450mm Hoist Max. single line hoisting capacity 1600kg Single line lifting speed 17/35/75/151r/min Tightrope diameter 12.5mm Tightrope cubic measure 35mm Hug floodgate belt width 70mm Mud Pump Type Horizontal Single Urn Twin-action Discharge displacement 170l/min. Diesel S1115 22HP Electric motor 15kw,1440r/min Max. pressure 1.5mpa Work pressure 0.7mpa Water inlet diameter 30mm Water outlet diameter 25mm Triangle conveyre belt B1728mm Chassis Chassis model Tricar 7YP-1475D1 Drive mode Rear wheel drive Engine brand Changchai ZS1115E2. Rated power 16.2kw/2200rpm |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Keywords: Tricycle drilling rig, hydraulic core drilling rig, hydraulic drilling rig truck
XYC-200A tricycle drilling rig is mainly used for geological general investigation and exploration, road and tall building foundation exploration, holes in concrete structure, river levees, civil wells and earth temperature central air-conditioner.
1. Characteristic of XYC-200A tricycle-mounted drilling rig
XYC-200A tricycle drilling rigs is multi-function hydraulic vehicle-mounted rotary drilling machine .
The tricycle is Tricar 7YP-1475D1. The drilling rig, engine, BW-160 pump and hydraulic drill tower are all installed on the tricycle, so it us easy for transportation.
XYC-200A drilling rigs with BW160 pump which has high pressure and high flux, to ensure the drilling depth and hole diameter.
The tricycle drilling rig is equipped with shift unit,so the drilling rig can move back and forth
The highest speed can reach 1045r/min with 5 gears, which improves the drilling efficiency
The rig is Adopted 53x59 drilling rod, which has high rigidity and strong delivery torque
Equipped with national patent technology---taper clutch, made the machine easy to operate and free of maintenance.
Use large module planetary gear and add supporting frame, highly increased hoisting and braking ability of the winch.
Vertical spindle are fixed by four groups of bearings to ensure that the rotary machine is rigid enough for gravel layer and other complex geological conditions.
