XYC-200 Vehicle-mounted Hydraulic Rotary Drilling Rig
| Price: | US$ 4000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | xyc-200 | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
XYC-200 vehicular drilling rig
Drilling depth(m) 30-200 Drilling diameter(mm) 300-75 Drilling Angel(mm) 90-75 Spindle rotating speed(r/min) 64/128/287/557 Spindle stroke(mm) 450 Main hoisting capacity (single line)(Kg) 1600 Main hoisting line capacity (m) 35 Hoisting speed(r/s) 17/35/75/151 Wireline diameter(mm) 12.5 Mast height(mm) 7000 Mast effective height(mm) 6500 Kelly/active pipe(mm) 59*53 Drill rod(mm) 42/50/60 Drill rig weight(kg) 1150 Power Unit Model ZS1115 diesel engine Rated power 14.7kw/2200rpm BW-160 mud pump Rated flow(l/min) 160 Rated pressure(mpa) 1.3 Driving power(kw) 5.15 Main machine weight (kg) 190 Dimension(mm) 1110*725*965 Chassis Model 95hp light truck The 3.3 meter steeplechase double light card Drive mode 4*2 Power unit Model Quanchai 4B2-95C40 Emission standard GB3847-2005,GB17691-2005Ⅳ Rated power(kw) 70 Rotating speed(r/min) 3200 |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Keywords: Truck mounted Rotary drilling rig, vehicle-mounted type mobile drilling rig, full hydraulic core drilling rig
1. Characteristics of XYC-200 vehicle-mounted drilling rig

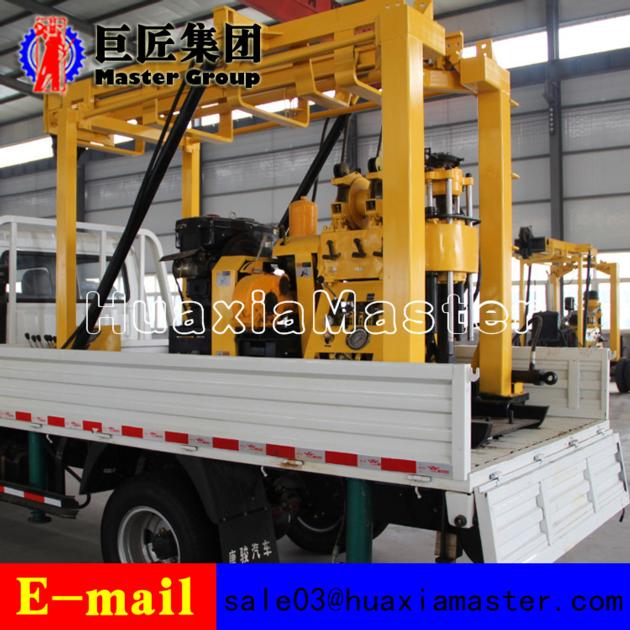

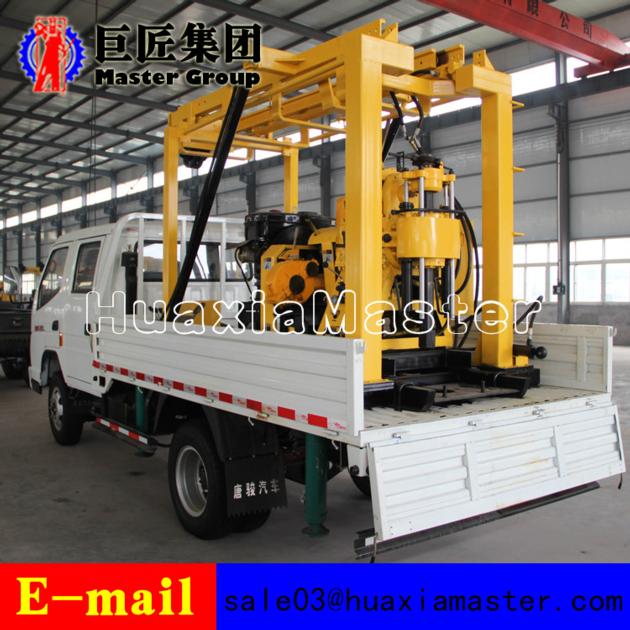

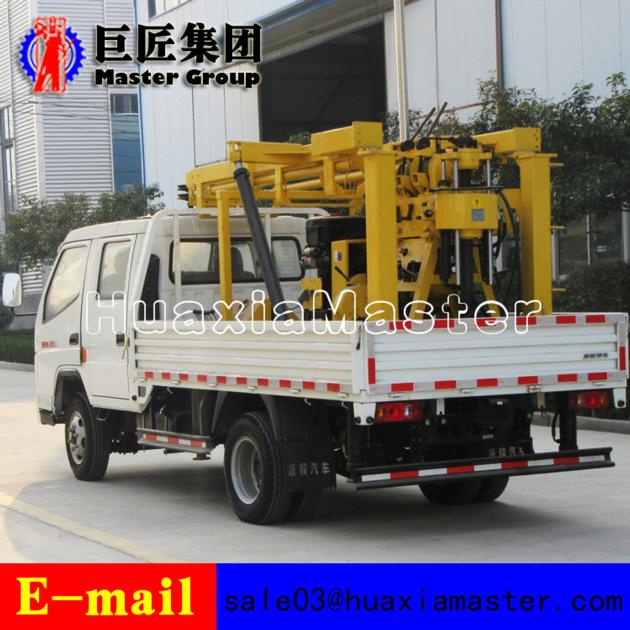

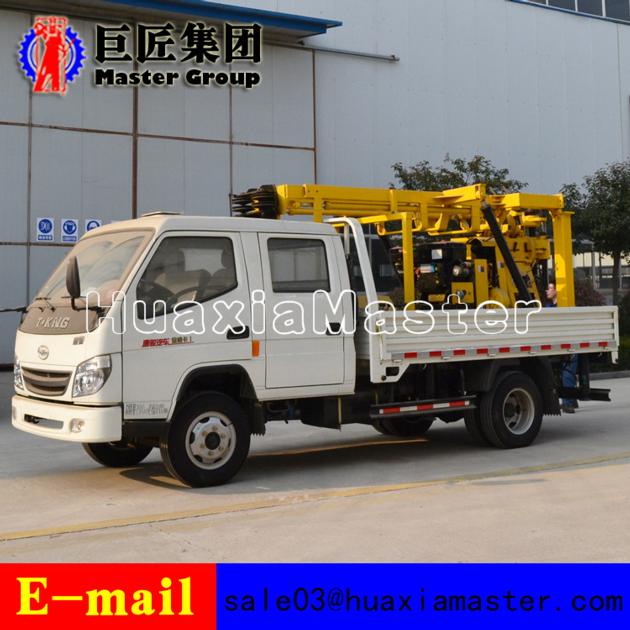

XYC-200 is a multi-function hydraulic vehicle-mounted rotary drilling rig.
the Tang Jun automobile chassis chassis, transmission system and rig winch, mud pump and other important accessories installed in the chassis. the layout is reasonable, compact, and easy to operate.
It is equipped with high pressure,big flow BW160mudpump,which can ensure drilling depth and diameter.
the rig has shifting device, it can move on the vehicle and is convenient to operate while drilling.
the hydraulic folding mast is safe and convenient to transport
2.Applications of XYC-200 drilling rig
road and high-rise building foundation exploration
all kinds of concrete structure inspection holes
river embankments
subgrade grouting holes
drilling and direct grouting
civil water well
ground temperature central air conditioners.
|
