XYC-200 Hydraulic Water Well Drilling Rig For Sale
| Price: | US$ 4000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | xyc-200 | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |

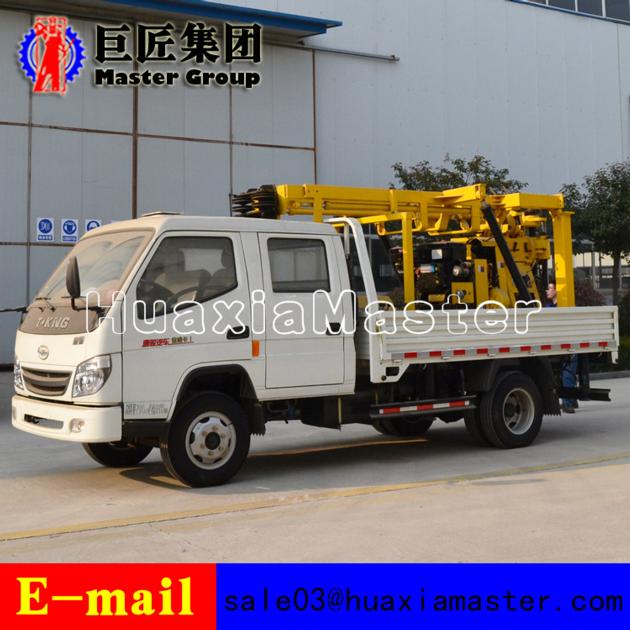

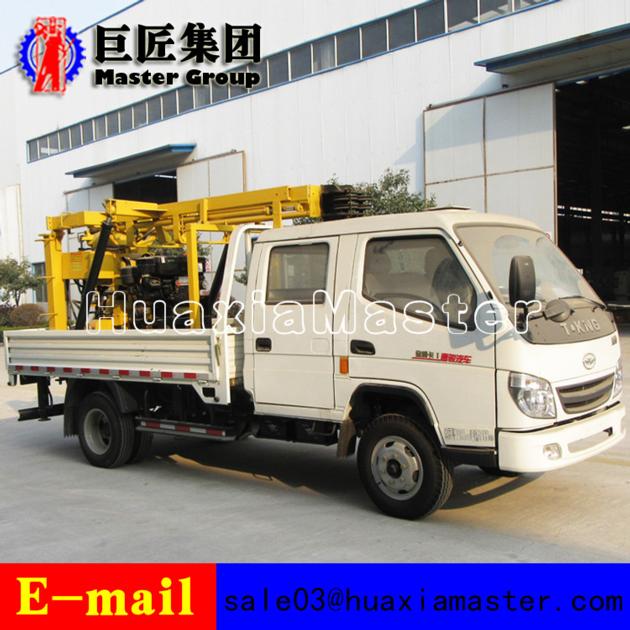

XYC-200 vehicle drilling rig
Drilling depth(m) 30-200 Drilling hole diameter(mm) 300-75 Drilling angel(mm) 90-75 Spindle rotating speed(r/min) 64/128/287/557 Spindle stroke(mm) 450 Windlass lifting power (single line)(Kg) 1600 Windlass capacity In terms of rope length 35 Windlass lifting speed(r/s) 17/35/75/151 Wire-rope diameter(mm) 12.5 Drilling tower height(mm) 7000 Drilling tower effective height(mm) 6500 Active drilling Pipe 59*53 Drilling pipe (mm) 42/50/60 Drilling rig weight(kg) 1150 Engine model ZS1115 diesel engine rated power 14.7kw/2200rpm BW-160 mud pump rated flow(l/min) 160 rated pressure(mpa) 1.3 driven power(kw) 5.15 main engine weight(kg) 190 External dimension(mm) 1110*725*965 Chassis model 95hp light truckdual row column plate light card 3.3 meterdual row column plate light card driven-type 4*2 Engine model quanchai 4B2-95C40 emission standard GB3847-2005,GB17691-2005 rated power (kw) 70 rotating speed (r/min) 3200 |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
keyword: vehicle drilling rig, hydraulic press machine, water well drilling rig
1.The features of XYC-200 water well drilling rig
XYC-200 is a multi-function hydraulic vehicle mounted rotary spindel drilling rig.
The Tang Jun goldlika automobile chassis chassis, transmission system and rig winch, mud pump and other important accessories installed in the chassis, the layout is reasonable and compact, it’s easy to operate.
It configures BW160 mud pump, high pressure and big flow, which can ensure drilling depth and diameter.
The rig has shifting device, it can move on the vehicle, convenient to operate while drilling.
Hydraulic lifting and landing type automatic Telescopic drilling tower is safe and convenient to operate.
2.The applications of XYC-200 vehicle drilling rig
Water well,field irrigation well, engineering water well,precipitation well and so on; geological survey and exploration, road and high-rise building foundation exploration, and all kinds of concrete structure inspection holes, river embankments, subgrade grouting holes, drilling and direct grouting.
