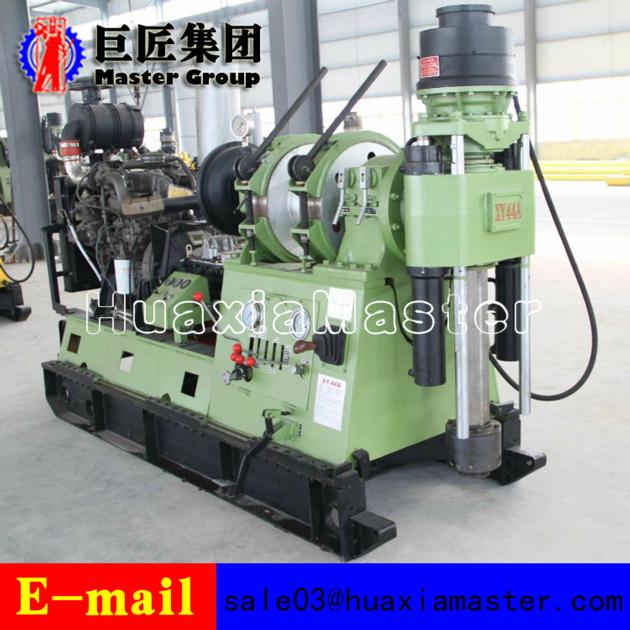

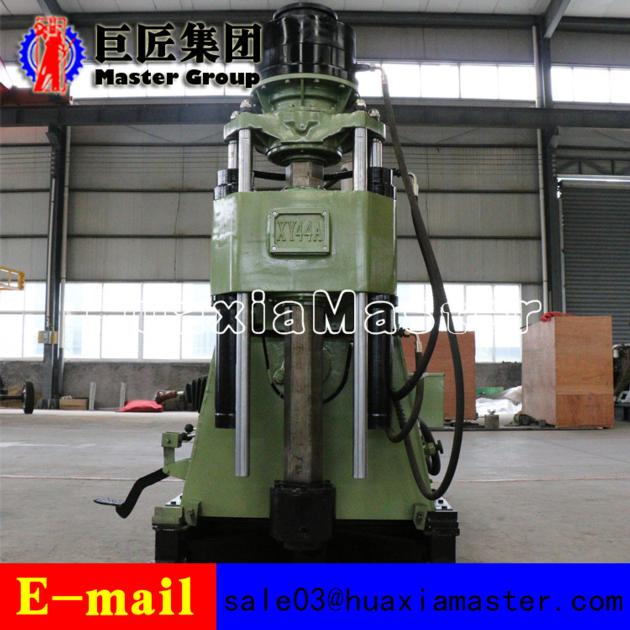

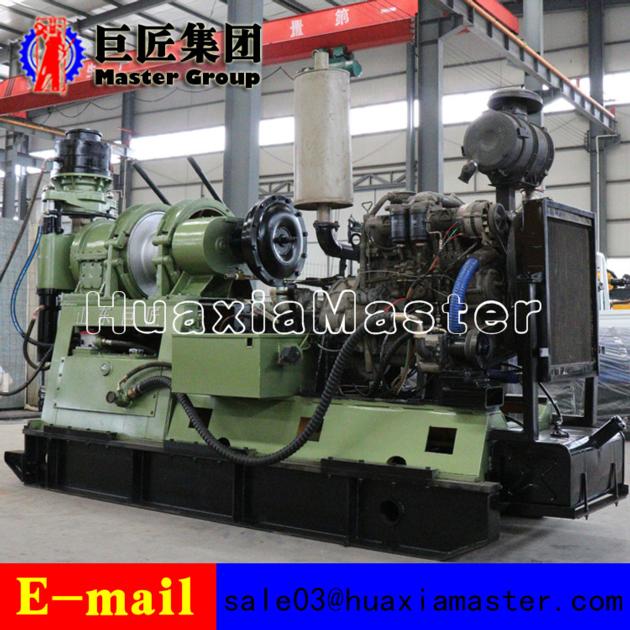

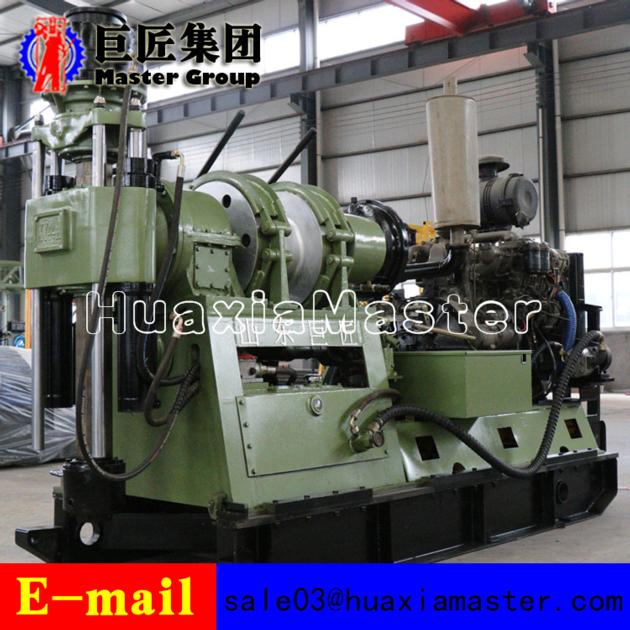

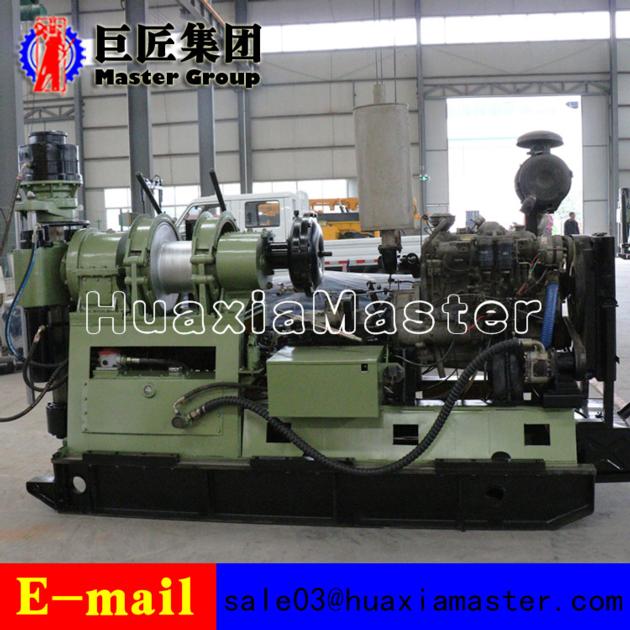

XY-44A Hydraulic Drilling Rig
| Price: | US$ 4000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | xy-44a | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
XY-44A hydraulic drilling rig
Drilling depth 600-1400m Max open hole caliber 300mm End hole caliber 75mm Drilling Rod diameter 60mm Drilling angle 90-65 Drill rig moving stroke 450mm Spindle Spindle speed ( Diesel Engine) Forward 60 97 169 187 276 301 284 487 521 847 1180 1490r/min Reverse 65 201r/min Spindle speed ( Electric Motor) Forward 50 81 141 155 230 251 320 406 434 706 984 1247r/min Reverse 54 167r/min Spindle stroke 600mm Spindle max. pressure force 90kn Spindle inner diameter 96mm Lifting capacity 120kn Main hoist Max.single line lifting capacity 45kn Max.single line lifting speed 0-45m/s Wire rope caliber 17.5-18.5mm Hoist capacity of wire line 90-110m Roller diameter 140mm Wirerope diameter 6mm Wire rope length 450m Mud pump Type BW-250 Displacement 250 l/min Work pressure 80kg/cm° Water inlet pipe diameter 75 mm Water outlet pipe diameter 50 mm Power Diesel engine YC4E135-1 100KW Electric motor Y225S-4 37KW |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Keywords: mobile drilling rig, hydraulic motor for drilling rig, hydraulic hard rock drilling machine
1. Characteristics of XY-44A hydraulic drilling rig
XY-44A exploration drilling rig is a multi-purpose spindle diamond core drilling rig suitable for high-speed medium and deep borehole drilling in complex rock formation. Huaxia Master core drilling rigs covers all the main foundation and drilling technologies with a range of models whose characteristics, capability and performance find application in every operating condition.
2. Applications of XY-44A hydraulic drilling rig
core drilling,
engineering geology exploration,
hydrology and water well drilling
large diameter foundation piles construction
