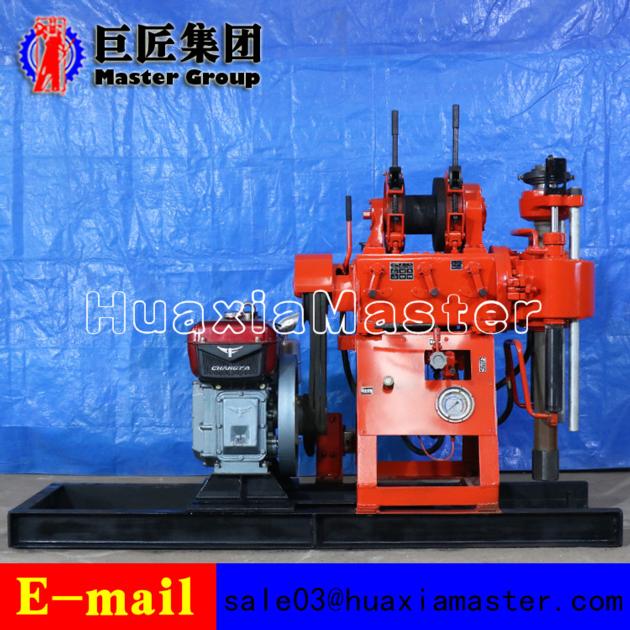

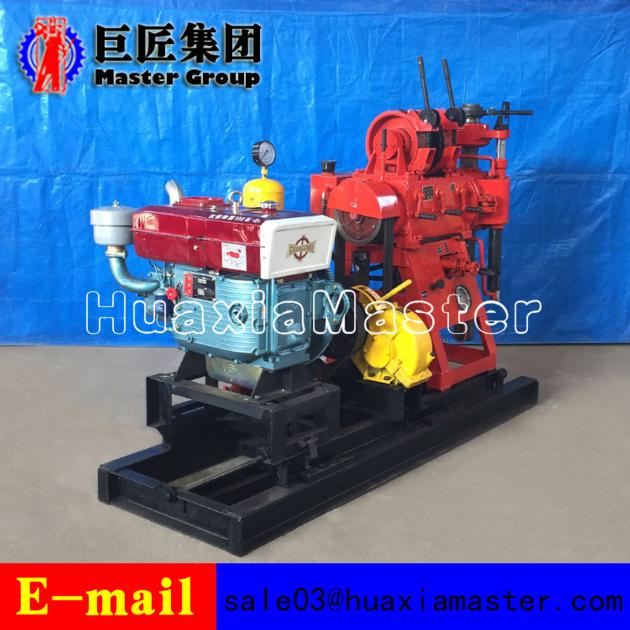

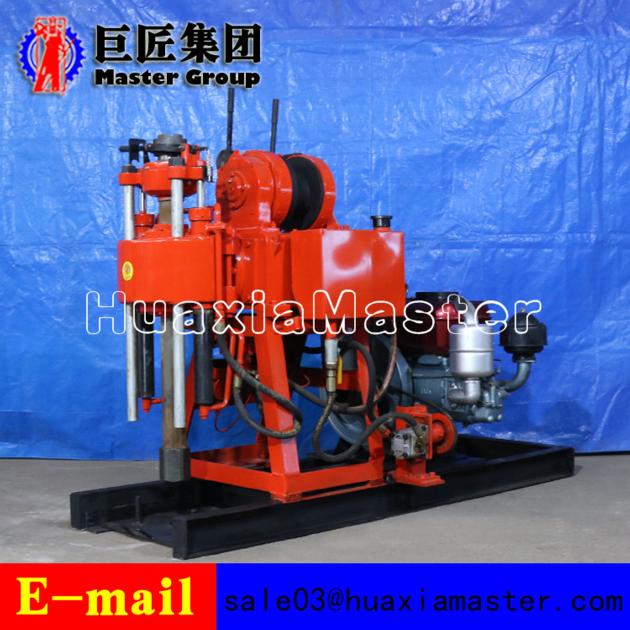

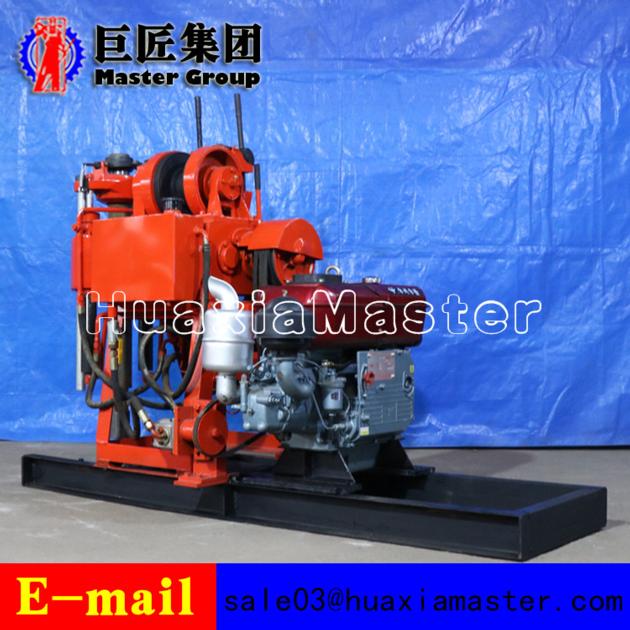

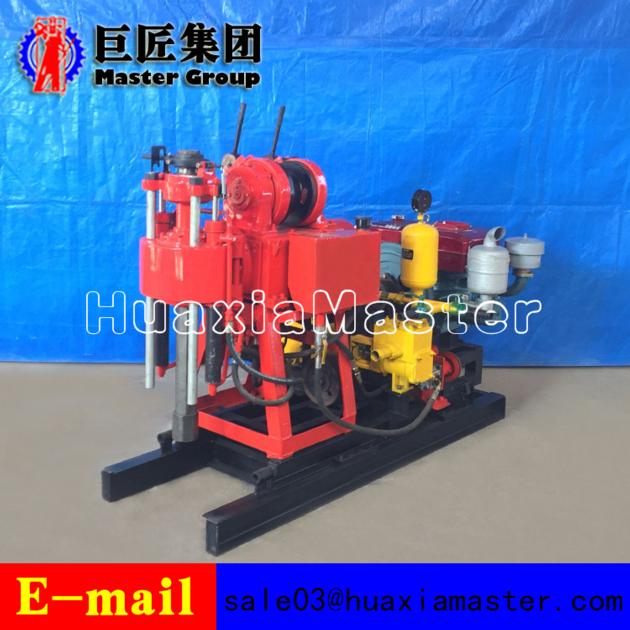

XY-200 Hydraulic Core Drilling Rig
| Price: | US$ 4000 |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | xy-200 | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
Maximum opening diameter 400mm
Maximum borehole depth 200m Diameter of the end hole 75mm Borehole dip angle 90-75® Machine overall size 2.75*0.95*1.60m Drill pipe diameter 50mm Weight of drill rig diameter of drill pipe (without power) 760kg A vertical scroll of painting Shaft rotation speed 71/142/310/20r/min Vertical axis stroke 450mm Windlass Maximum lifting weight of single rope 2008kb Drum lifting speed 17/35/75/160 rm/s Wire rope diameter: 13mm Wire rope capacity 35mm Width of sluice 70mm Mud pump Type: horizontal single cylinder double action flow：180L/min Maximum pressure 1.5mpa Working pressure 0.7mpa Inlet size 50mm Outlet pipe diameter 45mm Power Diesel oil 22hp Rated speed 2200r/min Electric machinery 15kw Rated speed 1460r/min |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Keywords: hydraulic hard rock drilling machine, core sample drilling rig, borehole drilling rig
1. Applications of XY-200 core drilling rig
Geological survey, geophysical exploration, road and high-rise building foundation exploration, wells, blasting holes and other drilling projects.
2. Parameters of XY-200 core drilling machine
Maximum opening diameter 400mm
Maximum borehole depth 200m
Diameter of the end hole 75mm
Borehole dip angle 90-75®
Machine overall size 2.75*0.95*1.60m
Drill pipe diameter 50mm
Weight of drill rig diameter of drill pipe (without power) 760kg
A vertical scroll of painting
Shaft rotation speed 71/142/310/20r/min
Vertical axis stroke 450mm
Windlass
Maximum lifting weight of single rope 2008kb
Drum lifting speed 17/35/75/160 rm/s
Wire rope diameter: 13mm
Wire rope capacity 35mm
Width of sluice 70mm
Mud pump
Type: horizontal single cylinder double action flow：180L/min
Maximum pressure 1.5mpa
Working pressure 0.7mpa
Inlet size 50mm
Outlet pipe diameter 45mm
Power
Diesel oil 22hp
Rated speed 2200r/min
Electric machinery 15kw
Rated speed 1460r/min
