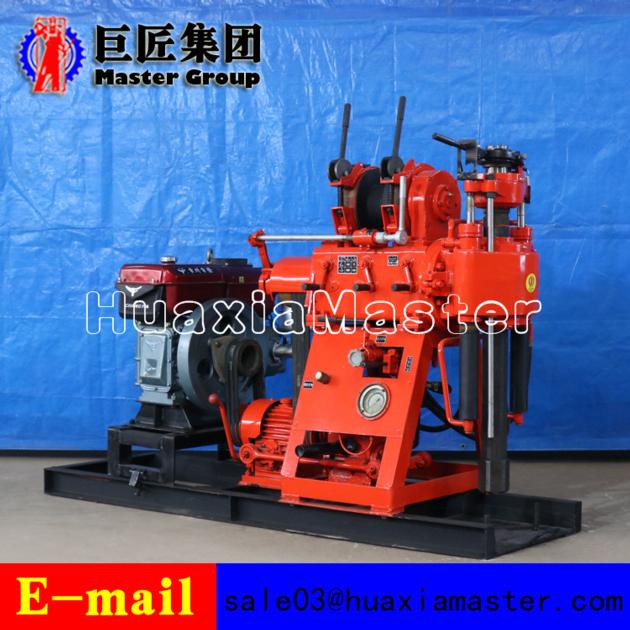

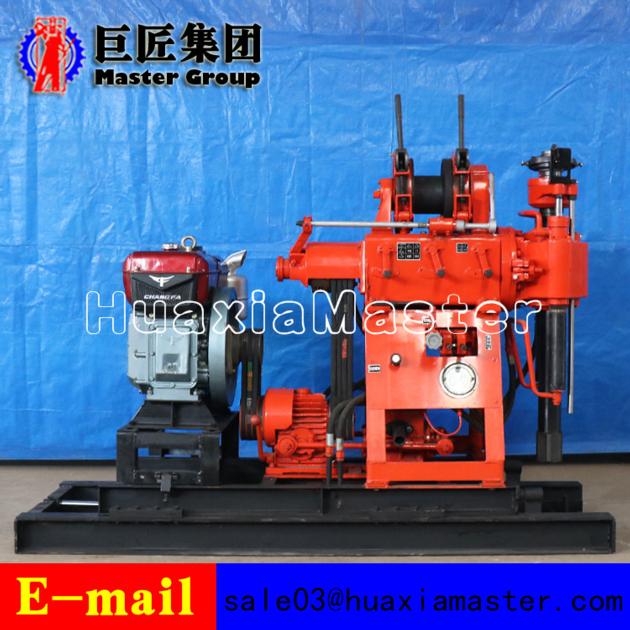

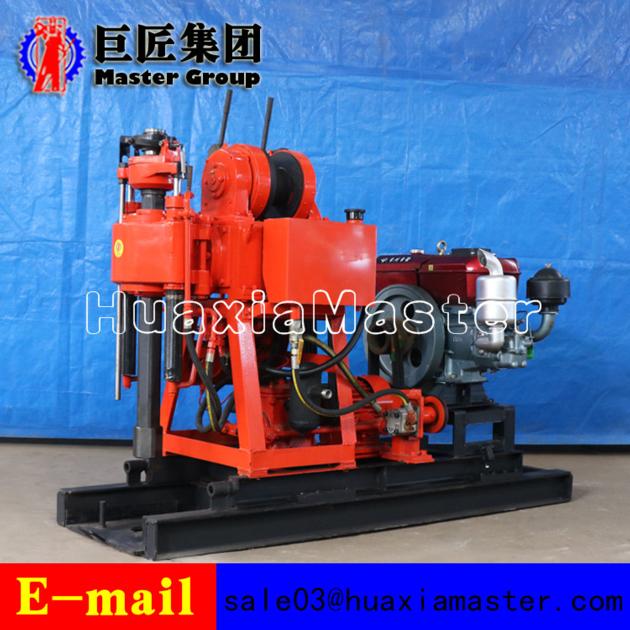

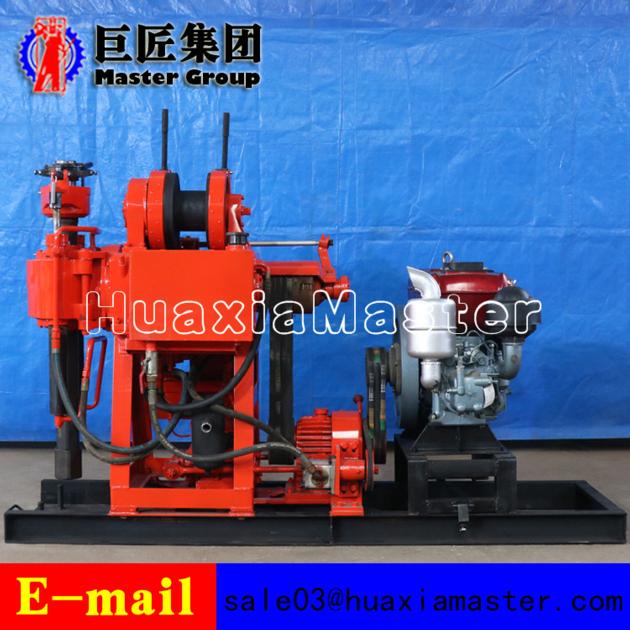

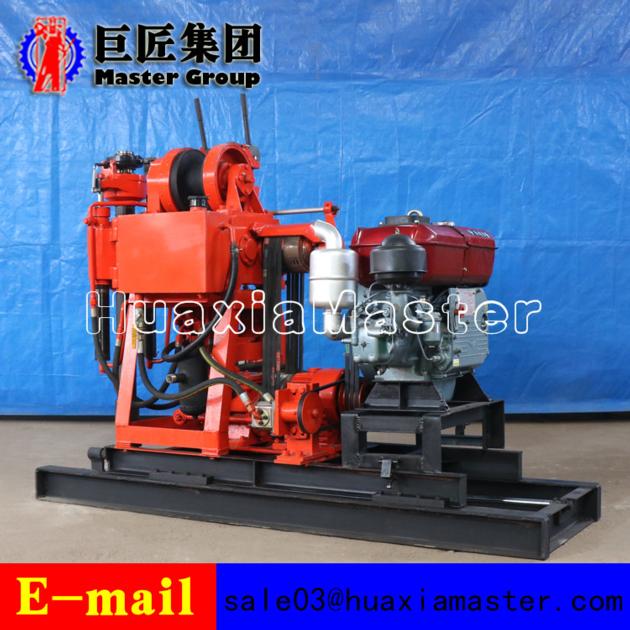

XY-180 Hydraulic Core Drilling Rig
| Price: | US$ 4000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | xy-180 | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
Drilling depth（m） 180/150/120/90/70/30
Borehole diameter（mm） 75/91/110/130/150/300 Maximum opening diameter（mm） 375 Drill pipe diameter（mm） 42/50 Spindle Speed (r/min) 71/142/310/620 Spindle Stroke（mm） 450 Upgrading Ability (KN) 15 Diameter of steel wire（mm） 12 Type gear pump Model YBC-12/80 Rated pressure (MPa) 8 Rated speed (r/m) 1500 Displacement（ml/r） 8 Power supply ZS1115 diesel engine and 15kw motor |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Keywords: core drilling rig, diamond core drilling rig, core drilling rig machine
1. Applications of XY-180 core drilling rig
The XY-180 drilling rig is designed on the basis of the XY-1A drill. It is a low speed and high torque portable drilling machine with oil pressure.
This drill rig is suitable for engineering geological survey of railway, hydropower, traffic, bridge, dam foundation and other buildings, geological core drilling and physical investigation, drilling holes for small holes and blasting holes, a small water well drilled.
