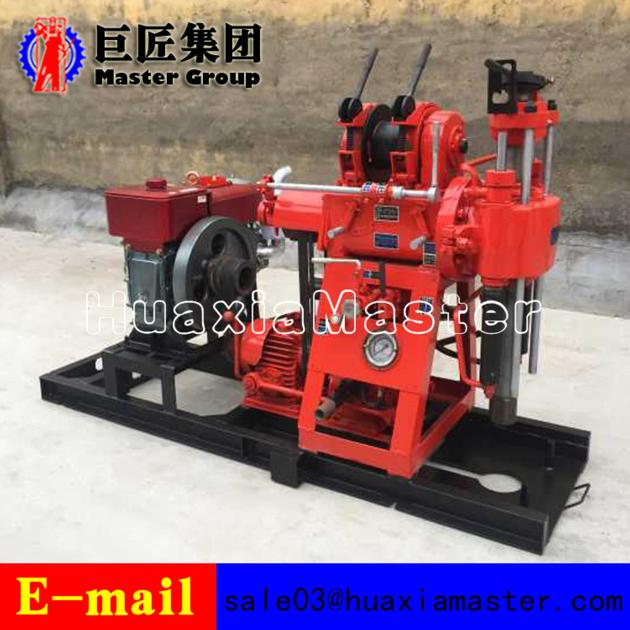

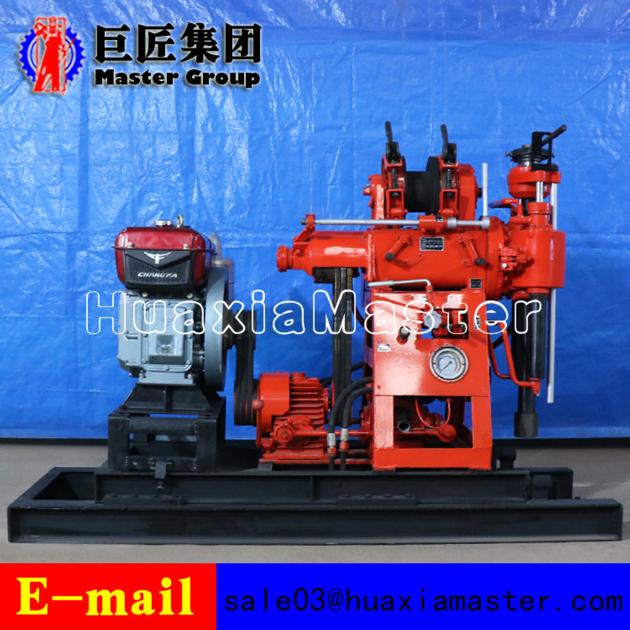

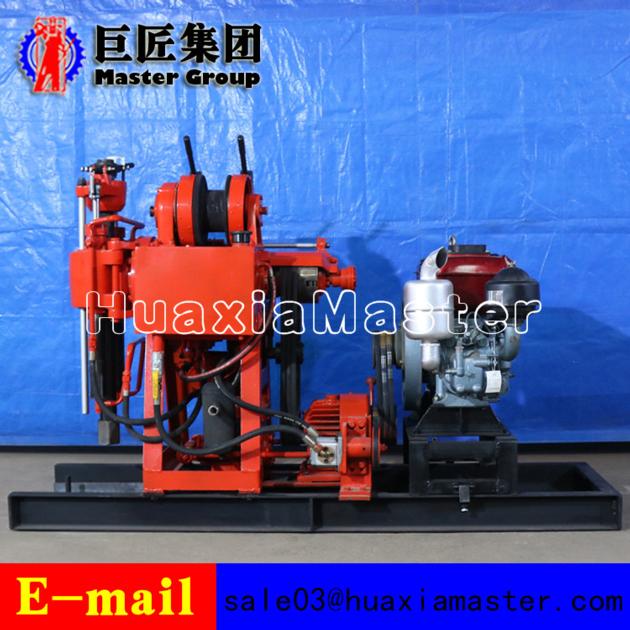

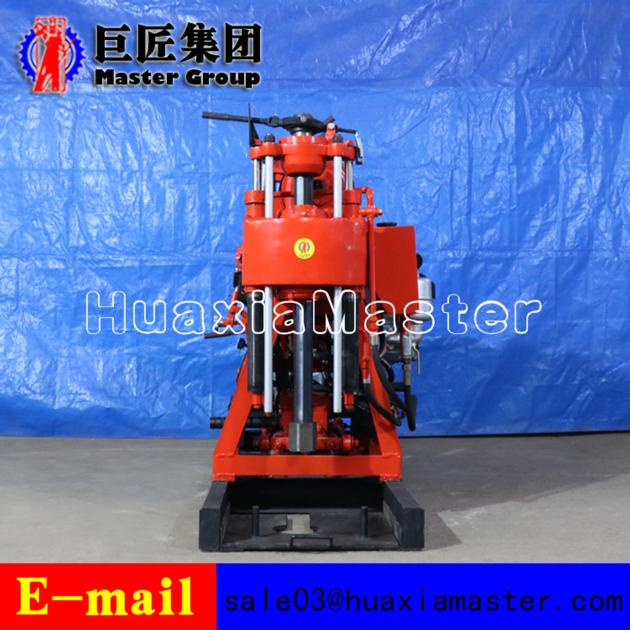

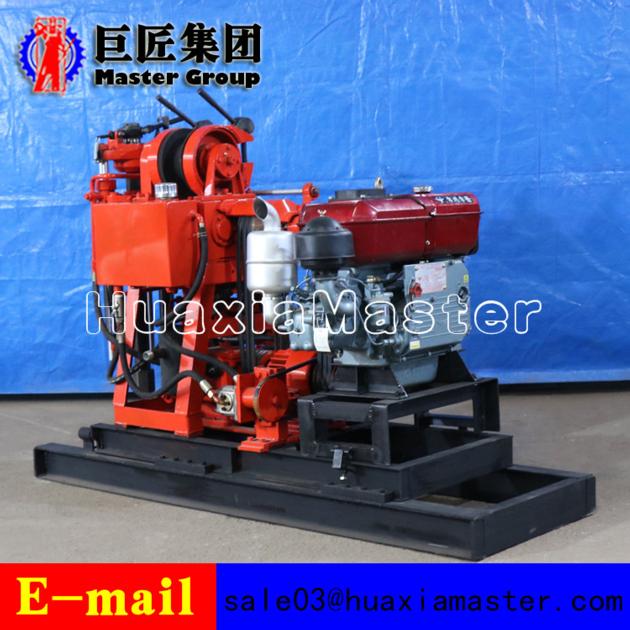

XY-100 Hydraulic Core Drilling Rig
| Price: | US$ 4000 / Set |
|---|---|
| Minimum Order: | 1 set |
| Payment Terms: | tt, lc |
| Port of Export: | qingdao |
Product Details
| Model No.: | xy-100 | Brand Name: | Master Machinery |
|---|
| Certification: | iso-9001 |
|---|---|
| Specification: |
Drilling depth 110
Maximum open hole caliber 220mm End hole caliber 75mm Drill rod caliber 50mm /42mm Drilling angle 90 Drilling rig weight (Exclude diesel engine) 610kg Unity machine dimensions 2.1*0.9*1.3m Spindle Spindle speed 130/300/480/730/830/1045 r/min Spindle stroke 450mm Hoist Max. lifting capacity with single rope 1600kg Lifting speed with single rope 1.06/0.67/0.32 m/s Wire rope caliber 13mm Wire rope cubic measure 35mm Hug floodgate caliber 254mm Hug floodgate belt width 50mm Distance between drill and hole 230mm Mud pump Type Horizontal single-urn twin-action Displacement (with diesel engine/electric motor) 170l/min Max. pressure 1.5mpa Work pressure 0.7mpa Power Diesel engine S1100 Electric motor Y160M-4 / 10KW |
Packaging & Delivery
| Packaging: | wooden box |
|---|---|
| Delivery/Lead Time: | 3 days |
| Production Capacity: | 100 sets per month |
Product Description
Keywords: Mining Core Drilling Machine, core sampling drilling rig, hydraulic press machine, geological prospecting rigs
1. Applications of XY-100 hydraulic drilling rig
XY-100 core drilling rig is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects, et
