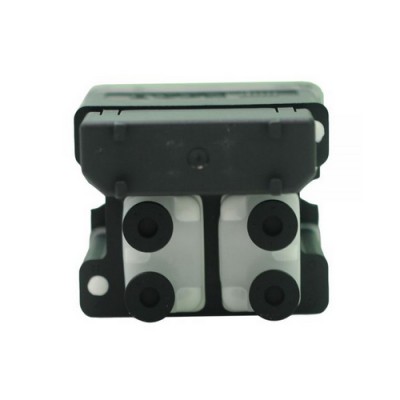

XAAR 1201/2.5PL Printhead (MITRA PRINT)

Price:	US$ 400.00 / Unit
Minimum Order:	1 - 5 Pcs
Payment Terms:	T / T, Western Union, Paypal, Money Gram
Port of Export:	CIF/Kualanamu International Airport

Product Details

Model No.:	XAAR 1201/2.5PL Printhead	Brand Name:	XAAR

Certification:
Specification:	XAAR 1201/2.5PL Printhead Compatible Printer: PRIMO X3500 UV Manufacturer: XAAR Best-in-class print quality The Xaar 1201 delivers a high print quality superior to other printheads in its class. • 8 grey levels at 600npi give an apparent resolution better than 1440dpi • Two printheads can be mounted inline to create an economical 4 colour printer delivering 600npi native resolution per colour • Alternatively with just four printheads, OEMs can design printers with 1200 npi by 1200 npi native resolution • The small drop size of 2.5 pL delivers the best combination of throughput and print quality for a range of applications. Variable drop size allows small drops for ultra-close viewing and large drops for long distance viewing. Highly versatile The Xaar 1201 incorporates a number of features which make it an extremely versatile printhead for banners and Point of Sale (POS) applications. • Capable of printing 1, 2 or 4 colours per printhead • Can be configured to print 4 colours at 300npi or 2 colours at 600npi depending on the price-point and end user profile that OEMs wish to target • Two pairs of interleaved rows means that OEMs have a choice of native resolution – the default resolution when running 4 colours is 300npi. Running 2 colours per printhead takes advantage of the nozzle row pair pre-alignment to achieve 600npi per colour • The Xaar 1201 jets solvent-based or aqueous inks. This means that it can be used to print a range of substrates including photo paper, vinyl, canvas and textiles. Physical Attributes Xaar 1201 Active Nozzles 1280 Print Swathe Width 27mm Colours 1, 2 or 4 Nozzles Pitch (Interleaved) 42.3μm Drop Velocity 7m/s Nozzle Density (NPI) 600npi Printhead Weight (Dry) 95g Ink Type Aqueous, Eco-sovlent, UV Drop Volume 2.5pL Number of Grey Levels 4 or 8 Maximum firing frequency 50kHz Dimensions (W x D x H) 52.7 x 45 x 76.2mm

Certification:

Specification:

XAAR 1201/2.5PL Printhead
Compatible Printer: PRIMO X3500 UV
Manufacturer: XAAR

Best-in-class print quality
The Xaar 1201 delivers a high print quality superior to other printheads in its class.
• 8 grey levels at 600npi give an apparent resolution better than 1440dpi
• Two printheads can be mounted inline to create an economical 4 colour printer delivering 600npi native resolution per colour
• Alternatively with just four printheads, OEMs can design printers with 1200 npi by 1200 npi native resolution
• The small drop size of 2.5 pL delivers the best combination of throughput and print quality for a range of applications. Variable drop size allows small drops for ultra-close viewing and large drops for long distance viewing.

Highly versatile
The Xaar 1201 incorporates a number of features which make it an extremely versatile printhead for banners and Point of Sale (POS) applications.
• Capable of printing 1, 2 or 4 colours per printhead
• Can be configured to print 4 colours at 300npi or 2 colours at 600npi depending on the price-point and end user profile that OEMs wish to target
• Two pairs of interleaved rows means that OEMs have a choice of native resolution – the default resolution when running 4 colours is 300npi. Running 2 colours per printhead takes advantage of the nozzle row pair pre-alignment to achieve 600npi per colour
• The Xaar 1201 jets solvent-based or aqueous inks. This means that it can be used to print a range of substrates including photo paper, vinyl, canvas and textiles.

Physical Attributes Xaar 1201
Active Nozzles 1280
Print Swathe Width 27mm
Colours 1, 2 or 4
Nozzles Pitch (Interleaved) 42.3μm
Drop Velocity 7m/s
Nozzle Density (NPI) 600npi
Printhead Weight (Dry) 95g
Ink Type Aqueous, Eco-sovlent, UV
Drop Volume 2.5pL
Number of Grey Levels 4 or 8
Maximum firing frequency 50kHz
Dimensions (W x D x H) 52.7 x 45 x 76.2mm

Packaging & Delivery

Packaging:	Box / DHL, UPS, FedEx
Delivery/Lead Time:	4 - 6 Days
Production Capacity:	50

Product Description

Price : USD 400.00/Pcs
Min Order : 1 - 5 Pcs
Lead Time : 3 – 5 Days
Port : CIF / Kualanamu International Airport
Terms : T / T, Western Union, Paypal, Money Gram
Shipment : FedEx, DHL, UPS
Product : Ori and Ready in stock

Buy XAAR 1201/2.5PL Printhead from Mitra Print is 100% safe,Because purchase products at Mitra Print provide a 100% money back guarantee. Location Mitra Print : Jl. S. Parman No.211 Medan. To purchase online visit the website :*

Mitra Print store Sell Brand model Printhead and Printers : Canon, Epson, Graptek, HP, Konica, Mimaki, Mutoh, Ricoh, Roland, Seiko, Spectra, Toshiba, Vutex, and Xaar.
Contact us : * Phone : +6281278075053 . Get the special price.
