X ray diffractometer (XRD)
| Price: | US$ 50000 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | TT |
| Port of Export: | Shenyang airport |
Product Details
| Model No.: | RD-2700A | Brand Name: | RST |
|---|
| Certification: | ISO9001 |
|---|---|
| Specification: |
Technical Specifications:
rated output power: 3kW tube voltage:10～60kV (1kV /step) tube current:5～50mA (1mA /step) tube voltage and tube current stability: ≤ 0.1‰ metal ceramic x-ray tube:2.4KW target material: Cu, Fe, Co, Cr, Mo focus dimension: 1x10mm, 0.4 x14mm, 2 x12mm one way repeatability of θd or θs: ≤0.0005® sample horizontal:θ-θ diffraction circle semi-diameter: 225mm, or made specially from 150mm to 285mm scanning rate: 0.0012®～50®/min positioning speed: 1500®/min Scanning mode: θs/θd linking action, single action,continuous,step and omg minimal stepping angle: 0.0001® precision of θd or θs: ≤0.001® 2θangle linearity: National standard sample (Si, Al2o3), with the range of full spectrum, all peak angle error is not within ¯0.02® Detector: Positive proportion or shinning (SC), silicon drifting detector (SDD), high speed one-dimensional semiconductor array detector counting method: Differential or integral, automatic PHA,fixed time correction energy resolution: ≤25% (PC, one-dimentional array), ≤50%(SC), ≤200ev(SDD) maximum linear counting rate: 5×105CPS, 15×104CPS，9×107CPS system measure stability: ≤0.01% outer dimension: 1000×800×600mm protection: over-voltage, over-current, over-power, no-voltage, break off water and X-ray tube’s over-temperature protection |
Packaging & Delivery
| Packaging: | BOX |
|---|---|
| Delivery/Lead Time: | 90 days |
| Production Capacity: | 20 per year |
Product Description
RST series X ray diffractometers (XRD) can be quickly set with a variety of accessories, with superior analytic
capabilities. X ray diffractometer is widely used for analyzing natural and synthetic inorganic and organic material, such as clay minerals, cement building materials, environment dust, chemical products, drugs, chemical products, drugs,

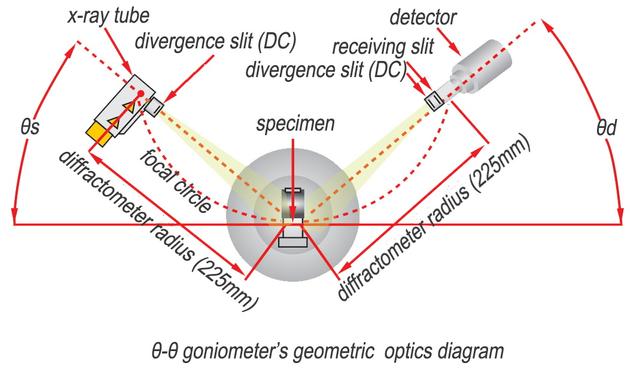

asbestos, rock minerals and polymer.Its designed is based on θ-θgeometrical optics, easy for sample preparation and accessory installation.
Application：

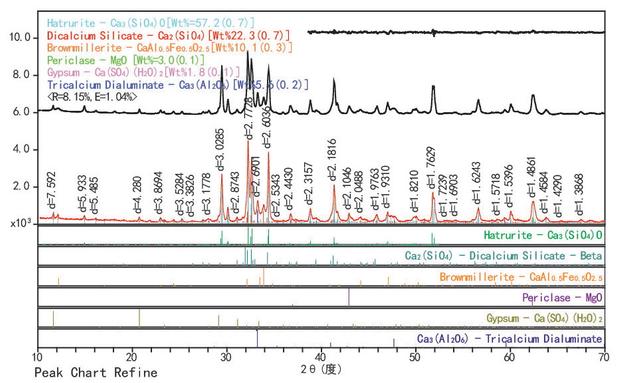

Identification for one or multiple phases of an unknown specimen;
Quantitative analysis for known phases of combined specimen;
Structure analysis for crystal;
Change of crystal structure of under unusual condition;
Film analysis for material surface;
Structure analysis and stress analysis for metal material.
|
