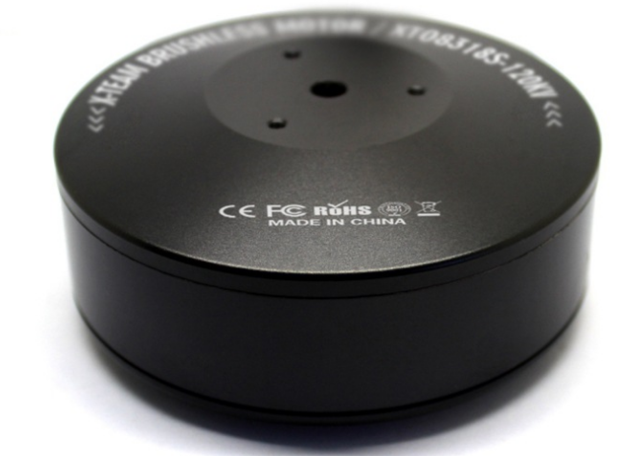

X-TEAM 8318 plant protection machine motor 15 kg four six-axis multi-rotor plant protection spray
| Price: | US$ 118 / Unit |
|---|---|
| Minimum Order: | 1 unit |
| Payment Terms: | Paypal |
| Port of Export: | Dongguan China |
Product Details
| Model No.: | 8318 | Brand Name: | X-team |
|---|
| Certification: | CE& FCC &ROHS |
|---|---|
| Specification: |
Place of Origin Dongguan Brand :X-TEAM Metarial : Metal Item Model : 8318 Rated power; 2000(W) Minimum order: 1 piece Product Type : Brushless DC Motor Rated Voltage 30(V) Product Certification: CE 3C rated voltage range :Below 36V DC Production Capacity:10000 pieces /per month Delivery (Lead Time): 4 days after payment |
Packaging & Delivery
| Packaging: | Standards |
|---|---|
| Delivery/Lead Time: | 4 days after payment |
| Production Capacity: | 10000 pieces /per month |
Product Description
Instructions

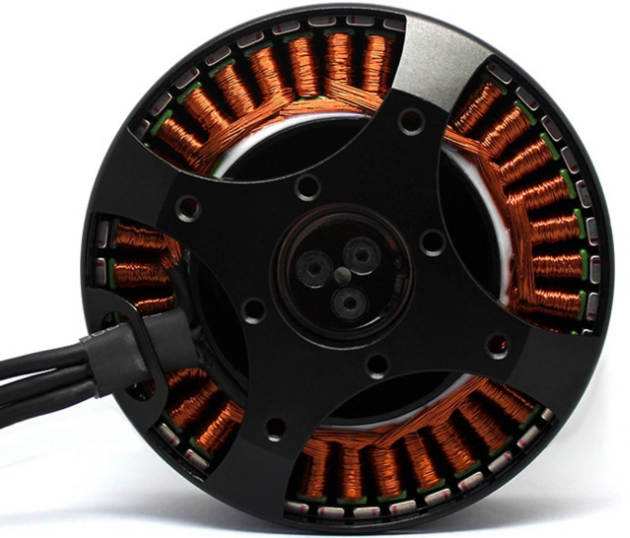

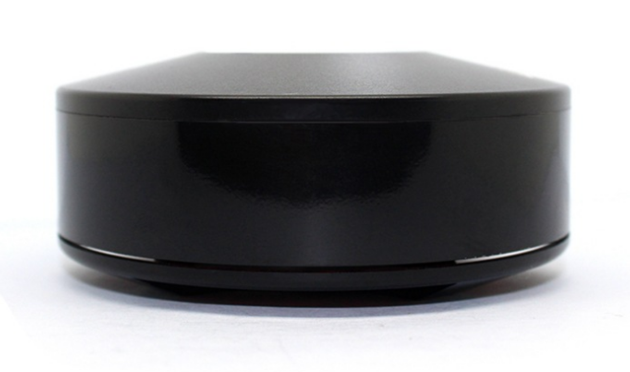

ML8318 Motor/120KV
Motor KV: 120KV RPM/V
Motor Resistance (RM): 0.0692 Ω
Idle Current (Io/10V) : 1.1A/10V
Max Continuous Current: 62A
Max Continuous Power: 2000W
Weight: ≈635g/22.4oz
Lipo Cell: 3-12S
Motor Diameter: 92mm/3.62in
Motor Body Length: 37.8mm/1.49in
No. of Stator Arms: 36
Pole Count : 42
Overall Shaft Length: 38.3mm/1.5in
Bolt holes spacing: 32mm/40mm/1.26in/1.57in
Bolt thread: M4×16
Maximum thrust: 12500g
Package includes:
ML8318 120KV motor
Attention:
When using the screws we provide, pay attention to the thickness of the motor mounting plate. If the mounting plate is too thin, it may cause the screws to be too long to be pushed up to the motor coil.
|
