Wire Mesh For Slope Protection / Slope Stabilization Mesh
Price: | US$ 7.5 / Square Meter |
---|---|
Minimum Order: | 1 square meter |
Payment Terms: | TT |
Port of Export: | Tianjin |
Product Details
Model No.: | SF10006 | Brand Name: | SF |
---|
Certification: | ISO9001 |
---|---|
Specification: |
Material: High carbon steel, stainless steel. Surface treatment: Galvanized, PVC coated. Wire rope diameter: 8-20mm. Wire rope mesh size: 20*20-360*360mm. Size: 4 m × 4 m, 4.5 m × 4.5 m. Supporting rope diameter: 12 mm, 16 mm. Sewing rope diameter: 8 mm. |
Packaging & Delivery
Packaging: | Make a roll and then put on pallet |
---|---|
Delivery/Lead Time: | 10-15 days after received the deposit |
Production Capacity: | 5000 square meters per week |
Product Description
Product description: Slope protective net also know as wire rope, SNS flexible protection, landslides fence, hillside hanging net, it is can be manufactured in electro galvanized, hot-dipped galvanized, PVC coated or stainless steel , mainly used to against the rock slope collapsed, rock dropped, debris flow, snowslide etc.
Slope Stabilization Mesh System rockfall net is designed by the latest international standard of rock slope protection system. The whole system is composed of high-strength steel wire, bolt and other installation components, standard modular operation, Compared with traditional construction methods, the system rockfall net has overcomed many rigid construction defects, and is shorten the duration and cost of construction.

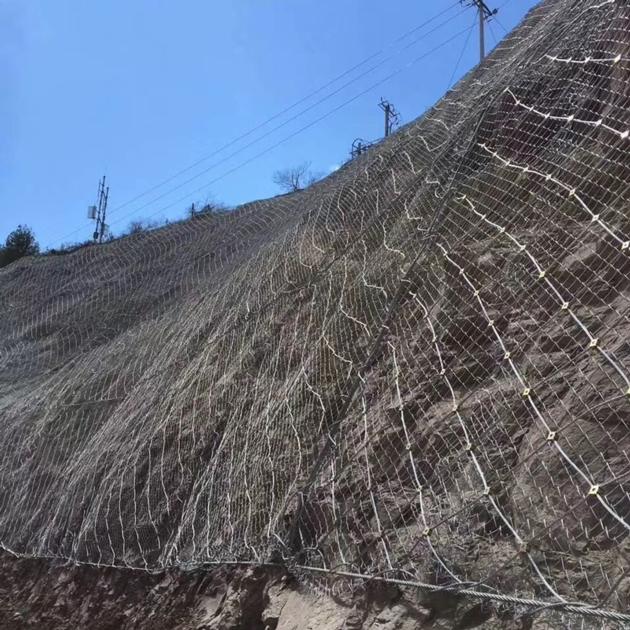

Active SNS Flexible Protective Net:
SNS protective mesh, also known as safety netting system, made of steel wire ropes as major components, the covering protection type is called active system

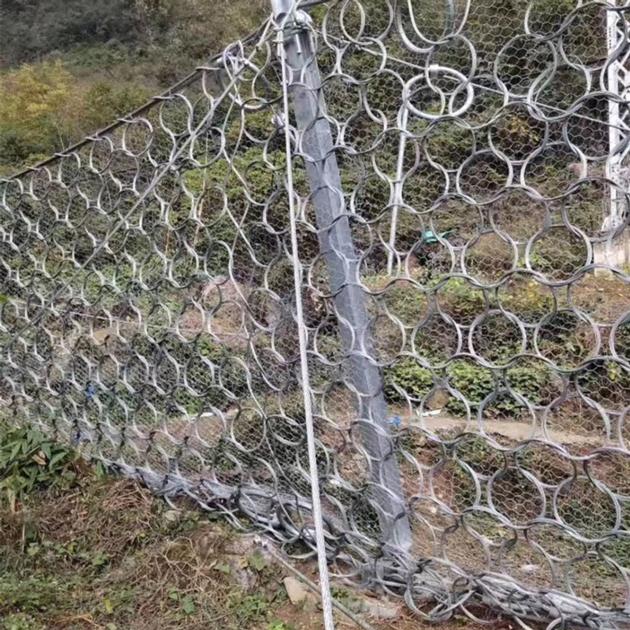

Passive SNS Flexible Protective Net:
Passive SNS flexible protective net is composed of high-strength steel wire, H steel, anchor rod, pressure-relief ring and other installation components. They combined into a whole system to protect the areas, against the dropping stones and collapsed slope.

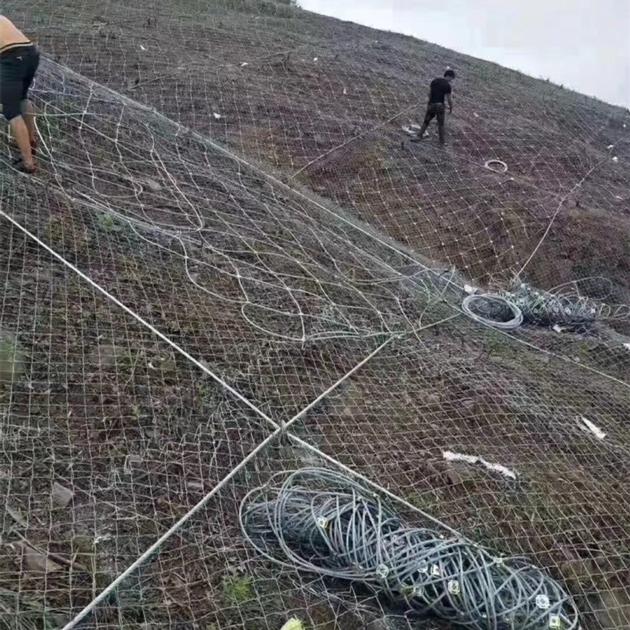

Active protection system installation:
Threading→Reviewing→Drilling→Clearing Hole→Installing Bolt→Pulching→Installing Vertical and Horizontal Supporting Rope→Hanging Net→Zhangla→Sewing→Acceptance
Slope Stabilization Mesh Features:
1.adapt to any slope terrain, especially crushing mountain.
2.The mesh size and diameter can be modified.
3.High strength, strong toughness, free-angles curving and fold, easy for transportation and installment.
4.Anti-corrosive, resist the rust, the service time more than 30 years, can be repeated use.
5.This product can bear the heavy snow and the gale, resists chewing by rodents and other pests.
6. Green, safety, environmental protection.
SNS Flexible Protection Mesh Applications:
SNS Flexible Protection Mesh mainly used for landslide protection, such as slope erupting, wind corrosive.
SNS Flexible protection mesh can also control and lead the river and flood.
SNS Flexible protection mesh is good for preventing the water and soil lost, protecting the bridge.
SNS Flexible protection mesh as a major component of protection system is against the rock slope collapsed,dropped, such as flyrock blasting.
If any need about SNS Flexible Protection Mesh, pls contact us: michael(at)sfwiremesh.com
