Wholesale Rubber backed ceramic wear composite liner

Price:	US$ 30 / Piece
Minimum Order:	10pcs
Payment Terms:	T/T
Port of Export:	Qingdao China

Product Details

Model No.:	1pc	Brand Name:	Zibo Qimingxing (Firstar)

Certification:	ISO etc.
Specification:	S.No. Material Attributes Properties 1 Ceramic Tiles Material 92%, 95%, T95%,96%, ZTA 2 Rubber Component natural rubber, nitrile-butadiene rubber ,Flame Retardant ,others Density ~1.4g/cm3 Tensile strength at break ≥15Mpa Elongation at break ≥250% Shore Hardness 45-65 Adhesive between tile and rubber 1.2-3.0 Mpa Adhesive between rubber and equipment ≥3.5 Mpa Thermal conductivity.(normal temperature) 2w/m·k Aging period ≥15 Years Working temperature -50ºC - 200ºC 3 Steel plate Material Q235A Density 7.85g/cm3 Thickness 5-6mm 4 Adhesive Appearance Brown glutinous liquid Solid content 20¯3% Viscosity ≥2.5 Mpa Peel strength 48h N/2.5cm≥120 Compressive strength ≥850 Mpa Working temperature -20ºC - 100ºC Whole Plate (mm) 150x300, 300x300, 450x000, 500x500, 600x450 etc. Ceramic Size (mm) Square Tile: 10x10, 20x20, 33x33, 50x50, 100x100, 150x100,etc. Hexagonal Tile: 12x3, 12x6, 19x7, 19x12.5, 19x25,etc. Locking block with lock and groove: 38x38, 40x40, 30x30,etc. Dimple Tile: 20x20 with 5 dimples, 20x30 with 18 dimples, 20x30 with 13 dimples, 20x20 with 1 semi-spherical surface Ceramic Thickness (mm) 3-75mm Alloy Steel Size (mm) Thickness: 3-10mm Rubber Thickness (mm) Depends on the impact stress expected. Product description: Also named wear cermaic parts, wear rubber ceramic plate, wear resistant ceramic pads. Ceramic rubber composite pads&plate is use of rubber vulcanization process, to embed the wear-resistant ceramic vulcanized into rubber, stick it on the inner all of equipment with the adhesice paste.As customers' requirment, it also can be vulcanized together with steel plate, with bolts or not. Features: It combines wear-resistance of ceramic of ceramic and impact-resistance of rubber, apply to conveying systems equipment work under normal temperture,and can bear some impact. Applications: Impact-resistant and wear-resistant ceramic rubber composite lining board (three-in-one lining board) is mainly used in the thermal power industry (falling coal pipe lining board), the steel industry (blast furnace hopper, cylindrical mixer), the cement building materials industry (clinker clinker) Chute), smelting industry (hopper), machinery industry (hopper), coal industry (transportation station chute), mining industry (initial break, medium and fine breakage, transfer chute hopper), chemical industry (chute), organic silicon industry (level two) Heavy-duty cyclone dust collector), coal chemical industry (falling coal pipe), port terminal (ship unloader hopper), commercial industry (mixer liner), automobile manufacturing and other heavy-wearing industries.

Certification:

ISO etc.

Specification:

S.No. Material Attributes Properties
1 Ceramic
Tiles Material 92%, 95%, T95%,96%, ZTA
2 Rubber Component natural rubber, nitrile-butadiene rubber ,Flame Retardant ,others
Density ~1.4g/cm3
Tensile strength at break ≥15Mpa
Elongation at break ≥250%
Shore Hardness 45-65
Adhesive between tile and rubber 1.2-3.0 Mpa
Adhesive between rubber and equipment ≥3.5 Mpa
Thermal conductivity.(normal temperature) 2w/m·k
Aging period ≥15 Years
Working temperature -50ºC - 200ºC
3 Steel plate Material Q235A
Density 7.85g/cm3
Thickness 5-6mm
4 Adhesive Appearance Brown glutinous liquid
Solid content 20¯3%
Viscosity ≥2.5 Mpa
Peel strength 48h N/2.5cm≥120
Compressive strength ≥850 Mpa
Working temperature -20ºC - 100ºC

Whole Plate (mm) 150x300, 300x300, 450x000, 500x500, 600x450 etc.
Ceramic Size (mm) Square Tile: 10x10, 20x20, 33x33, 50x50, 100x100, 150x100,etc.

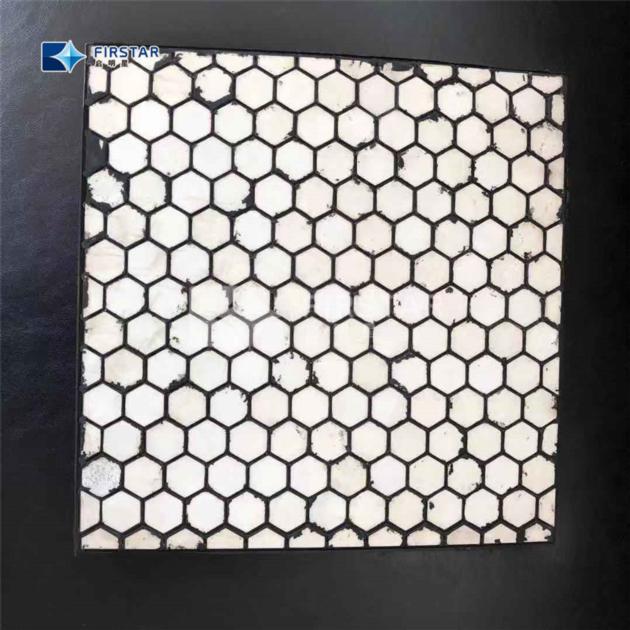

Hexagonal Tile: 12x3, 12x6, 19x7, 19x12.5, 19x25,etc.
Locking block with lock and groove: 38x38, 40x40, 30x30,etc.
Dimple Tile: 20x20 with 5 dimples, 20x30 with 18 dimples, 20x30 with 13 dimples, 20x20 with 1 semi-spherical surface
Ceramic Thickness (mm) 3-75mm
Alloy Steel Size (mm) Thickness: 3-10mm
Rubber Thickness (mm) Depends on the impact stress expected.

Product description:
Also named wear cermaic parts, wear rubber ceramic plate, wear resistant ceramic pads.

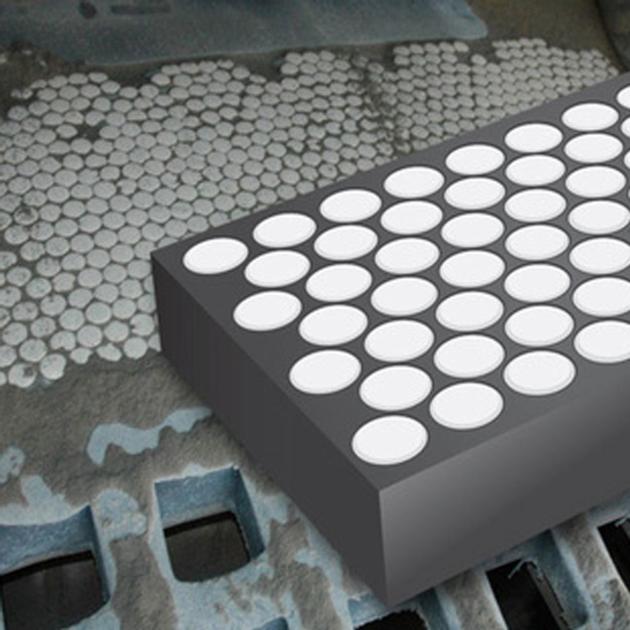

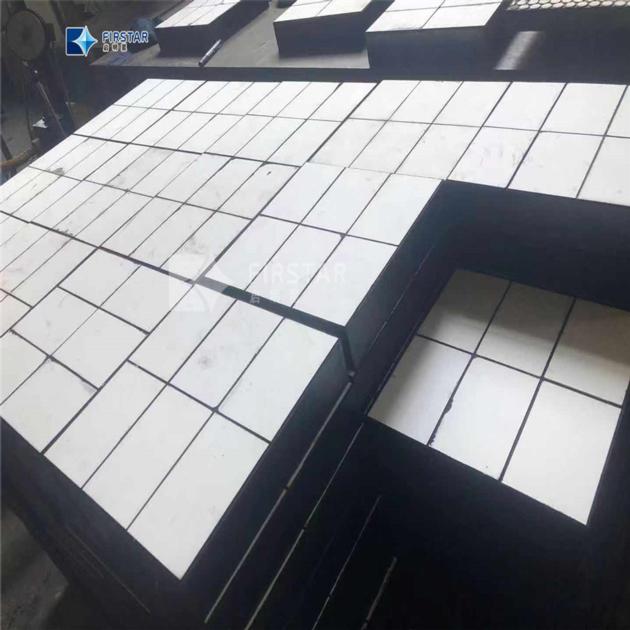

Ceramic rubber composite pads&plate is use of rubber vulcanization process, to embed the wear-resistant ceramic vulcanized into rubber, stick it on the inner all of equipment with the adhesice paste.As customers' requirment, it also can be vulcanized together with steel plate, with bolts or not.

Features:
It combines wear-resistance of ceramic of ceramic and impact-resistance of rubber, apply to conveying systems equipment work under normal temperture,and can bear some impact.

Applications:
Impact-resistant and wear-resistant ceramic rubber composite lining board (three-in-one lining board) is mainly used in the thermal power industry (falling coal pipe lining board), the steel industry (blast furnace hopper, cylindrical mixer), the cement building materials industry (clinker clinker) Chute), smelting industry (hopper), machinery industry (hopper), coal industry (transportation station chute), mining industry (initial break, medium and fine breakage, transfer chute hopper), chemical industry (chute), organic silicon industry (level two) Heavy-duty cyclone dust collector), coal chemical industry (falling coal pipe), port terminal (ship unloader hopper), commercial industry (mixer liner), automobile manufacturing and other heavy-wearing industries.

Packaging & Delivery

Packaging:	With pallet
Delivery/Lead Time:	10-30 days
Production Capacity:	17000 tons per year

Product Description

Applications:
Impact-resistant and wear-resistant ceramic rubber composite lining board (three-in-one lining board) is mainly used in the thermal power industry (falling coal pipe lining board), the steel industry (blast furnace hopper, cylindrical mixer), the cement building materials industry (clinker) Chute), smelting industry (hopper), machinery industry (hopper), coal industry (transportation station chute), mining industry (initial break, medium, and fine breakage, transfer chute hopper), chemical industry (chute), organic silicon industry (level two) Heavy-duty cyclone dust collector), coal chemical industry (falling coal pipe), port terminal (ship unloader hopper), commercial industry (mixer liner), automobile manufacturing and other heavy-wearing industries.

Wholesale Rubber backed ceramic wear composite liner

Wholesale Rubber Backed Ceramic Wear Composite
