Welding inverter DC filter capacitor
| Price: | US$ 3.55 / Piece |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | T/T, L/C, Western Union |
| Port of Export: | Shanghai or Ningbo |
Product Details
| Model No.: | CBB15 CBB16 | Brand Name: | Saifu |
|---|
| Certification: | |
|---|---|
| Specification: |
Features
Used to absorb or filter high-frequency impulse in high-power high -frequency switch. Low ESR, high ripple current and large current shock handling capabilities Low Ls, good high frequency characteristics Self-healing property Long lifetime Plastic case, resin sealing Applications Used in filter, absorption, blocking, resonance circuits of high-frequency switching power supply. Widely applied to EMI, such as high frequency welding inverter, UPS, electric vehicles, etc.. |
Packaging & Delivery
| Packaging: | |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
Technical Specification
Cn
(μF) Un
(V) Imax
(A) dv/dt (V/μs) Ls
(nH) U t-t
(V) U t-c
(V) tgδ
(20℃,10kHz) Size
(mm)
CBB15(SFPEC)

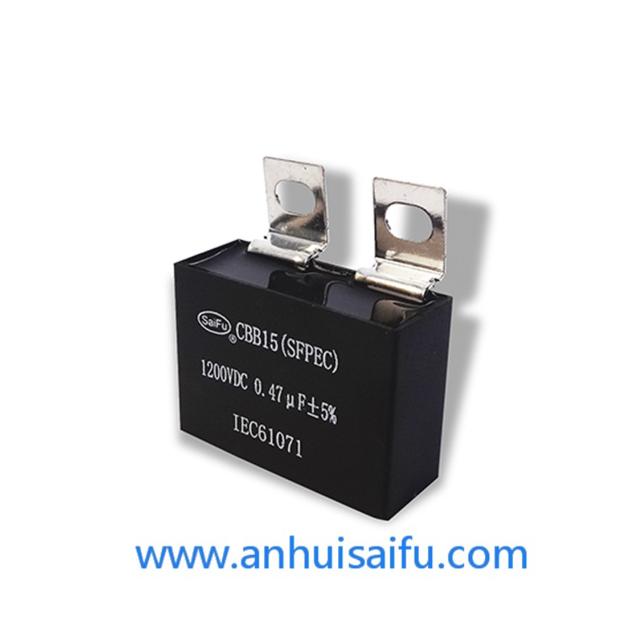

0.47 1200VDC 7 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 46×18×34
1 1200VDC 15 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 46×34×36
2 1200VDC 25 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 50×46×50
3 1200VDC 35 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 50×46×50
30 1250VDC 30 200 ≤10 1800V, 10S 3000VAC,60S ≤100×10-4 74×46×49

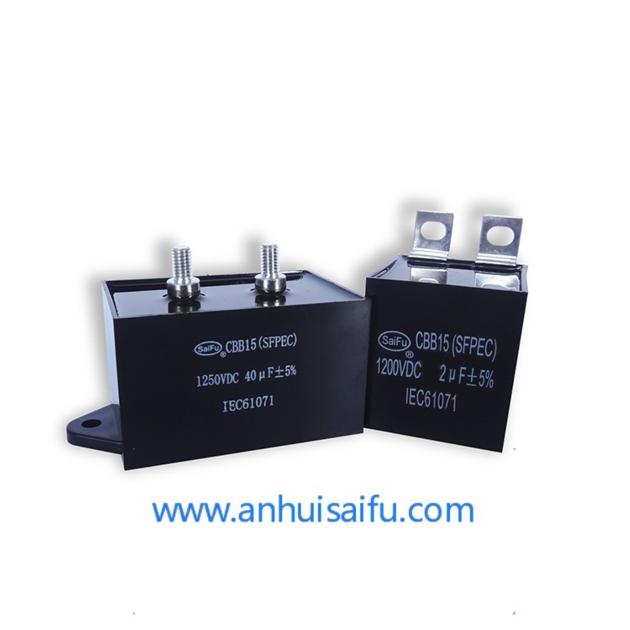

40 1250VDC 40 200 ≤10 1800V, 10S 3000VAC,60S ≤100×10-4 75×50×44

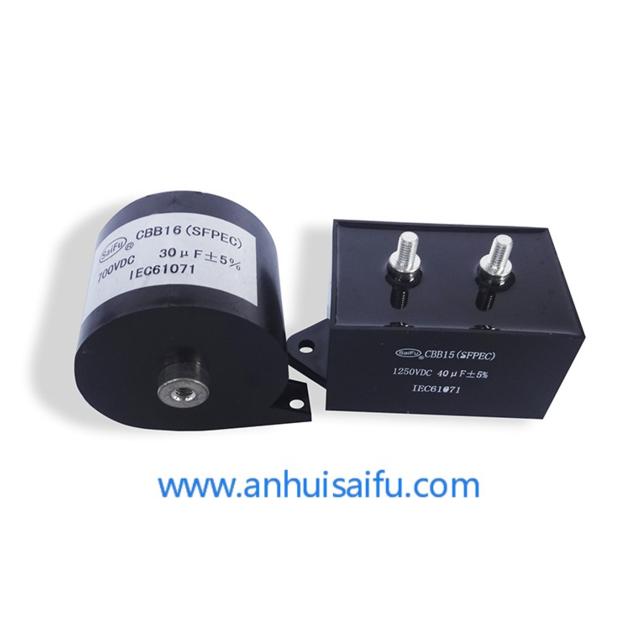

CBB16(SFPEC)
2 500VAC 25 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 ф63×49
3 500VAC 35 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 ф63×49
4 500VAC 50 1200 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 ф63×49
5 500VAC 60 1300 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 ф63×49
6 500VAC 80 1400 ≤10 1800V, 10S 3000VAC,60S ≤10×10-4 ф76×49
10 1400VDC 6 200 ≤10 1800V, 10S 3000VAC,60S ≤30×10-4 ф50×60
20 1400VDC 10 200 ≤10 1800V, 10S 3000VAC,60S ≤30×10-4 ф50×60
50 350VDC 14 200 ≤10 600V, 10S 3000VAC,60S ≤30×10-4 ф50×60
40 800VDC 10 200 ≤10 1200V, 10S 3000VAC,60S ≤30×10-4 ф40×60
60 800VDC 15 200 ≤10 1200V, 10S 3000VAC,60S ≤30×10-4 ф50×60
100 800VDC 28 200 ≤10 1200V, 10S 3000VAC,60S ≤30×10-4 ф62×60
200 800VDC 26 200 ≤10 1200V, 10S 3000VAC,60S ≤30×10-4 ф60×110
Note: Other specifications and size outside table are negotiable.
|
