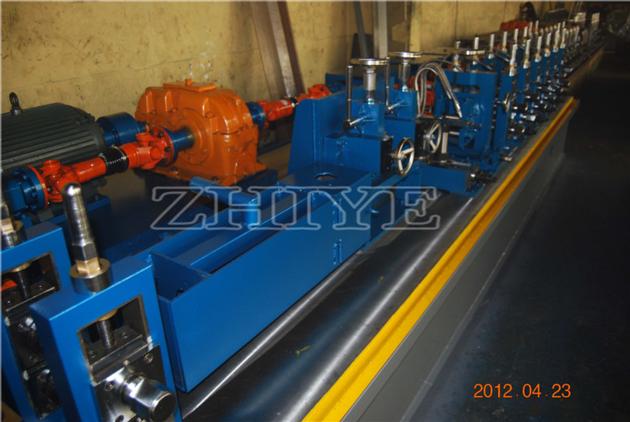

Welded Pipe Forming Machinery
| Price: | US$ 128000 / Set |
|---|---|
| Minimum Order: | 1 |
| Payment Terms: | OTHER |
| Port of Export: | TIANJIN |
Product Details
| Model No.: | ZY | Brand Name: | ZY |
|---|
| Certification: | ISO CE |
|---|---|
| Specification: |
Product Description:
PLC Welded Pipe Making Machinery is the special equipment producing welded steel pipe and profile pipe for industries such as metallurgy,construction,transportation,machinery,vehicles and so on.Take cold or hot rolled steel as raw materials,through cold formed and high frequency welding method to produce the round pipe,square pipe and rectangle pipe. Technical parameter of product line: |
Packaging & Delivery
| Packaging: | Nude, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof c |
|---|---|
| Delivery/Lead Time: | 30 working days after received the deposite |
| Production Capacity: | 30/MOUNTH |
Product Description
Technical parameter of product line:
I.D. of steel coil:
Φ450-Φ550mm
Steel Thickness:
1-4.0mm
Charge in width:
60-240mm
Line speed:
6m/min-12m/min
O.D. of steel coil:
Φ800-Φ1200mm
Milling speed:
20-80m/min
O.D of pipe:
Φ20-Φ80mm
Voltage:
380V/440V,50HZ
High-frequency equipment power:
300 KW
Roller material:
Low-carbon steel
Working flow:
Double head uncoiler → Shear & butt welder → Accumulator → Forming section(flattening unit+mani driving unit+forming unit+guide unit) → High frequency welding unit+ squeeze roller → De-burr frame → Cooling unit → Sizing unit and straightener → Flying saw under computer control → Run out table
