Wax injection machine
| Price: | US$ 10000 |
|---|---|
| Minimum Order: | |
| Payment Terms: | tt |
| Port of Export: | TIANJIN |
Product Details
| Model No.: | Brand Name: | FUGE |
|---|
| Certification: | ISO9001, CE, |
|---|---|
| Specification: |
Wax injector is special designed for producing small size, high precision and complicated wax patterns in the investment casting process.
Features : 控制系统先进： 独立的温控区域（蜡温分区控制），精确的蜡流量控制和蜡料压力控制 便捷：可存储50套模具的全部压注工艺参数资料。 安全：该机型具备计算机自动报警功能，便于及时排除故障。 Advanced Control System: Independent temperature control partitions(control temperature for wax of partitions);Accurate wax flow and Injection Pressure. Convenience : Maximum memory is 50 sets parameters . Safety : Auto alarm system to fix faults in time. |
Packaging & Delivery
| Packaging: | WOODEN CASE |
|---|---|
| Delivery/Lead Time: | 90 DAYS |
| Production Capacity: |
Product Description
wax injection machine

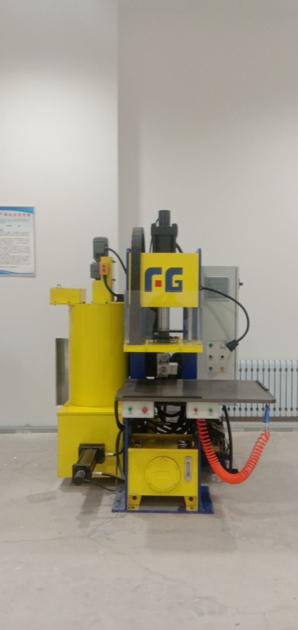

FUGE wax injector is a C frame injector utilizing hydraulic drive systems. Independent wax temperature control, precise wax flow control and curve pressure control provide the injector with the ability to produce high quality wax patterns.
Operation: Easy to operate in manual and automatic modes .
Reasonable structure: C-Frame to save space .
Convenience : HMI is to display the parameters of auto setting pressure .
Multi-protection: It equipped with multi-protection for nozzle position , overpressure, dual temperature , pinch hand .
Advanced Control System: Precisely control temperature,flow and pressure for injecting , to ensure the qualify of ceramic cores.
Description Parameters
Model FG-TXJ35T FG-TXJ50T
Max. Clamp force 35T 50T
Platen stroke 535mm 535mm
Injection Pressure 0.35-8MPa（Adjustable） 0.35-8MPa（Adjustable）
Single Shot Capacity 3.2L（Adjustable） 3.2L（Adjustable）
Ceramic Reservoir Capacity 76L 76L
Air pressure 0.6MPa(Dry and clean air ) 0.6MPa(Dry and clean air )
Electrical Standard 380V 50Hz 3ph 18KW 380V 50Hz 3ph 30KW
Dimension （LXWXH） 1450mmX2224mmX2996mm 150mmX2355mmX3016mm
|
