Waterproof Data Connector 5 Pin Push Lock Mating For Lithium Battery
| Price: | US$ 1.5 / Piece |
|---|---|
| Minimum Order: | |
| Payment Terms: | Bank, Paypal, Alibaba, Moneygram, LC |
| Port of Export: | HK/ Shenzhen |
Product Details
| Model No.: | M23 | Brand Name: | Jnicon |
|---|
| Certification: | CE, CQC, UL, AWG, ISO |
|---|---|
| Specification: |
Sealed against dust and fluid (IP67)
power connector waterproof Vibration resistance,impact resistance,stretching resistance socket with cover Cable assembly support Customized cable size and length Features: 2 power supply, 5IN signal 1pin grounding IP67 rating Voltage rating: 300V Cable Range: 3~11mm UL, TUV, CB, CCC, CE, RoHS approved Mating cycle: 3000 times Technical Parameters Contact Resistance 10 mΩ max Insulation Structure 500 MΩ at 500VDC Operating Temperature -40®C ~ +105®C IP Class IP67 (1m / 30min) Mold Material PA66 Contact/Terminal Material Gold Plated Brass Seal Material Silicone Operation Parameters Voltage Rating 500VAC max Min Wire Size OD 3.0mm ~ 6.5mm Max Wire Size OD 6.5mm ~ 10mm Max.Cable Cross Section Area 0.3mm2 ~ 2.5mm2 |
Packaging & Delivery
| Packaging: | Customized |
|---|---|
| Delivery/Lead Time: | Upon discussion |
| Production Capacity: | 100K/week |
Product Description

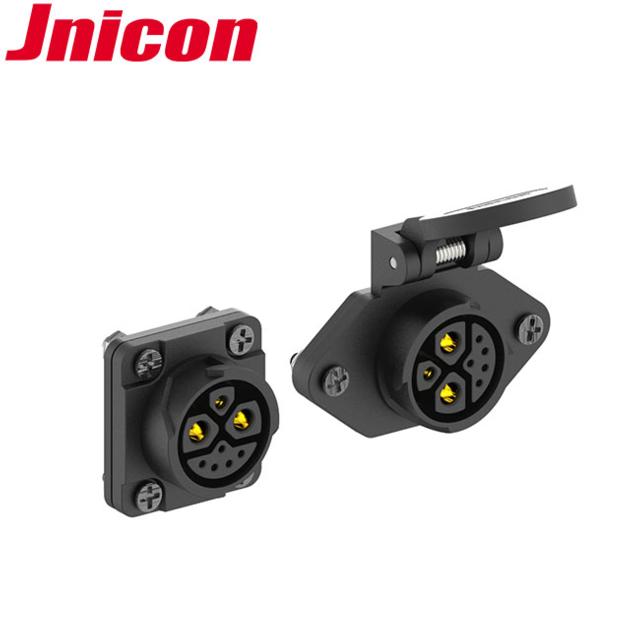

Application of Waterproof Panel Mount Connector
Lithium-Ion Systems
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery
Description of 30A/50A High Current Power Waterproof Connector

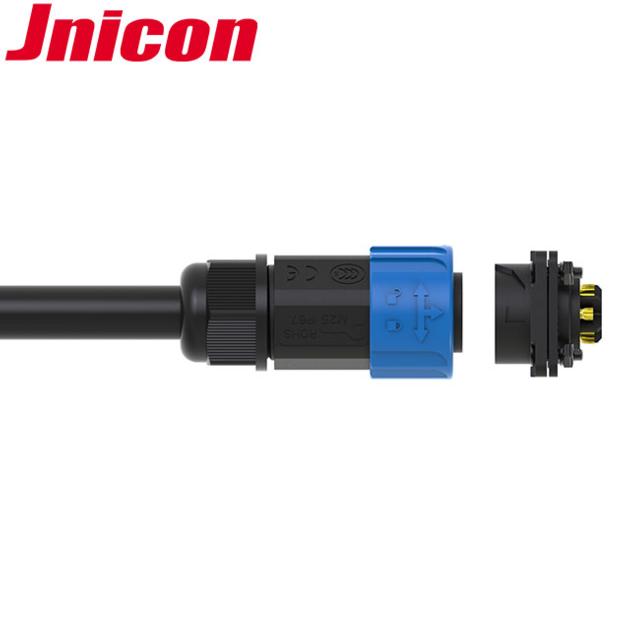

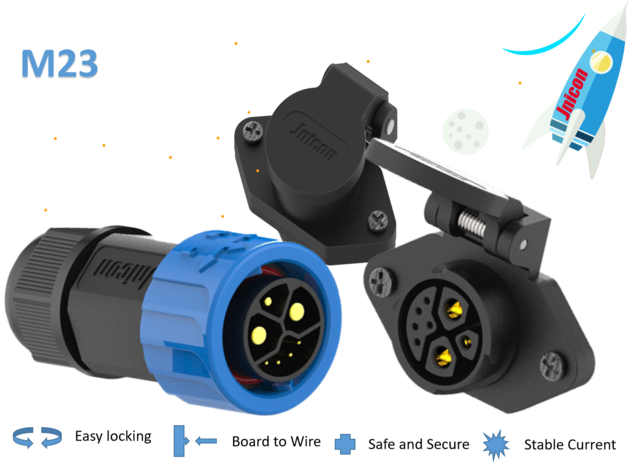

Push locking waterproof connector IP67 is the main feature of Jnicon M23 model. Its take only a few seconds to connect the male female connector, thanks to its advanced structure . it is widely used in many application. If your products is E-Scooter, this model connector would help you a perfect and most advanced connection.
1. Q: What type waterproof connector do you have?

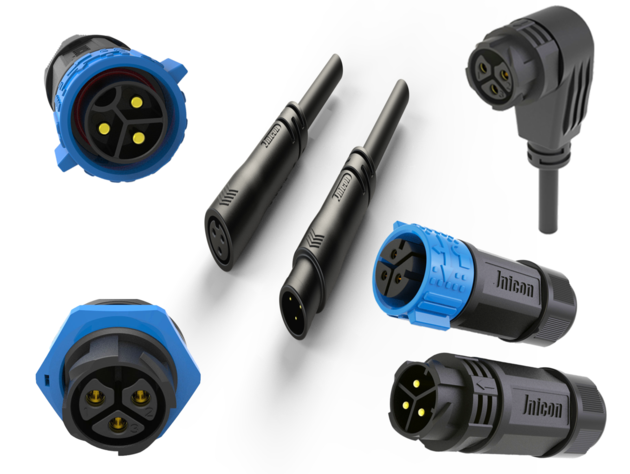

A: We have 17series type connector,and make more than 3000types waterproof connector cable.Most of our connector is customized.We foucs on LED Waterproof connector,Assembly waterproof connector,Over-mold waterproof connector,T waterproof connector,Y customized waterproof connector.
2. Q: How to buy your products?
A: You need to do as followings:
* Confirm Current Rating and Number of Contacts
* Confirm Assembly style
* Confirm Cable Wire guage
* Confirm Cable Length and shipping way
3. Q: How to contact with you?
A: Please give us email,we have worked for this industry more than 10 years,So we can catch your problem,and solve it in a short time.if you have any question please feel free to let us know.
|
