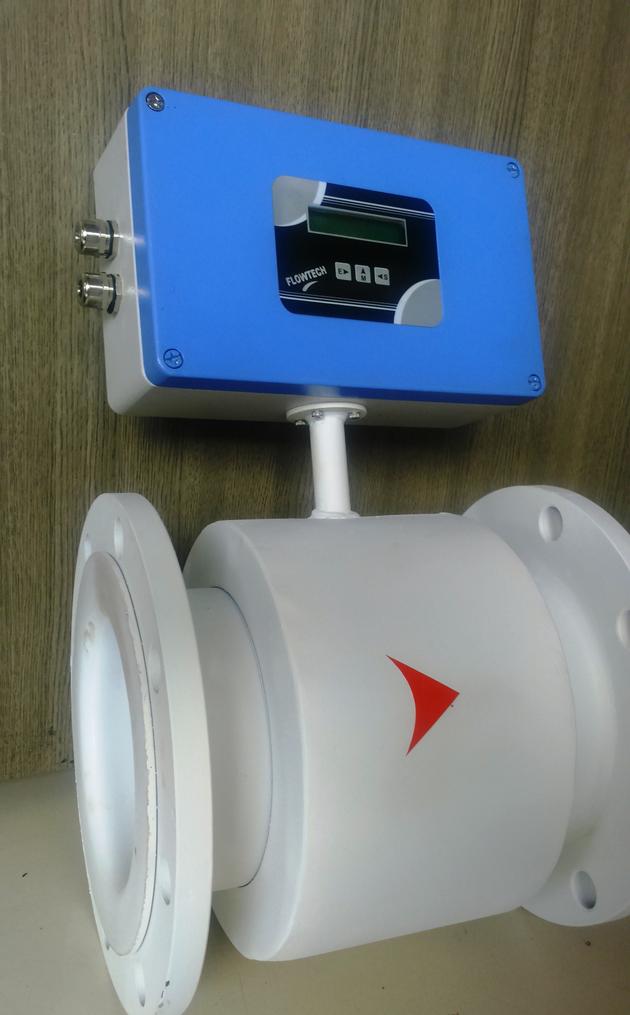

Water Digital Flow Meter
| Price: | US$ 376 / Item |
|---|---|
| Minimum Order: | 1 Nos |
| Payment Terms: | 100% against proforma by NEFT before despatch. |
| Port of Export: | Mumbai |
Product Details
| Model No.: | EMFM-135 | Brand Name: | FLOWTECH |
|---|
| Certification: | FLOWTECH MEASURING INSTRUMENTS PVT.LTD. |
|---|---|
| Specification: |
Working Principle:
This is working on the principal of faraday`s law which states that when a conductor moves through a magnetic field of a given strength a voltage is produced in the conductor and proportion to the relative velocity between the conductor and the magnetic field. |
Packaging & Delivery
| Packaging: | Wooden Cages |
|---|---|
| Delivery/Lead Time: | 2 week |
| Production Capacity: | 500 Pieces per month |
Product Description
Applications:
Scientific laboratory
Research centres
Chemical industries
Specifications:
Nominal Dia (mm): 15 to 400
Material of Construction: MS, SS 304, SS 316 & SS 316L
Process Pressure: Max. 25 kg/cm2
Process Temperature: Max. 150C
Nominal Dia (mm) : 15 to 400
Material of Construction : MS, SS 304, SS 316 & SS 316L
Electrode Material : SS 316, SS 316L, Hastelloy ‘c’, & Tantalum
Process Pressure : Max. 25 kg/cm2
Process Temperature : Max. 150C
Flow Tube Material : SS 316
End Connection : Flange/Wafer
Flange- Standard : ANSI B 16.5 150 #RF / 300 # RF
Measuring Range : 0.5 m/sec for Minimum & 5m/sec for Maximum
Accuracy : ¯ 1% FSD Optional: ¯0.5% FSD
Repeatability : 0.3%
Display : 2 Line Alfa Numeric LCD
Display Version : Integral /Remote
Display Unit : Standard Unit in M3, Litre
Power Supply : 230 VAC, 110 VAC & 24 VDC
Output : Std. 4 – 20 mA
Protection Class for Sensor : IP 65
Protection Class for Transmitter : IP 65
Cable Length for Remote : 10 meters
Installation : Inline Flange Type
|
