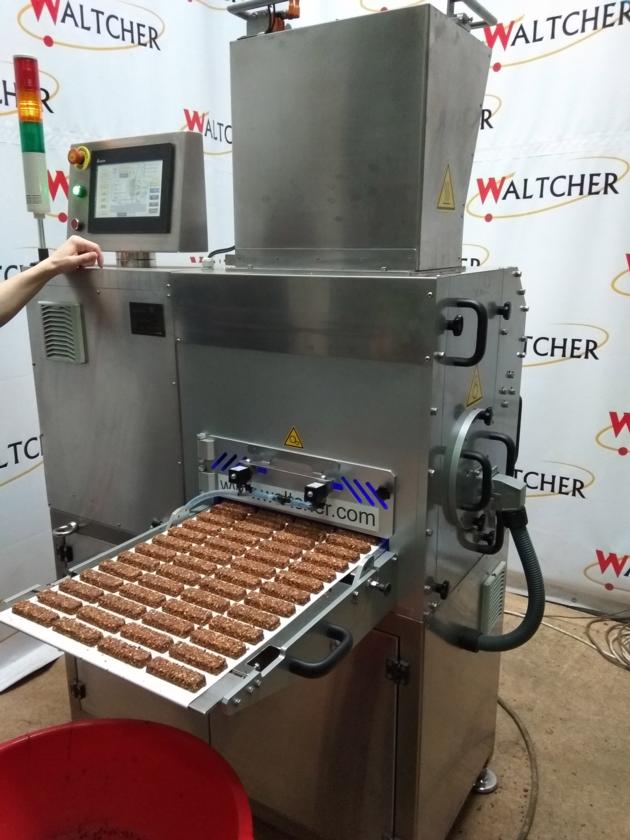

Watcher MMC-400 - Forming machine for protein, cereal, granola, muesli, seed mixes, coconut chips.

Forming machine for protein, coconut chips, cereal, granola, muesli and seeds mixes, wafer crumbs or popcorn with sugar syrop or chocolate (white or dark)
WALTCHER MMC-400

Design features:
- Fully automatic control through the servo system.
- Suitable for small capacity.
- Stainless steel, aluminum and special ultraplastic.
- Multi partial pressure system.
- In-built special devices for inside mixing of the mass and unloading of formed products.
- An integrated conveyor system.
- Folding cantilever type transporter.
- Standard equipment for cereal masses.
- Accurate speed control.

Benefits:
- Compact: it takes up to 2 square meters.
- Forming of different shapes of product
- Forming without scrap and waste
- Cereals are not damaged
- High speed forming on the tape.
- Minimum resetting time
- Quick and easy cleaning
- Touch screen panel
- Quick change of the forming set
- Roll forming system is designed specifically for cereal.
- Custom-made rotor
- All parts having contact with the product are made from food-grade structural plastic and stainless steel


MMC-400
Working width: 400 mm .
Roller diameter: 200 mm .
Fully automatic operation
Electricity: 380 V, 50Hz, 3 phase
Drive power: 4 kW

Forming speed on belt: 0,2 - 2,8 m / min
Compressed air: 6 - 7 bar
Cycles / min .: 10 to 55 (rows of product per minute)
Air consumption: appr. 50 l / min
Weight: 585 kgs.
Dimensions:
Length: 1200 mm
Width: 1210 mm
The height (standard hopper): 2000 mm

Forming rotor

Product shape: according request (bars, balls, rounds, squares, stars, couples…)
Length: according request
Width / Diameter: according request
Height: according request

Lubrication system for forming rotor

Capacity (maximum): 20,000 pieces / hour or 450 kgs / hour.
Energy efficiency class: IE 3

Delivery time 4-5 monthes.
Delivery: from our warehouse in Krefeld, Germany.

Warrantee:
12 months or 2,000 operating hours (until one of two conditions in one-shift operation, with the exception of fast wearing parts)

*************************************************************
TERMS OF PAYMENT:
50% ADVANCED PAYMENT
50% BEFORE SHIPMENT
Title: goods remain our property until full payment.

Delivery time is confirmed when placing an order.
