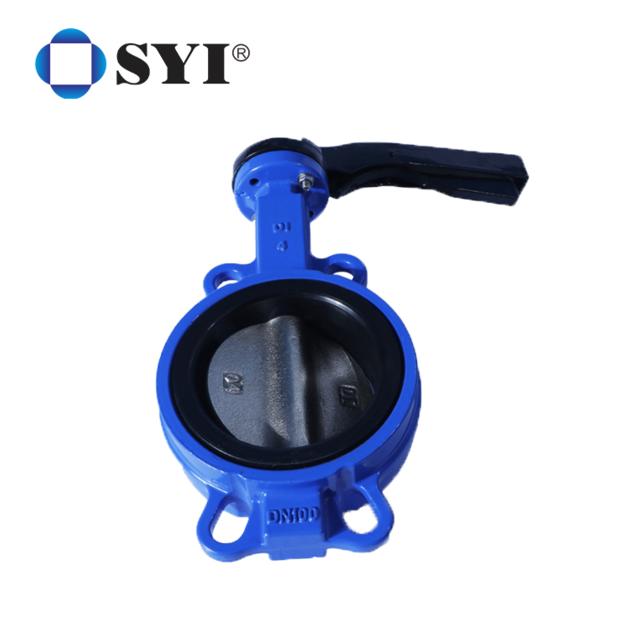

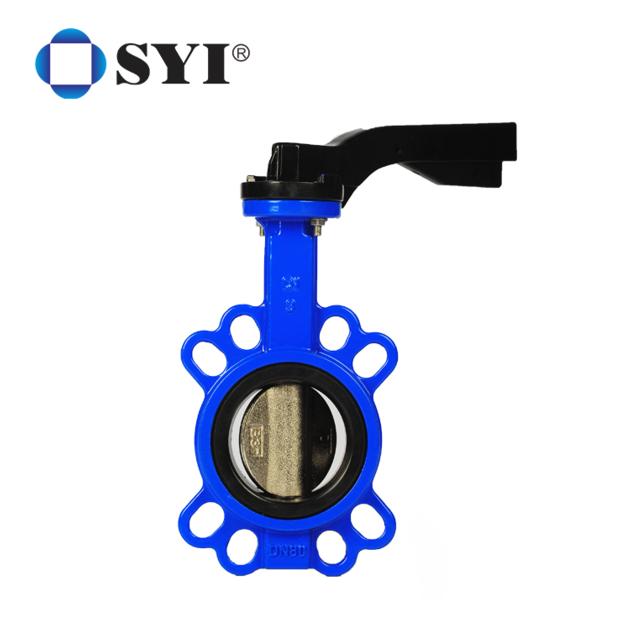

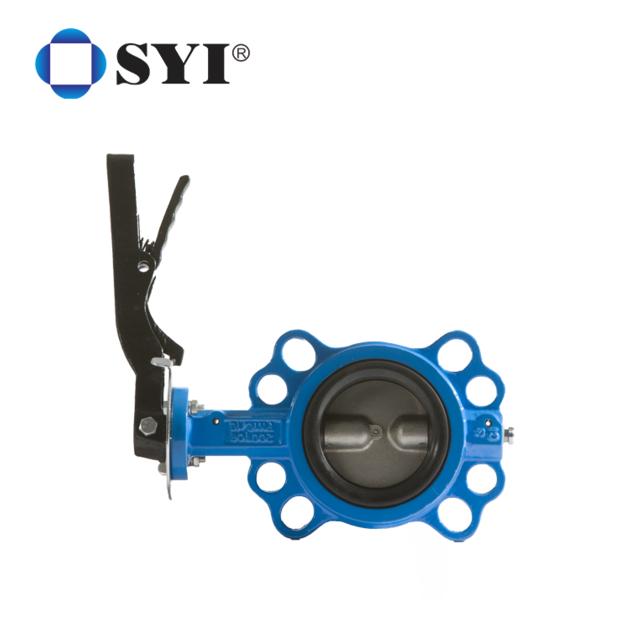

Wafer Resilient Seated Butterfly Valve
| Price: | US$ 30 |
|---|---|
| Minimum Order: | 50 |
| Payment Terms: | L/C,T/T |
| Port of Export: | Tianjin |
Product Details
| Model No.: | Butterfly Valve | Brand Name: | SYI |
|---|
| Certification: | |
|---|---|
| Specification: | The disc of the Wafer Butterfly Valve is installed in the diameter direction of the pipe. In the butterfly valve body cylindrical channel, disc shaped butterfly plate around the axis of rotation, rotation Angle between 0®-90®, can play the role of flow regulation, when the butterfly plate rotation to 90®, the valve to reach the maximum opening. Wafer butterfly valve is with simple structure, small size, light weight, only by a few parts. And only need to rotate 90® can quickly open and close, simple operation, and the valve has good fluid control characteristics. |

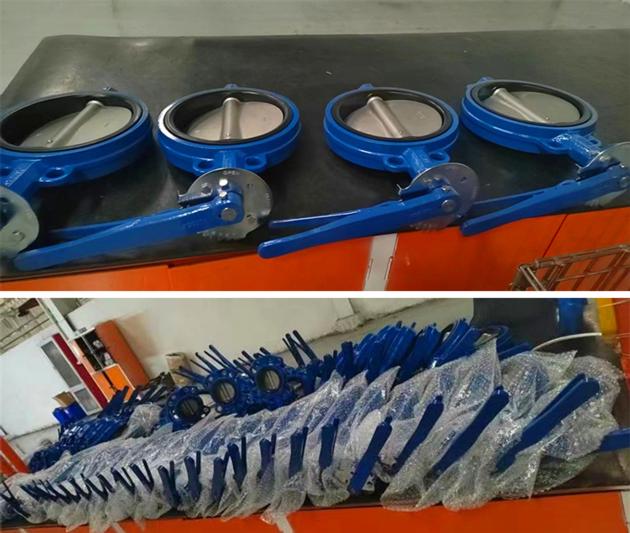

Packaging & Delivery
| Packaging: | Standard export package or as per your requirements |
|---|---|
| Delivery/Lead Time: | |
| Production Capacity: |
Product Description
Technical Specifications:
Face to face:API609 / EN593 / EN558
Flange drilling: DIN2501/ ANSIB16.10 / EN1092
Working pressure: PN10/PN16
Upper flange connection: ISO5211
Main Dimensions:
Unit: mm
DN H1 H2 L
40 139 68 33
50 161 80 43
65 175 89 46
80 181 95 46
100 200 114 52
125 213 127 56
150 226 139 56
200 260 175 60
250 292 203 68
300 337 242 78
350 368 267 78
400 400 298.6 105
450 422 318 114
500 480 355 127
600 562 444 154
700 623.9 505.1 165
800 646 499 190
900 672 576 203
1000 720 637 216
1100 800 701 230
1200 940 844 254
For other sizes not mentioned above, please contact us.
We have right to change the data without further notice.
SYI Pipeline regards quality as an essential and integral part of our business success. Until now, we are ISO9001:2015 TUV, BSI Kitemarked, SGS, BV, FM certified, and UL, WRAS listed. We are the approved supplier to many worldwide known countries and authorities. Manufacturing "SYI" Brand products has evolved as a mark of quality!
The Valves supplied by SYI Pipelines are mainly used for adjusting water, steam, oil, gas, and natural gas in chemical industries, acid, alkali, and salt working pipelines. Sizes from 50-2000mm can meet full requirements from customers.
|
