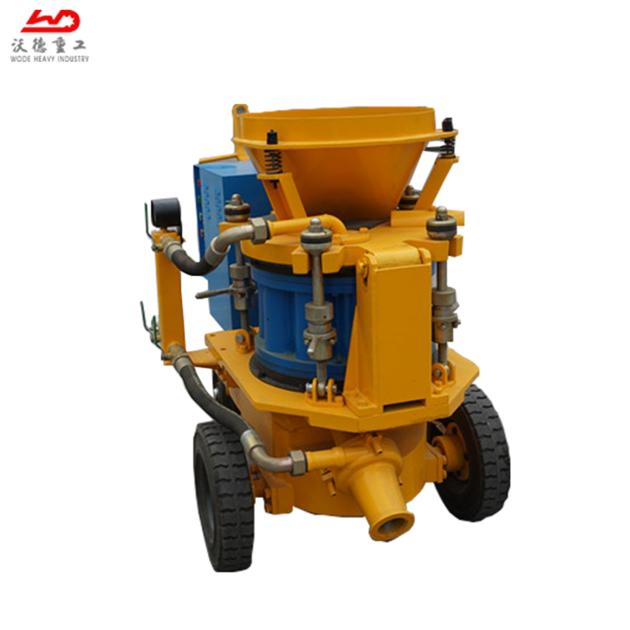

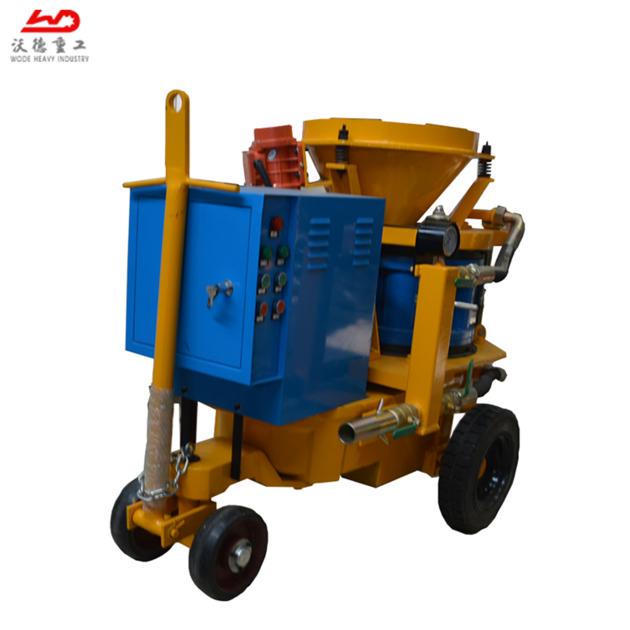

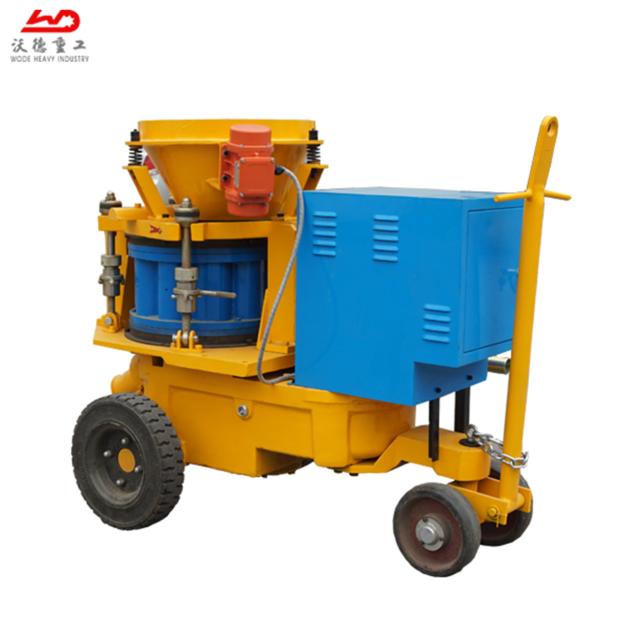

WZ-9E China manufacture dry concrete spraying gunite machine for construction

Price: US$ 5500
Minimum Order: 1
Payment Terms: TT/DA/DP/moneygram
Port of Export: shanghai/tianjin/qingdao
Product Details
Model No.: WZ-9E Brand Name: WODETEC
Certification: ISO CE
Specification:
Output Capacity

9m3 /h

Max. Horizontal Conveying Distance

200m

Suitable Mix Ratio(Cement/Sand)

≤1:4~5

Max. Aggregate Size

Dia.20 mm

Conveying Hose Inner Diameter

Dia.64 mm

Conveying Pressure

0.2-0.4MPa(29-58PSI)

Air Consumption

10~12m3/min(357-430CFM)

Material Charging Height

1.1m

Rotor Speed

11r/min

Electric Motor

7.5kW,Y132M-4,IP55

Vibrator Electric Motor

0.15kW,XVM-A1.5-2

Available Voltage

220V,380V, 440V,660V 50Hz/60Hz

Overall Dimension(length×width×height)

1.65×0.9×1.25m

Net Weight

900kg

Packaging & Delivery
Packaging: plastic wrap, plywood case, free-fumigation, standard export packing. as shown below. Or customized.
Delivery/Lead Time: 15 DAYS
Production Capacity: 9m3/h
Product Description
WZ-9 series dry-mix shotcrete machine is large-sized shotcrete machine for the spraying process.

WZ-9 can be used for large-section tunnel building, mine, etc

WZ-9 is available in following versions:

Basic: electric drive can be combined with tyre chassis

Extended (optional): air motor drive or diesel drive combined with skid or rail-wheel

WZ-9 series dry-mix shotcrete machine feature:

1. Variable output with variable-frequency drive.
2. Heavy-duty solid wheels.
3. Coulping and clamp.
4. Light weight nozzle.

WZ-9 series dry-mix shotcrete machine advantages:

1. High quality, reliable performance.

2. Good seal performance, little dust.

3. Reasonable design, convenient to move.

4. Convenient operation and longevity of service.

5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.

6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.

7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.

8. Widely used in mining, tunnel, culvert, revetment etc.
