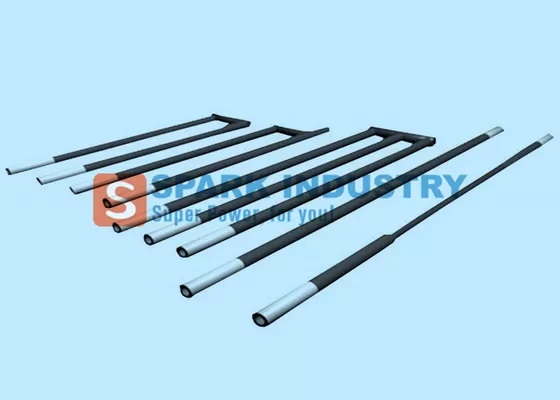

W Type SiC Heating Elements

Silicon Carbide Heater Application

It can be widely used in such applications as sintering and heating elements of ceramics, magnet, glass, metallurgy, refractory, etc.

3-phase elements are available in 2 different types: SGC (Dumbbell), SGD(Standard).

These elements are self-bonded silicon carbide formed by re-crystallization of silicon carbide at high temperature. It consists of three high-purity silicon carbide rods connected at one end by a silicon carbide crossbar. SGC elements are designed for vertical installation in standard float glass bathes and SGD elements for horizontal installation. They can be connected directly on three-phase power supply and is a one-side terminal type which permits drawing out the terminals from the roof of the furnace.

Silicon Carbide Heater Advantages

1. Withstands as high as 1500®C (surface temperature).

2. Various shapes, like Rod shape, U shape, W shape, Single Spiral & Double Spiral shape, are available to meet your demand.

3. Large size range.

4. Generates high heat output per unit surface area.
