Vibratory Compact Test Set

Price:	US$ ask for last price / Unit
Minimum Order:
Payment Terms:	CASH , L/C, TT, MONEYGRAM, WESTERN UNION
Port of Export:

Product Details

Model No.:	PRS-ZE0630	Brand Name:	ParsRos

Certification:
Specification:	STANDARDS EN 13286-4; BS 1377:4 / EN 12697-9, 12697-10, 12697-32 Dimensions 510x300x1120 mm Weight (approx.) 75 kg (complete set) Power 1150 W (vibrating hammer)

Packaging & Delivery

Packaging:	yes
Delivery/Lead Time:
Production Capacity:

Product Description

Vibratory Compact Test Set

PRODUCT CODE

PRS-ZE0630 Vibratory Compactor Set, 220-240 V 50 Hz

PRS-ZE0750 CBR Type Mould BS (modified proctor) Vibrating Hammer Mould EN

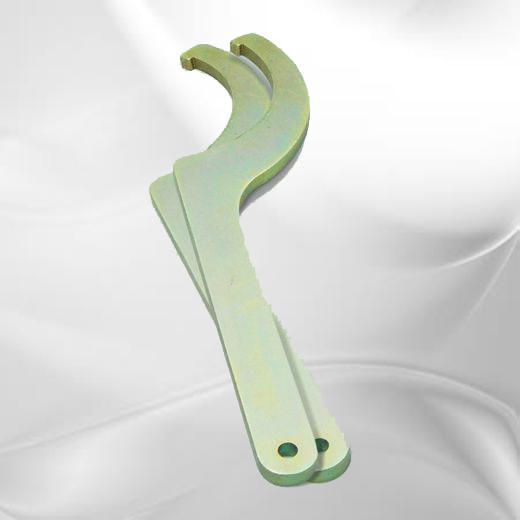

PRS-ZE0768 C Spanner for PRS-ZE0750, 2 pcs

PRS-ZE0770 Assembly Tool for Base Plate for PRS-ZE0750

The PRS-ZE0750 Vibratory Compactor Set is used to prepare the test specimens of road base and sub base materials by using the vibratory compaction technique.

The specimens prepared from road base and sub base materials is used for the proctor and CBR tests.

The set is also used for preparing the test specimens of bituminous mixtures

PRS-ZE0750 mould with base plate and extension collar should be ordered separately and also when ordering PRS-ZE0750, PRS-ZE0768 and PRS-ZE0770 should be ordered separately for assembling and dissambling.

The Vibratory Compactor Set is supplied complete with;

• Vibrating Hammer

• Supporting Frame

• Small Tamping Foot, 102 mm dia.

• Large Tamping Foot, 146 mm dia.
• Shank, 300 mm
