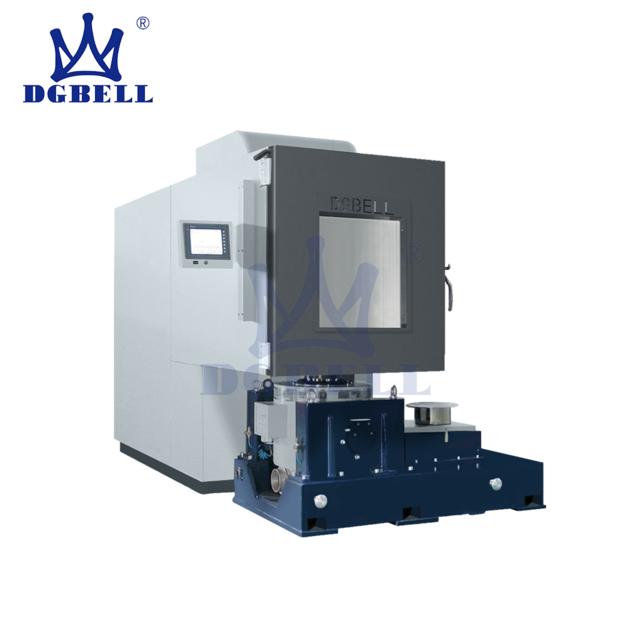

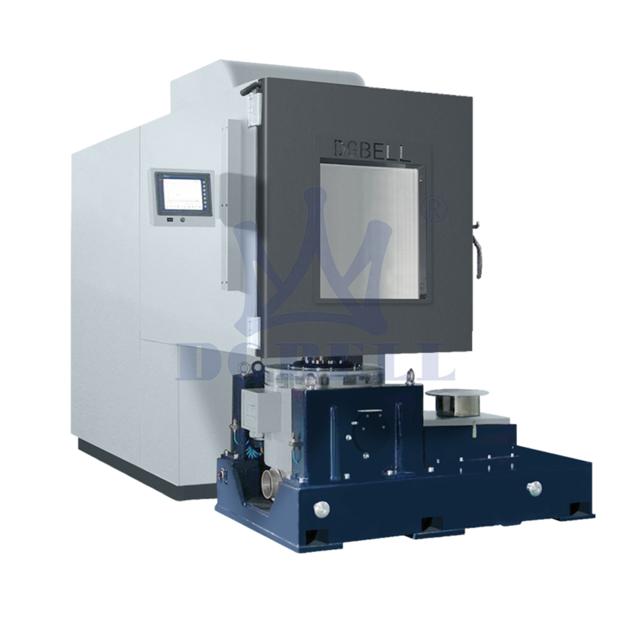

Vibration Test with Temperature Humidity Environmental Testing Machine

General Intraduction
This equipment complied with national standard, able to satisfy special testing
requirements ,is widely applied for electronic and electric products,
automotive parts ,components and materials by high low constant temperature
,temperature change, shock, damp heat vibration etc combined environment
simulation reliability test.

Standard Compliance
1.Manufacturing standard :
GB/T10586-2006 Specifications for damp heat chambers
GB/T10592-1989 Specification for low/high temperature test chambers

2. Inspection Standard :
GB/T5170.2-1996 Inspection methods for basic parameters of environmental
testing equipments for electric and electronic products. Temperature testing
equipments;
GB/T5170.5-1996 Inspection on methods for basic parameters of environmental
testing equipments for electric and electronic products--Damp heat testing
equipments

3.Testing Standard Compliance :
GB2423.1-2008(IEC68-2-1)Environmental testing - Part 2: Test methods - Tests A:
Cold
GB2423.2-2008(IEC68-2-2)Environmental testing for electric and electronic
products Test methods - Tests B:Dry Heat
GB2423.3-2006(IEC68-2-3)Environmental testing for electric and electronic
products - Part 2: Testing method test Cab: Damp heat Steady state
GB2423.4-2008(IEC68-2-30)Environmental testing for electric and electronic
products - Part 2: Test method - Test Db: Damp heat,cyclic ( 12h+12h cycle)
GB2423.22-2008(IEC68-2-14)Environmental testing for electric and electronic
products-Part 2:Test methods-Test N:Change of temperature
GJB150.3A-2009(MIL-STD-810D) High temperature test
GJB150.4A-2009(MIL-STD-810D) Low temperature test
GJB150.9A-2009(MIL-STD-810D) Damp heat test

Specification
Model No.
Internal Dimension (mm)
External Dimension (mm)
BTHZ-408
W600*H850*D800
W850*H1650*D , 1500
BTHZ-800
W1000*H1000*D800
W1250*H175 , 0*D1600
BTHZ-1000
W1000*H1000*D1000
W1250 , *H1750*D1800

Technical Parameters
Temp. Range
B:-20~150℃ C:-40~150℃ D:-70~150℃
Humidity Range
20-98%RH
Temp. Fluctuation
≤¯0.5℃
Temp. Deviation
≤¯2℃
Temp. Uniformity
≤¯2℃
Humidity Fluctuation
≤¯2.5%RH
Humidity Deviation
Temperature 75%RH: ≤+2,-3%RH;Humidity 75%RH: ≤¯5%RH

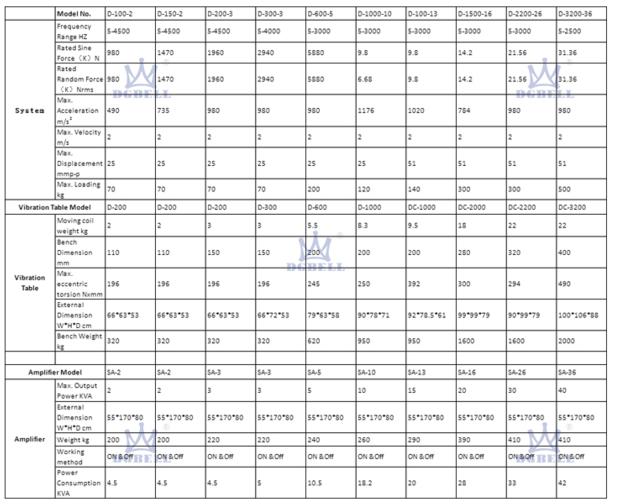

Vibration table configuration
Air-cooling series electrical vibration system
Water-cooling series electrical cooling system
Digital random vibration controller
Digital sine vibration controller

Moving method
High low temperature (damp heat) test chamber with slide rail
Match with vibration table via moving high low temperature (damp heat)test
chamber on slide raiL
Vibration table with slide rail
Match with high low temperature (damp heat)test chamber via vibration table
moving on slide rail.

Connection Method
Adopt connecting shaft connection method (match with vertical vibration)
Vibration table get into the chamber via connecting shaft ,match with the test
chamber to reach combined testing effects .
Vertical, horizontal combined vibration ,can customize design

Features
With high precision perfect external design, external with double sides cold
rolled plate electrostatic powder coated material, internal with SUS#304 high
temperature resistant stainless steel. Insulation material adopt fire resistant
high strength PU polyurethane foaming thermal insulating material. More than
20% energy saving is achieved &thanks to the introducing of Japan & German
advanced refrigerator control technology. Control system and control circuit
components all introduced with famous brand.
