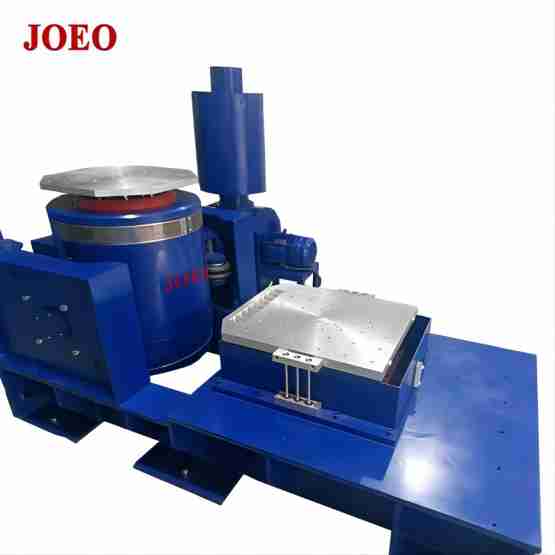

Vibration Test Machine 1kn to 70kn Electrodynamic Vibration Shaker(Air-Cooling Shaker)
Price: | US$ 10000 / Pack |
---|---|
Minimum Order: | 1 |
Payment Terms: | TT |
Port of Export: | shenzhen |
Product Details
Model No.: | GS-1033 | Brand Name: | JOEO |
---|
Certification: | CE |
---|---|
Specification: |
Sinusoidal excitation force range: 1kN ~ 70kN Support 2-times-sine shock force (3 times customized) JOEO electrodynamic vibration shaker design with Random to sinusoidal excitation force ratio 1:1 Displacement peak-to-peak value of 25mm, 40mm; 51 mm, 76mm or 100mm Vibration slip table is completely air-cooled |
Packaging & Delivery
Packaging: | wooden box package |
---|---|
Delivery/Lead Time: | 7-20 working days |
Production Capacity: | 200 units/month |
Product Description
JOEO electrodynamic shaker (Air-Cooling have random sinusoidal force ratings from 1kN to 70kn and maximum payloads from 70kg to up to 1000kg. All vibration test system can be mounted on a single integrated base with a slip table to meet customers test conditional demanding for vibration table testing.If you need more models about our test equipment, please reference our chamber-testing(.)com
JOEO ALI testing also provides turn-key solutions including combined climatic test chamber, head expanders and fixtures meet your test requirements.
Air-cooling electrodynamic shaker are used to test a wide range of products in a variety of industries. Typical test applications include the development and screening of electronic hardware, such as relays, circuit boards,power supplies,monitors, filters,transmitters,disk drives, receivers, portable computers, CD drives,cellular phones, printers, pagers, other computer and communications products. In the automotive industry, those electrodynamic shaker (Air-Cooling) type is used to test components such as alternators, starters, batteries, instrument packs, ignition switches, engines, and suspension components.
FEATURE
Sinusoidal excitation force range: 1kN ~ 70kN
Random to sinusoidal excitation force ratio 1:1
2-times-sine shock force (2 times accept customzied)
Can be completed in X, Y, Z three-axis sinusoidal vibration test and broadband random vibration tests
Be completed by the classical (half - sine, trapezoidal, sawtooth wave) pulse and shock response spectrum test
Displacement peak-to-peak value of 25mm, 40mm; 51 mm, 76mm or 100mm
Lightweight armature with optimized design and good vibration-resistant performance with excellent vibration isolation with the air spring at the trunnion position
High weight bearing capacity of center air spring support and good low-frequency performance
Equipped with an automatic centering system, to ensure the armature is always in a balanced position during movement
Double magnetic circuit design with low flux leakage and uniform magnetic field
Sine, Random and Shock etc. test function capabilities
Perfect cooling effect and low-noise blower
Vibration Test Machine 1kn to 70kn's Control System or Oscillator Required:
In addition to the compact vibration generator and power amplifier unit, a vibration control system or function generator, accelerometer and charge amplifier may be required for your application. An optional oscillator is available for the power amplifier unit. As for details, please contact our sales department.
